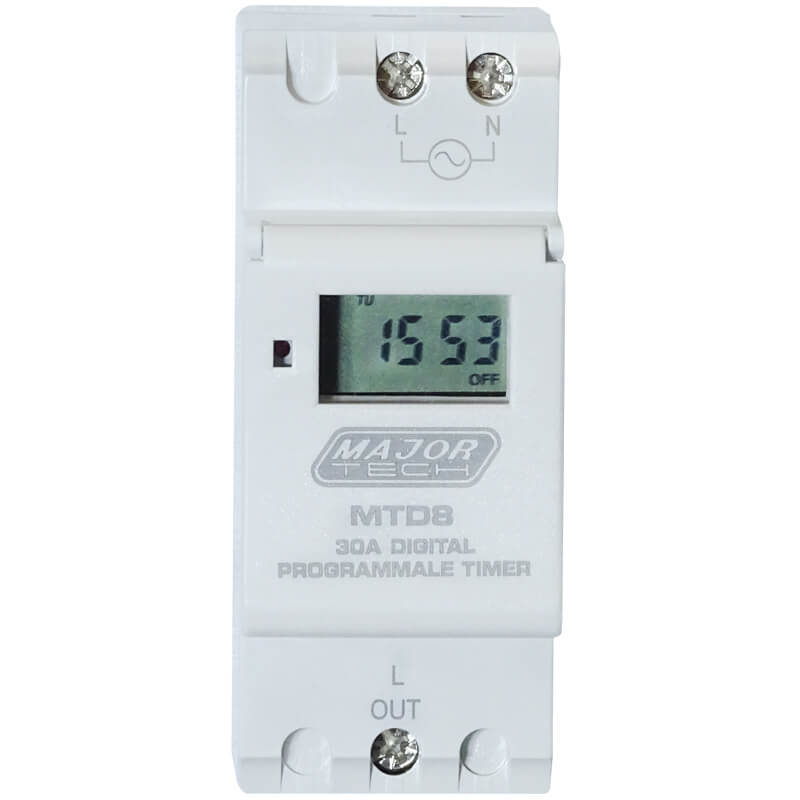

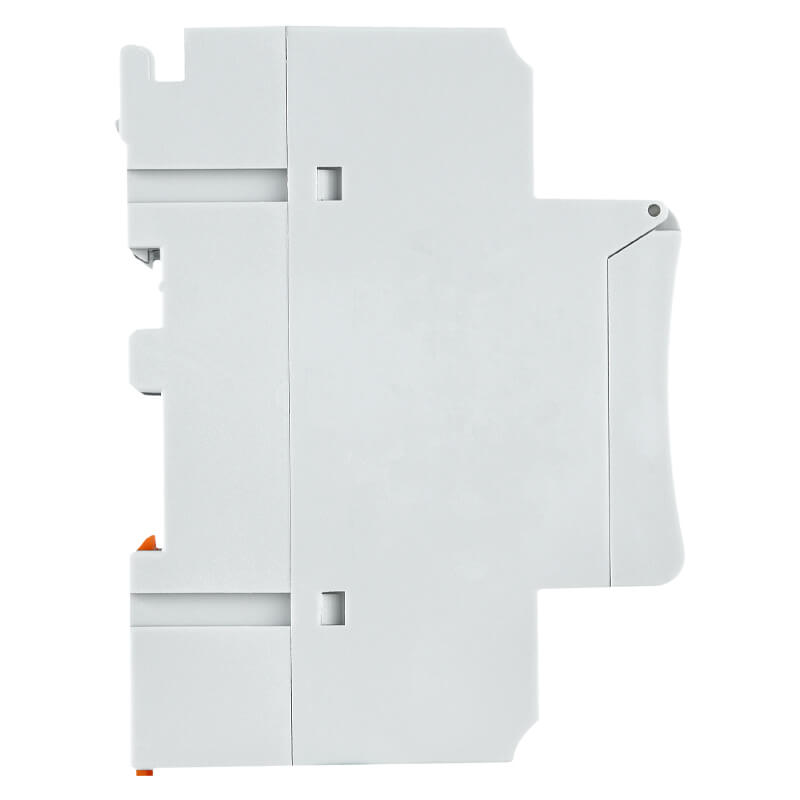

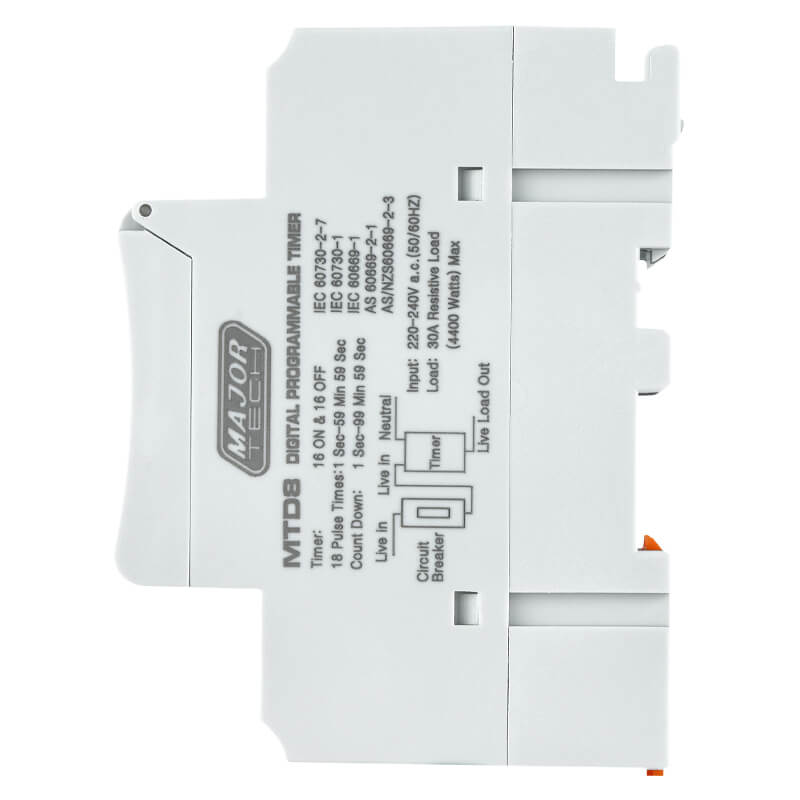

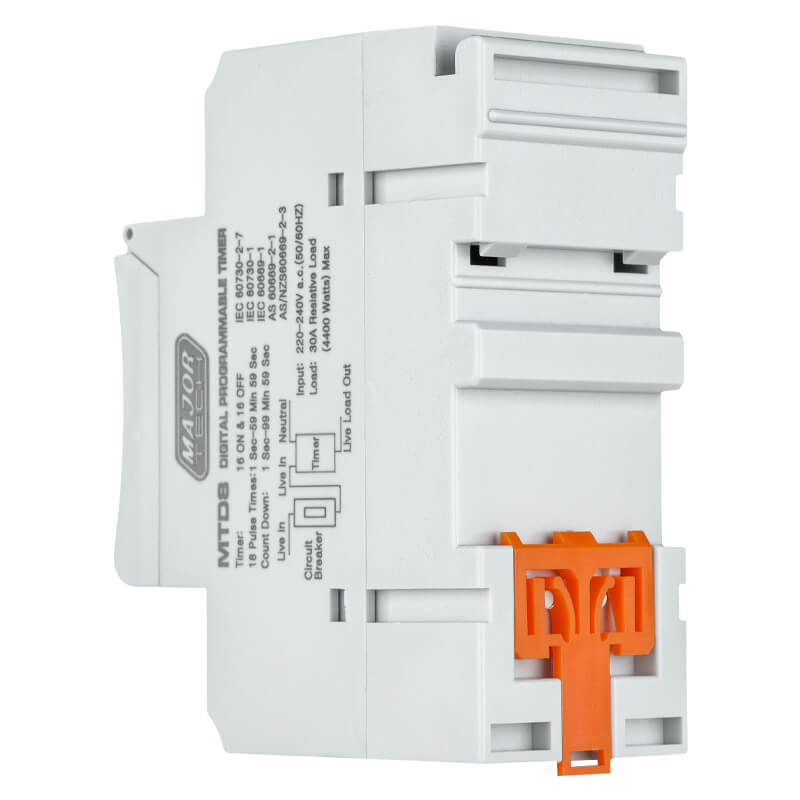

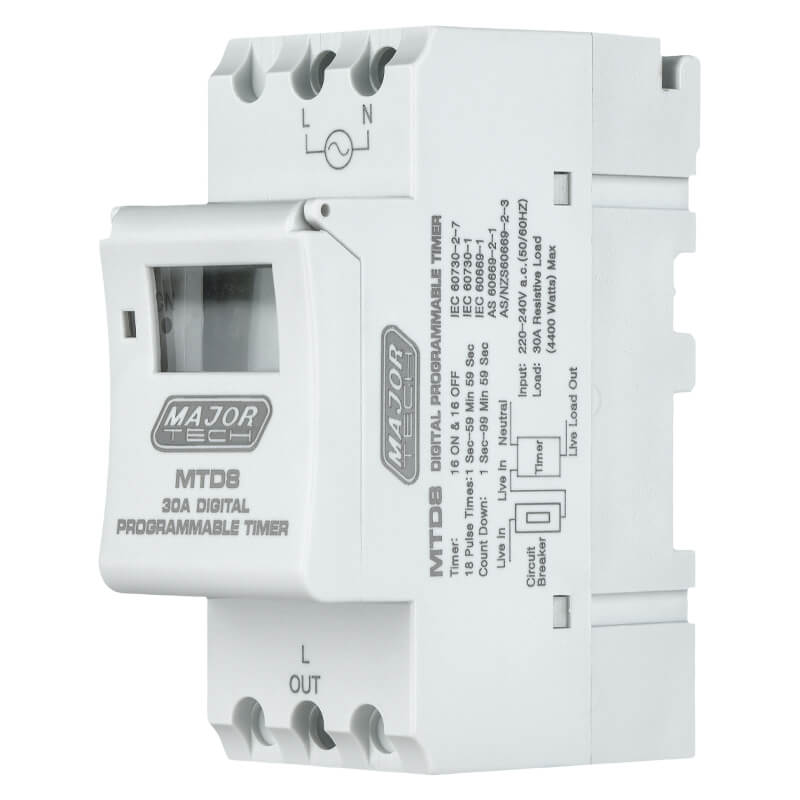

Digital Programmable Timer

SKU: MTD8

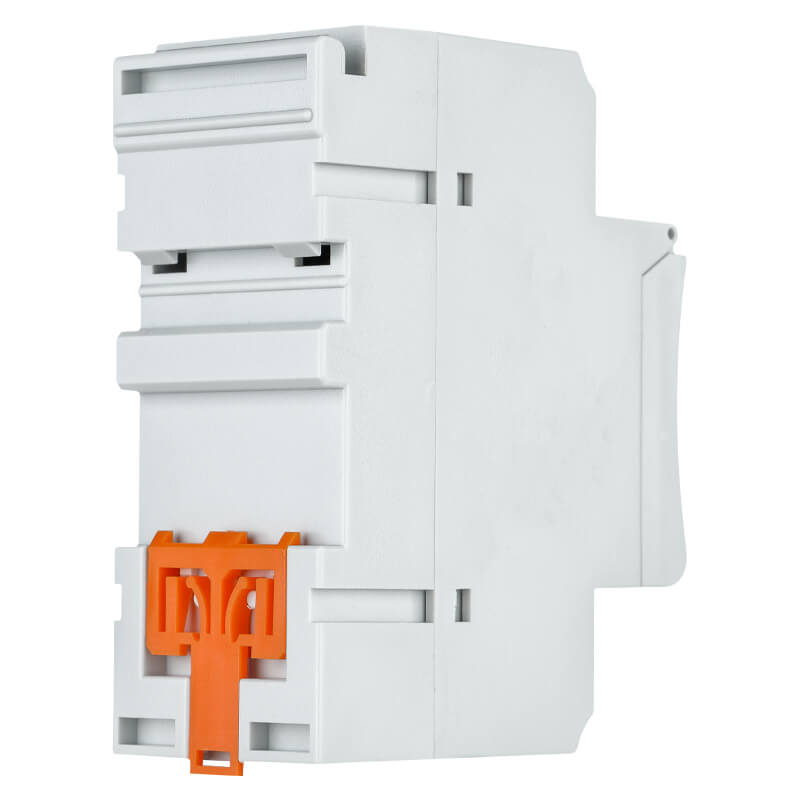

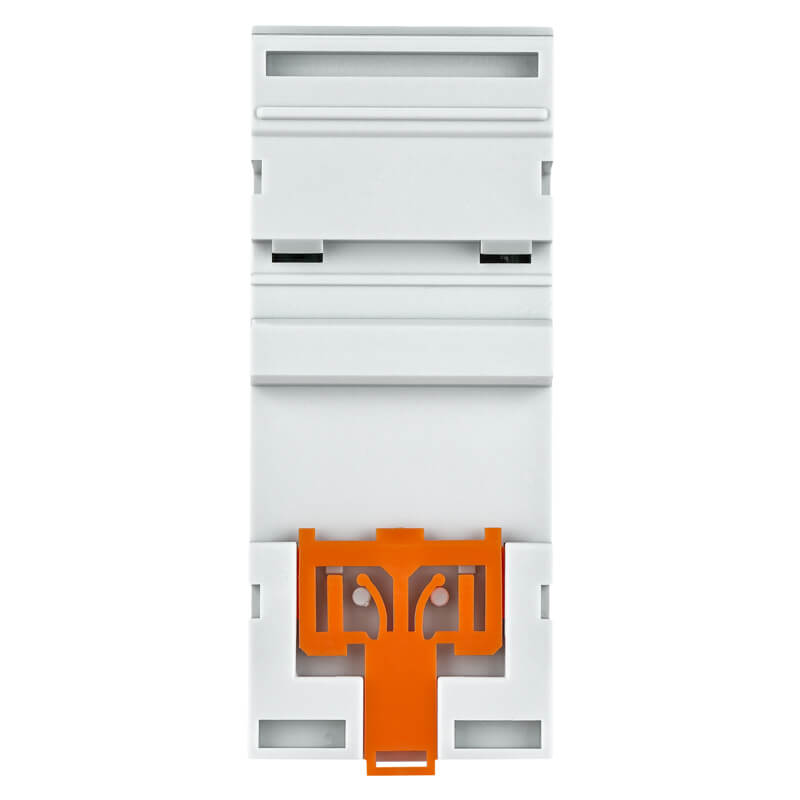

  • Din Rail and Samite Rail Mounted
  • Advanced weekly settings
  • Repeat programs with 16 ON/OFF settings, 18 pulse settings, and a manual ON/OFF switch
  • Lithium battery back up in the event of a power failure

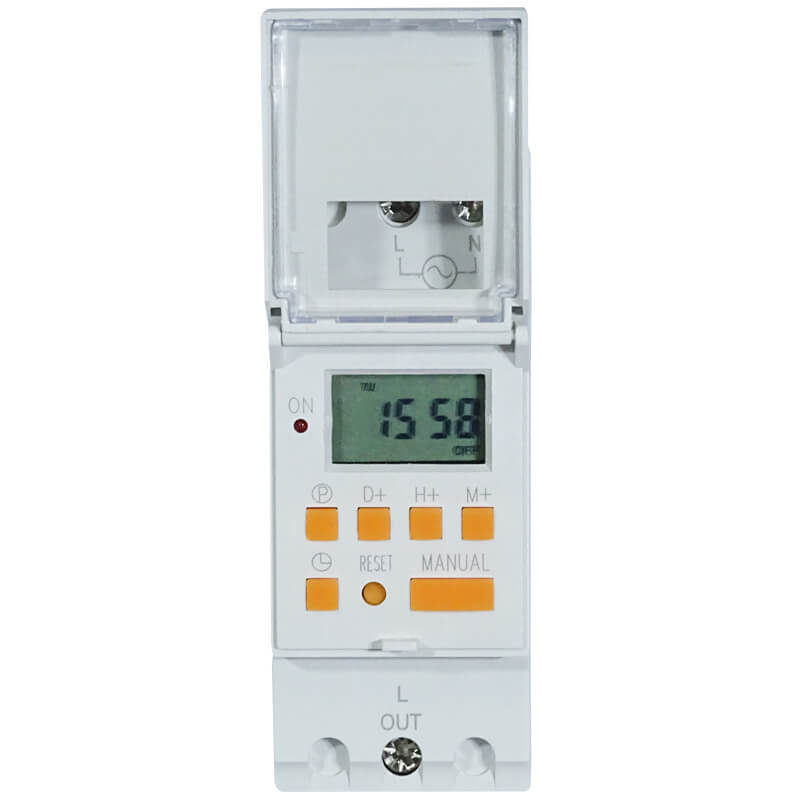

  • MANUAL button changes between Manual ON/OFF, ON AUTO and AUTO OFF
  • Terminology: ON (Always ON), OFF (Always OFF), AUTO ON (Timer remains ON until the next OFF programmed setting) / AUTO OFF (Timer remains OFF until next programmed ON setting and turns OFF as per programmed OFF settings)
  • AUTO OFF – Automatically turns the timer ON and OFF as per the programmed settings
  • While programming any function, 30 seconds of inactivity will exit all setting menu

*NOTE: Press Reset Button to activate timer (only required when first installed).

R 369.00 ex. VAT R 424.35 in. VAT
Add to Cart

Details

The MTD8 is a 30A 16 On/Off Digital Programmable Timer that is easy-to-use, quick to set and will maximize your savings. When installing the MTD8 for the first time, press the reset button to activate the timer.

The introduction of a timer will improve your energy savings up to 66%. Switching the geyser off/on manually is not good practice as circuit breakers are not designed to be switched often and will eventually damage which can be costly to replace.

Specifications:

Function Range
Voltage Rating 220V – 240V AC 50/60Hz
Voltage Limit ±10%
Resistive Loads (Max) 30A (4400W)
Minimum Interval 1 minute
Countdown Interval 1 second – 99 minutes & 59 seconds
18 Pulse Intervals 1 second – 59 minutes & 59 seconds
Ambient temperature -10°C ~ 40°C
Ambient Humidity 35%RH ~ 85%RH
Weight 150g
Certification IEC60730-1, IEC60730-2-7
