Compact True RMS Auto Ranging Multimeter

SKU: MTD84

  • 6000 count with backlit LCD display
  • Smart Mode automatically identifies DCV, ACV, Resistance and continuity
  • Measures DC voltage up to 1000V and AC voltage to 750V
  • Temperature measurement from -20⁰C to 1000⁰C
  • Capacitance to 10mF
  • Frequency to 10MHz
  • Duty Cycle
  • REL mode and Data Hold
  • Auto Power Off
  • NCV – Non-Contact Voltage Detector

R 640.00 ex. VAT R 736.00 in. VAT
Add to Cart

Details

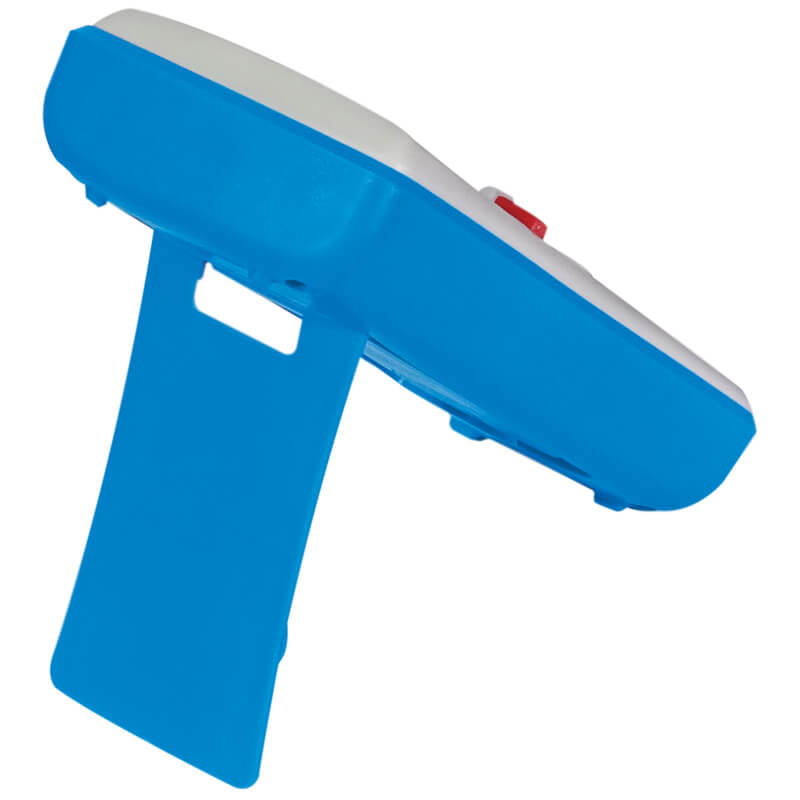

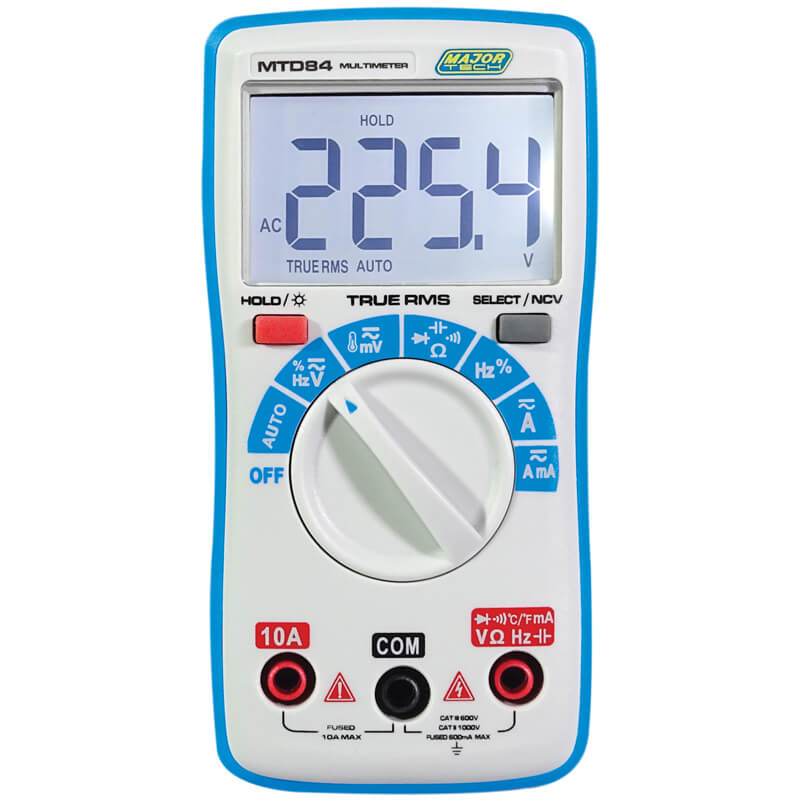

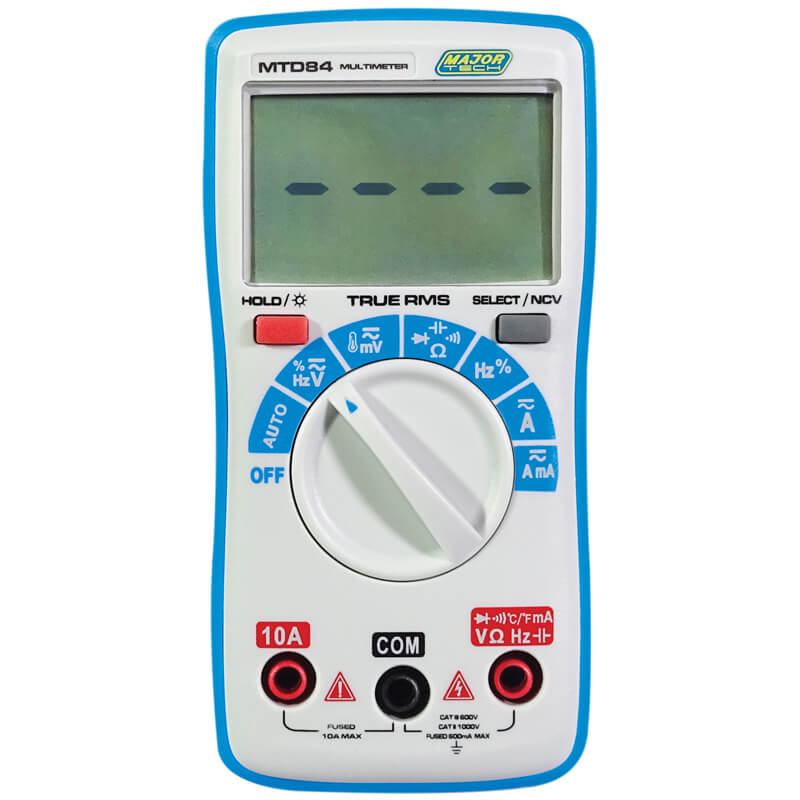

The MTD84 is a Compact True RMS Auto Ranging Multimeter with a 6000 count LCD backlit display. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.

Specifications:

Function Range Resolution Accuracy
DC Voltage 0.01mV - 1000V 0.01mV ± (0.5% + 3 Digits)
AC Voltage 0.01mV - 750V 0.01mV ± (1.0% + 3 Digits)
DC Current 0.01mA-10.00A 0.001A ± (1.2% + 3 Digits)
AC Current 0.01mA-10.00A 0.0001A ± (1.5% + 3 Digits)
Duty Cycle 1% - 99% 0.1% ± (0.1% + 2 Digits)
Resistance 0.1Ω - 60.00MΩ 0.001MΩ ± (0.5% + 3 Digits)
Frequency 0.01Hz - 10MHz 0.01Hz ± (0.1% + 2 Digits)
Capacitance 0.001nF-9.999mF 0.001nF  ± (2.0% + 5 Digits)
Temperature  -20 - 1000°C 1° C ± (2.5% + 5 Digits)
TRMS Measurements Yes
Continuity Yes
Built-in buzzer Yes
Diode test Yes
AC Bandwidth  50Hz to 400Hz
Digital Display LCD 6000 count
Overrange indication Yes
Data Hold Yes
Back Light Yes
Back Light Yes
Enclosure ABS/PVC
Power source 2 x 1.5V AAA battery
Weight  138g (incl battery)
Dimensions 130 x 65 x 32mm
Safety Specs CatIII 600V

Safety Rating

Accessories:

  • Soft Carrying Case
  • Test Leads
  • Wire Probe
  • 2 x AAA Batteries
  • Instruction Manual
