12 000lm/100w UFO High-Bay

SKU: EHB10NW

  • Standards: IEC 60598-1, IEC 60598-2-1, AS/NZS 60598.1, AS/NZS 60598.2.1, CISPR 15, SANS 475, AS/NZS 4417
  • Approvals: C-Tick, SAA, RCM, LOA
  • Ingress Protection: IP65
  • Voltage: 180 to 265V AC
  • Surge Protection: 4kV
  • Material: Heavy Duty Die-Cast Aluminum + Polycarbonate Lens
  • High Quality SMD 2835 LED Chips
  • Beam Angle: 90°
  • Secure Hook and Chain for Safe Ceiling Suspension
  • Power Factor: >0.9
  • CRI: >70Ra
  • Colour Temperature: 5000K Neutral White

R 764.00 ex. VAT R 955.00 R 878.60 in. VAT

Details

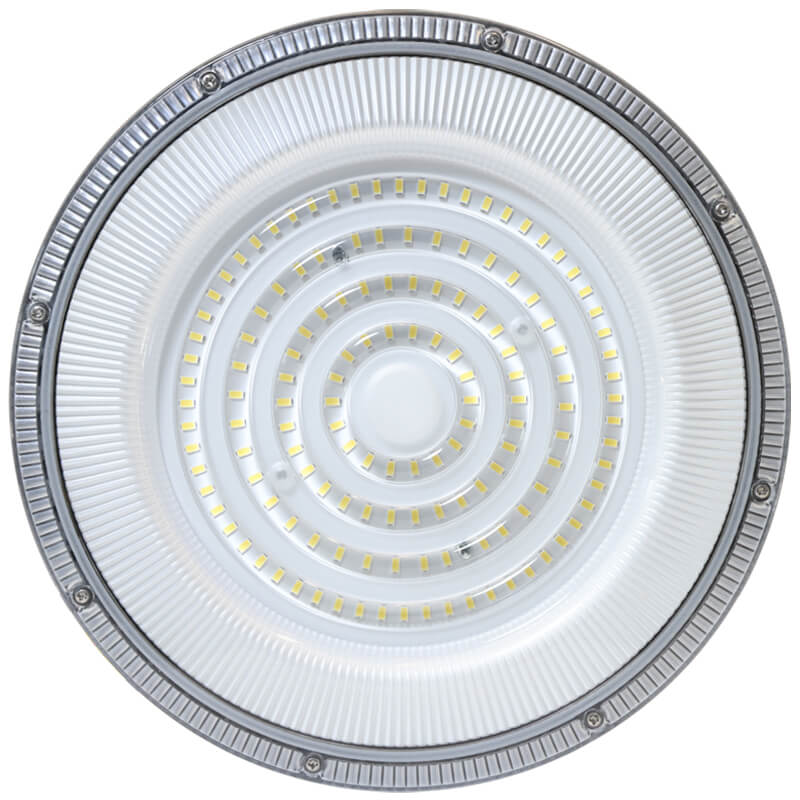

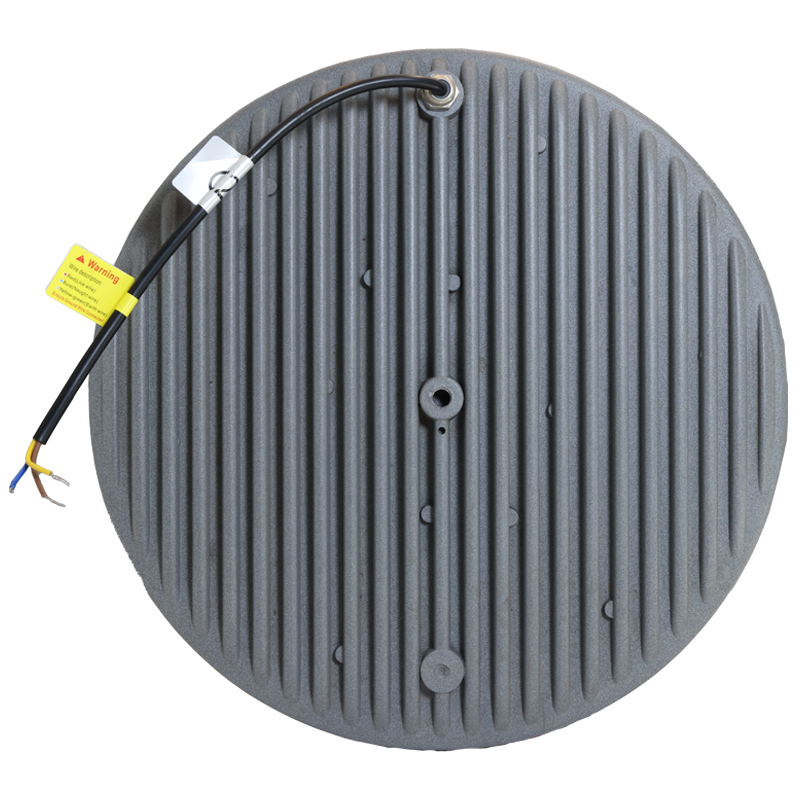

The EHB Series are ultra-slim UFO LED High-bays with a modern design, featuring a die-cast aluminium body that ensures effective heat dissipation. These high-performance light fittings provide a bright output of up to 48000 lumens, powered by energy-efficient SMD 2835 LED chips and a reliable DOB (Driver on Board) system. With a colour temperature of 5000K and a 90° beam angle, this range offers efficient and even light distribution, making it ideal for industrial and commercial applications. The fixtures operate within a voltage range of 180-265V AC and have a luminous efficacy of 120Im/W, ensuring optimal energy performance. The EHB Range also boasts a power factor of >0.9 and an IP65 rating for dust and water resistance, making it suitable for harsh environments. The EHB Range is easy to install with a suspension hook and a chain included for convenient mounting. This robust lighting solution is built to last offering peace of mind for long-term use.

Specifications:

Function

Range

LED Power

100W

Lumen Output

12 000lm

Lumen Efficiency

120lm/W

LED Chip Type

SMD2835

Colour Temperature

5000K – Neutral White

Beam Angle

90°

Rated Voltage

220 – 240V

Voltage Range

85 – 240V

Frequency

50/60Hz

Power Factor

>0.9

Driver Type

DOB (Driver on Board)

CRI

>70

IP Rating

IP65

Material

Body: Die-Cast Aluminium

Lens: PC

Mounting Method

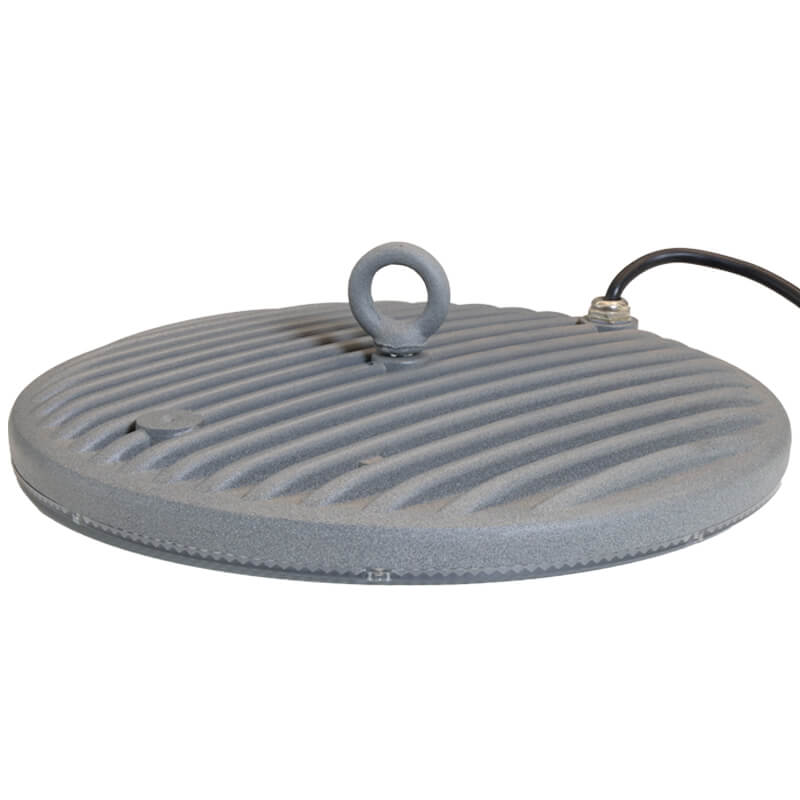

Suspension Hook and 30cm Chain (Included)

Integrated Cable Length

Africa: 50cm

Australasia: 150cm & Plug Top

Surge Protection

4kV

Installation Height

4m – 5m

Dimensions

Ø302 x 34mm

Weight

Africa: 1.35kg

Australasia: 1.85kg

Warranty

Accessories:

  • 30cm Suspension Chain
