Phase Rotation Meter

SKU: MT930

  • CAT IV 300V and CAT III 600V
  • Large LCD Display
  • Phase rotation indication
  • 3-Phase Indication
  • Checks phase sequence and open phase simultaneously
  • Double injection rubber housing
  • Small lightweight and portable
  • Can measure a wide range of 3-phase power source from 40V to 850V AC
  • Large size crocodile clips

R 1 585.00 ex. VAT R 1 822.75 in. VAT
Add to Cart

Details

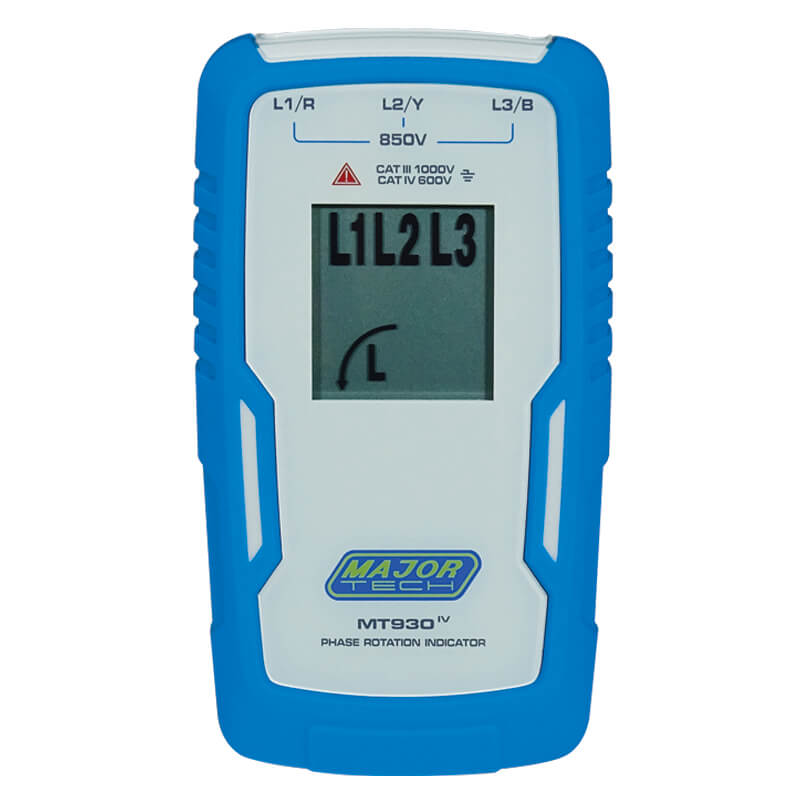

The MT930 is a sleek and portable Phase Rotation indicator designed for convenience. Featuring a spacious LCD display, it provides clear and precise indications of phase presence and rotation. When connected to a 3-phase power system, this meter efficiently displays the phase sequence through corresponding symbols on its LCD screen, accompanied by arrows indicating clockwise or anti-clockwise direction for rotation. The MT930 operates seamlessly within a voltage range of 40V AC to 850V AC. Encased in a modern IP40 double moulded rubber housing, it boasts a sturdy and rugged design, making it ideal for heavy-duty usage.

Specifications:

Function Range
AC Voltage 40 – 850V
Clamp Diameter Range 20mm
Detection Method LCD Display
Measuring Frequency 15 – 400Hz
Phase Rotation Clock or Anti clock
Visual Indication LCD Indication
Colours Red, Yellow Blue
Casing Over Moulded case
Weight 130g
Dimensions 130 x 69 x 32mm
Safety Specs IEC61010-1 CAT III 600V

Safety Rating

Accessories:

  • Set of large sized croc clips
  • Instruction Manual
