Intrinsically Safe MT1881

SKU: MT1881IS

  • Intrinsically Safe Version
  • NCV detection above 110V AC, LCD turns red to indicate presence of voltage

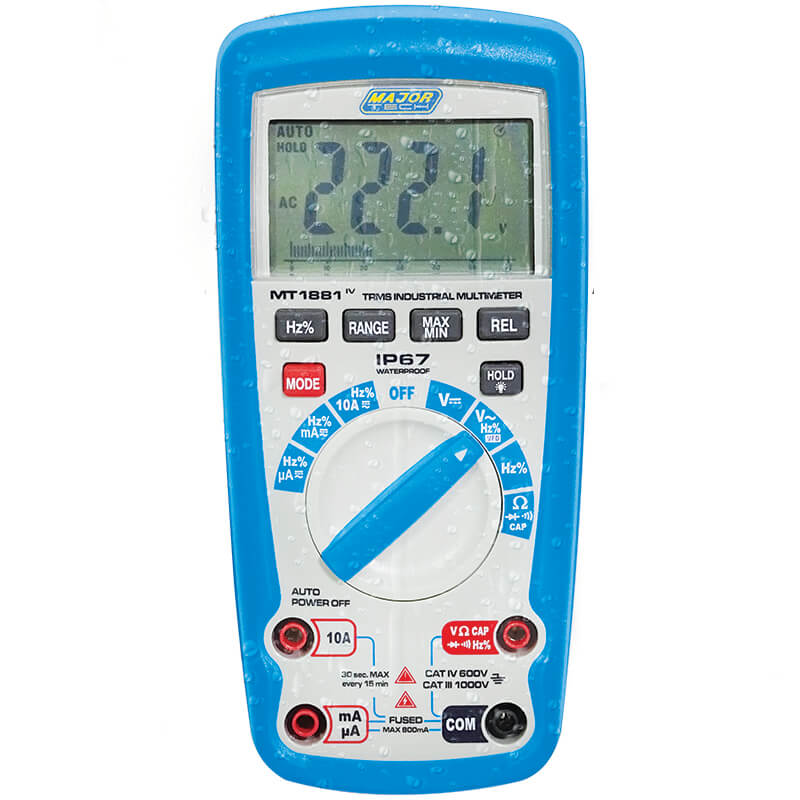

  • IP67 Dust & waterproof with O-ring sealed casing
  • Auto range with manual override
  • Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
  • Measures AC and DC voltage to 1000V
  • Capacitance to 4000μF / Relative mode / Data hold
  • MIN/MAX recording mode
  • 6000 Count LCD display and equipped with a 61 segment analogue bargraph
  •  Full ranges protection & Auto power off
  • Overmould rubber housing & Integrated test lead holder

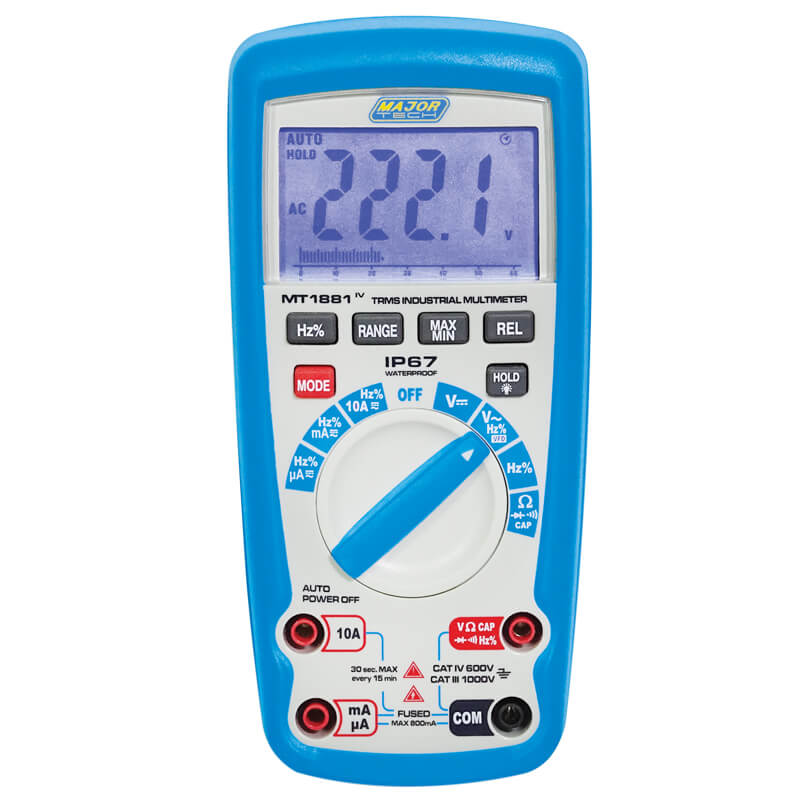

  • Blue backlight for dimly lit areas

R 3 510.00 ex. VAT R 4 036.50 in. VAT
Add to Cart

Details

The MT1881IS is an Intrinsically Safe 1000V AC/DC IP67 True RMS Multimeter that has a large 6000 count backlit LCD with a 61 segment analogue bar graph, especially designed for everyday use by electricians. Capable of measuring 1000V AC and DC, with added measuring ranges of Resistance, AC/DC Current, Capacitance and Frequency. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of less than 1000V AC/DC is applied to the meter, the meter will not get damaged. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Specifications:

Function Range Resolution Accuracy
DC voltage  600.0mV - 1000V  0.1mV ± (0.5% + 5 Digits)
AC voltage  6.000V - 1000V  1mV ± (0.8% + 4 Digits)
DC Current  600.0μA - 10A  0.1μA ± (1.0% + 3 Digits)
AC Current  600.0μA - 10A  0.1μA ± (1.5% + 3 Digits)
AC voltage (VFD)  50.0V - 600.0V  0.1V ± (4% + 9 Digits)
Duty Cycle  0.1 to 99.90%  0,10% ± (1.2% + 2 Digits)
Resistance  600.0Ω - 60.00MΩ  0.1Ω ± (0.8% + 2 Digits)
Frequency  9.999Hz - 9.999MHz  0.001Hz ± (1.0% + 4 Digits)
Capacitance  60.00nF - 60.00mF  0.01nF ± (4.0% + 5 Digits)
True RMS Measurements  Yes
AC Bandwidth   50Hz to 400Hz
Digital Display  6000
Bargraph  Yes
Continuity  Yes
Diode test  Yes
Non Contact Voltage (NCV)  Yes
Overrange indication  Yes
Input impedance  >10MΩ VDC & >9MΩ VAC
Min Max  Yes
Data Hold  Yes
Enclosure  Double moulded waterproof IP67
Low battery indication  Yes
Power source  6LF22
Weight  342g
Dimensions  187 x 81 x 50mm
Safety Specs  IEC61010-1 CatIV 600V

Safety Rating

Accessories:

  • 9V Battery
  • Test Leads
  • Instruction Manual
