Compact Digital Multimeter

SKU: MTD10

  • 8 Functions & 21 Versatile ranges
  • 3½ Inch Digital LCD screen
  • AC/DC Voltage to 500V
  • Measures DC Current to 10A
  • Resistance to 2MΩ
  • Transistor Test for NPN and PNP transistors
  • Diode Check, Continuity, Data Hold
  • 1.5V Battery Test
  • Backlit display
  • Overload Protection

R 295.00 ex. VAT R 339.25 in. VAT
Add to Cart

Details

The MTD10 is a compact 2000 count DIY digital multimeter and is designed as an ideal meter for general purpose use by electronic technicians, alarm installers, students, hobbyist and homeowners. The MTD10 measures AC and DC voltage to 500V, resistance to 2M Ohms, DC current to 10A, has a diode test function and continuity buzzer. The meter also offers the added convenience of a 1.5V battery test under load, a transistor test range, backlit display, data hold and a tilt stand. The meter meets the International standard IEC 61010-1 CAT II 600V / CAT III 300V. Supplied standard with a rubber holster, test leads and a 9V battery.

Specifications:

Function Range
DC Voltage 1V - 500V
AC Voltage 1V - 500V
DC Current 100mA - 10A
Resistance 0.1Ω - 2MΩ
Continuity Yes
Built-in buzzer Yes
Diode test Yes
Battery test Yes
Transistor Test PNP transistors Yes
AC Bandwidth  40Hz to 400Hz
Digital Display LCD 2000 count
Overrange indication Yes
Input impedance >10MΩ
Data Hold Yes
Back Light Yes
Back Light Yes
Power source 1 x 6F22
Weight  170g (including battery)
Dimensions 140 x 70.6 x 31mm
Safety Specs CAT II 600V

Safety Rating

Warranty

Accessories:

  • Test Leads
  • Rubber Holster
  • 9V Battery

Related

Products

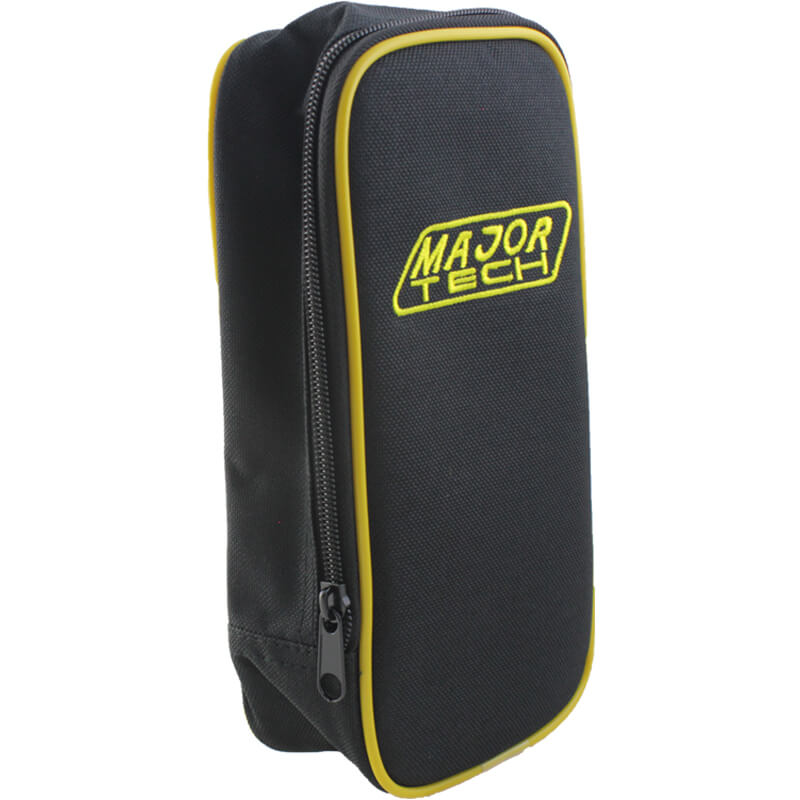

Digital Multimeter Carrying Case
