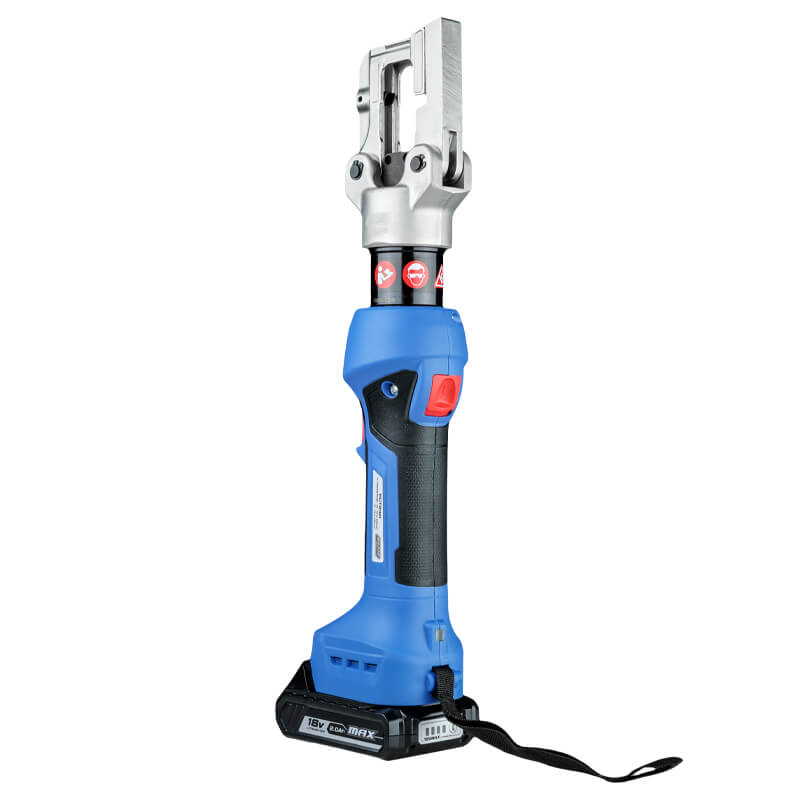

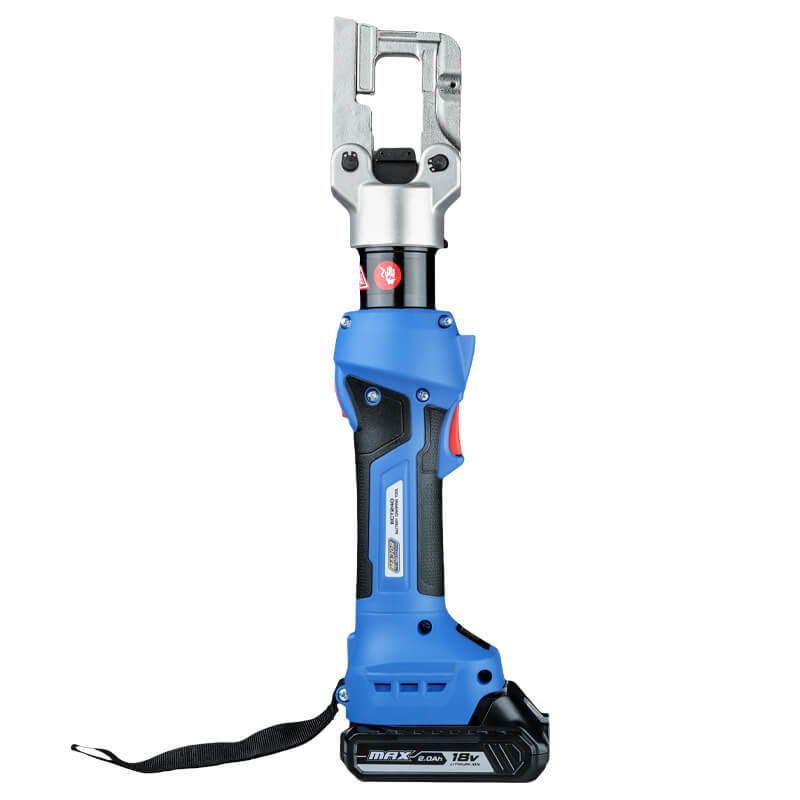

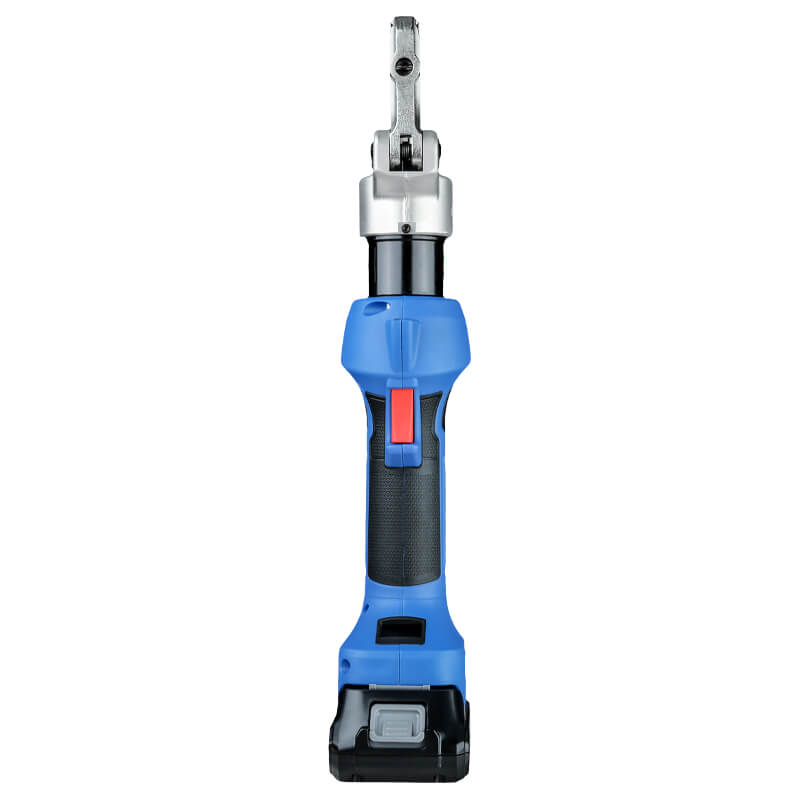

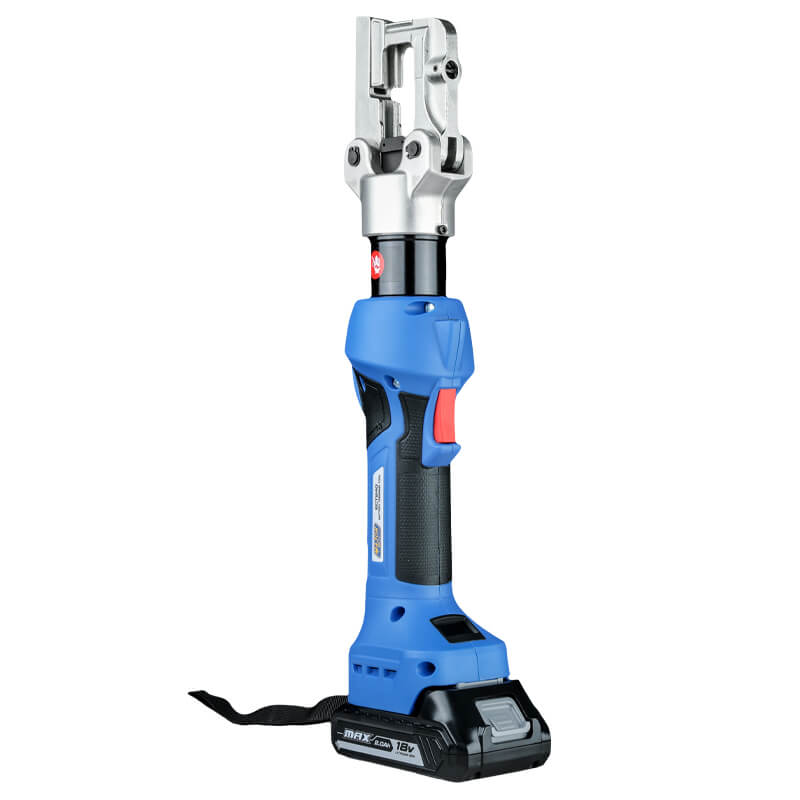

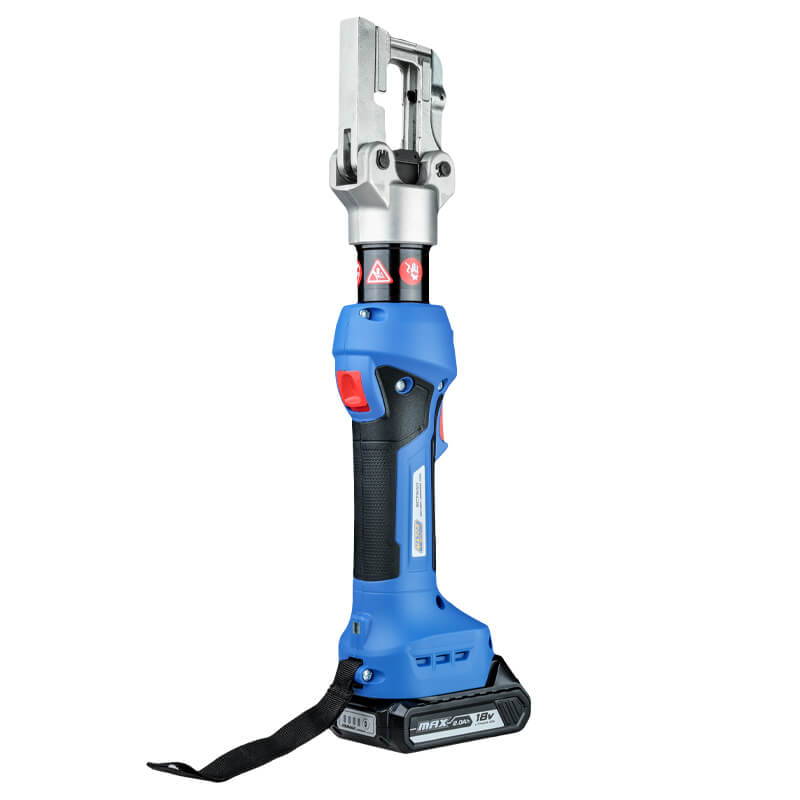

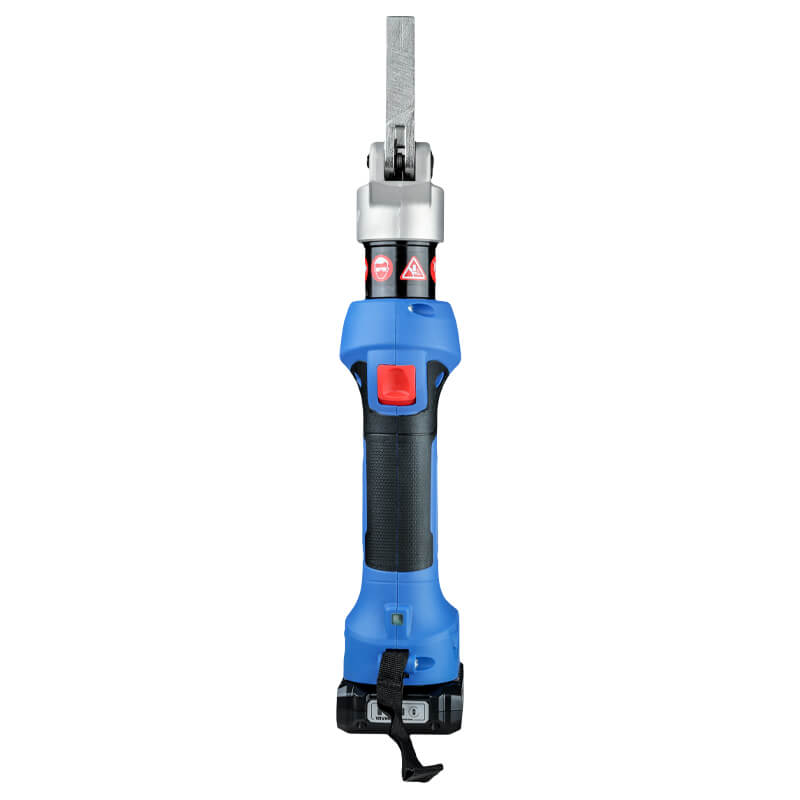

Battery Powered Crimping Tool

SKU: ECT400

OLED Display showing Crimping Time, Electricity Quantity, Maintenance Reminding and Fault Code

  • Crimping head rotates 350°
  • Two stage hydraulic system with fast feed and power control
  • Quick motor stop guarantees highest safety for the operator
  • Automatic retraction when crimp is completed
  • Electronic control and monitor of crimping operation
  • Ergonomic design and optimized position of center of gravity
  • Rated pressure: 120kN
  • Oil capacity: 160ml
  • Stroke: 42mm
  • 5 – 8 seconds per cycle time
  • Max crimping: Copper 400mm² / Aluminium 300mm²
  • **Please note: When selecting die sizes for copper and aluminium, you will use the same dies but reduce the size by one when switching from copper to aluminium. For example, if you are using a 240 mm² die for copper, you would use a 185 mm² die for aluminium.

R 38 300.00 ex. VAT R 44 045.00 in. VAT
Request a Quote

Details

The ECT400 is a Battery Powered Crimping Tool with an OLED Display showing Crimping Time, electricity Quantity, Maintenance Reminding and Fault Code. The ECT400 Crimping head rotates 350°, and has a two stage hydraulic system with fast feed and power control. The ECT400 also has an an automatic retraction function when the crimp is completed.

Specifications:

Function Range
Crimping Dies 16,25,35,50,70,95,120,150,185,240,300,400mm

Accessories:

  • 2x 4.0Ah Lithium Batteries
  • 1x Charger
  • 1x Carrying Case
  • Crimping Dies:
    • 16mm²,
    • 25mm²,
    • 35mm²,
    • 50mm²,
    • 70mm²,
    • 95mm²,
    • 120mm²,
    • 150mm²,
    • 185mm²,
    • 240mm²,
    • 300mm²,
    • 400mm²
