600V AC/DC True RMS Multimeter

SKU: MT870

  • CAT III 300V and CAT II 600V
  • Large 2000 count LCD display
  • Measures AC and DC voltage up to 600V
  • Measures AC and DC current up to 10A
  • Battery test for 1.5V and 9V batteries
  • Continuity Buzzer & Diode Test
  • Min, Max and Data Hold Function
  • Relative Mode
  • Auto Power Off
  • Tilt Stand

R 660.00 ex. VAT R 759.00 in. VAT

Details

The MT870 is a 600V AC/DC True RMS Multimeter supplied with a rubber holster designed to be robust and drop proof. The meter has a 2000 count large easy to read display and is an auto ranging multimeter with the option of manual override. Measuring functions include AC and DC voltage, AC and DC current, resistance, continuity buzzer and diode test range. The AC and DC micro Amp ranges is suited for electronic measurements. The MT870 also offers the added convenience of 1.5V and 9V battery tests and a tilt stand. This meter meets the International Standard IEC 61010-1 CAT III 300V. The meter offers excellent performance and is ideal as a handy multimeter for electronic technicians and electricians, alarm installers and students studying electronics.

Specifications:

Function Range Resolution Accuracy
DC Voltage 0.1mV – 600V 0.1mV ±(0.5% + 2 Digits)
AC Voltage 1mV – 600V 1mV ±(0.8% + 3 Digits)
DC Current 0.1μA – 10A 0.1μA ±(1.2% + 2 Digits)
AC Current 0.1μA – 10A 0.1μA ±(1.5% + 3 Digits)
Resistance 0.1Ω – 20MΩ 0.1Ω ±(1.0% + 2 Digits)
True RMS Measurements Yes
AC Bandwidth 40Hz to 2KHz
Digital Display 2000
Continuity Yes
Diode Test Yes
Overrange Indication Yes
Battery Test 1.5V & 9V
Input Impedance 10MΩ VDC & 10MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Rubber holster
Low Battery Indication Yes
Batteries 2 x AA
Dimensions 150 x 100 x 36mm
Safety Specs IEC61010-1 CAT II 600V

Safety Rating

Accessories:

  • Instruction Manual

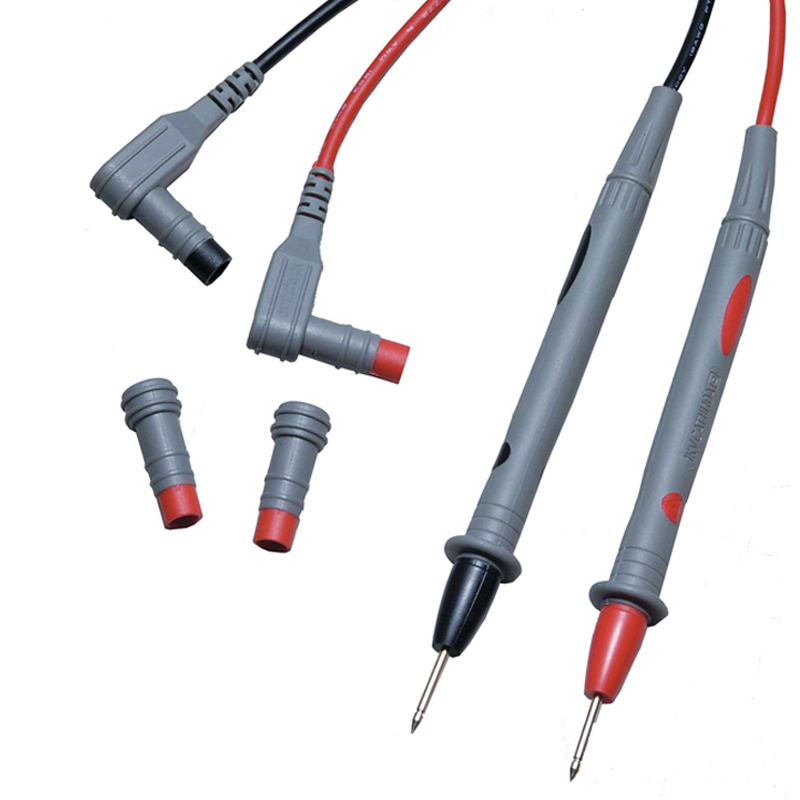

  • Test Leads

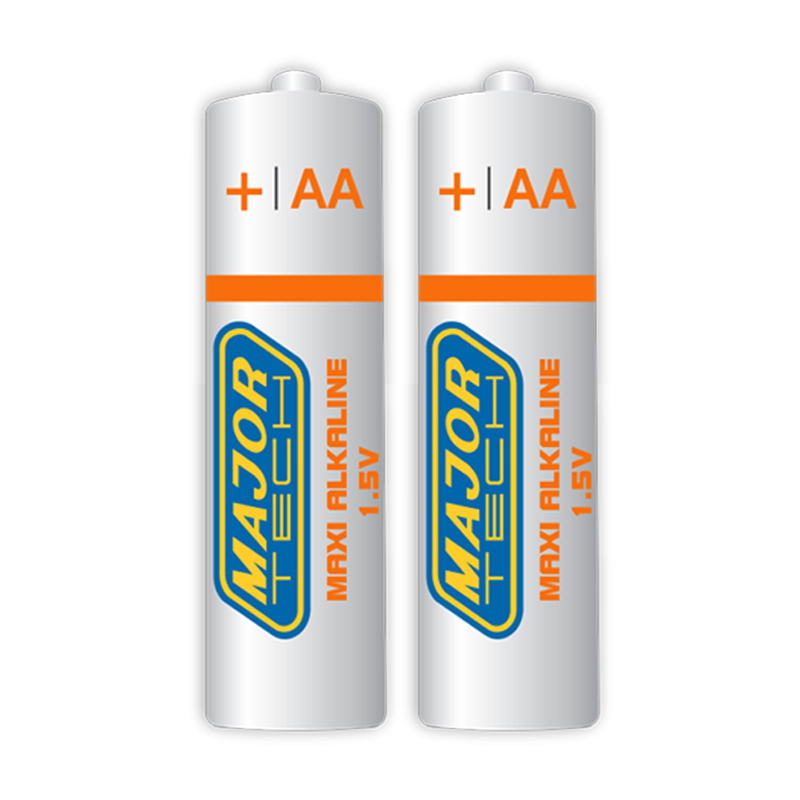

  • 2 x 1.5V AA Batteries
