250/500/1000V Digital Insulation Tester

SKU: K3007

  • Three test ranges 250V-500V-1000V
  • Auto null function
  • Trac-Lok mode to extend battery life by up to 400%
  • Automatic discharge after test
  • Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
  • Displays the value of external AC voltage along with flashing symbol and buzzer
  • Lock down Test Button for continuous use
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • EL Backlight for dimly lit areas

K3007IS Intrinsically safe version available

R 9 710.00 ex. VAT R 11 166.50 in. VAT
Add to Cart

Details

The K3007 is equipped with Trac Lok Circuits that improve battery life considerably, thus saving the user money. The K3007 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on
the display which enables readings to be taken in dimly lit areas. This meter offers an intrisically safe model on request.



Specifications:

Function Range Resolution Accuracy
AC voltage 0V - 600V 1V ± (5.0% + 3 Digits)
Resistance 20Ω - 2000Ω 0.01Ω ± (1.5%+ 5 Digits)
Insulation resistance 250V 250V 0 - 19.99MΩ ± (1.5% + 5 Digits)
Insulation resistance 500V 500V 0 - 199.9MΩ ± (1.5% + 5 Digits)
Insulation resistance 1000V 1000V 0 - 1999MΩ ± (10% + 3 Digits)
Short circuit current 1.5mA
Overrange indication Yes
Digital Display LCD Display
Continuity Yes
Trac loc Yes
Auto discharge Yes
Bargraph Yes
Back Light Yes
Enclosure Moulded case IP54
Low battery indication Yes
Power source 6 x R6
Weight  900g
Dimensions 185 x 167 x 89mm
Safety Specs IEC61010-1 CatIII 300V

Safety Rating

Warranty

Accessories:

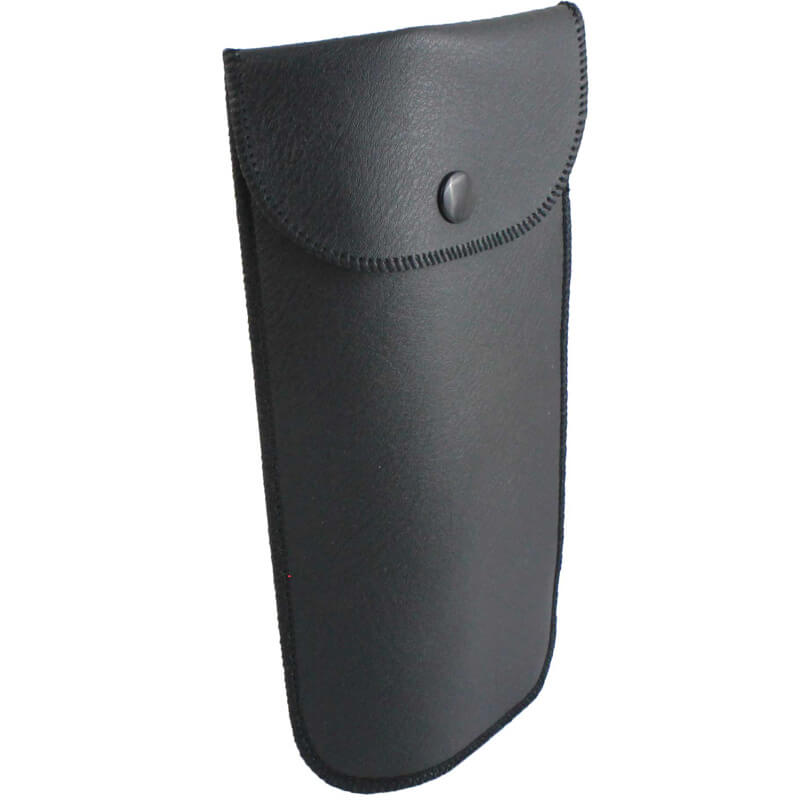

  • Pouch for leads
  • AA batteries

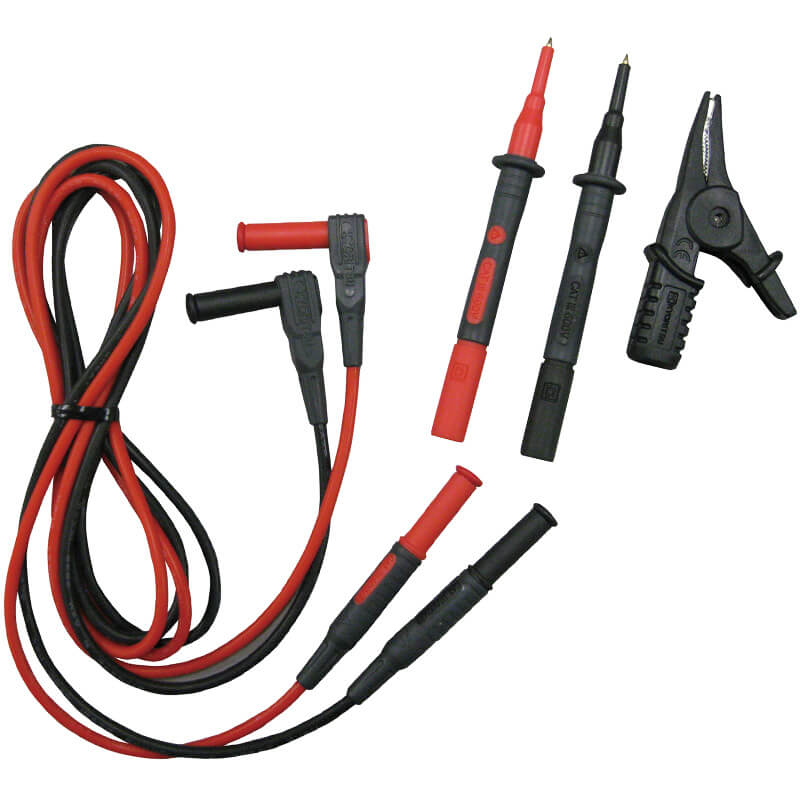

  • Test leads
  • Instruction Manual
  • Strap
  • COC
