100A Professional AC/DC Open Jaw Clamp Meter

SKU: K2300R

1049 count negative LCD display
Open Jaw Sensor
Ø10mm Cable Clamp size
Measures DC Current and AC Current up to 100A
NCV – Non-Contact Voltage Detector
Microprocessor DCA Zero
Data Hold function
Auto Power Off
CAT III 300V and CAT II 600V

Quantity

R 3 130.00 ex. VAT R 3 599.50 in. VAT

Add to Cart

Add to wishlist

Details

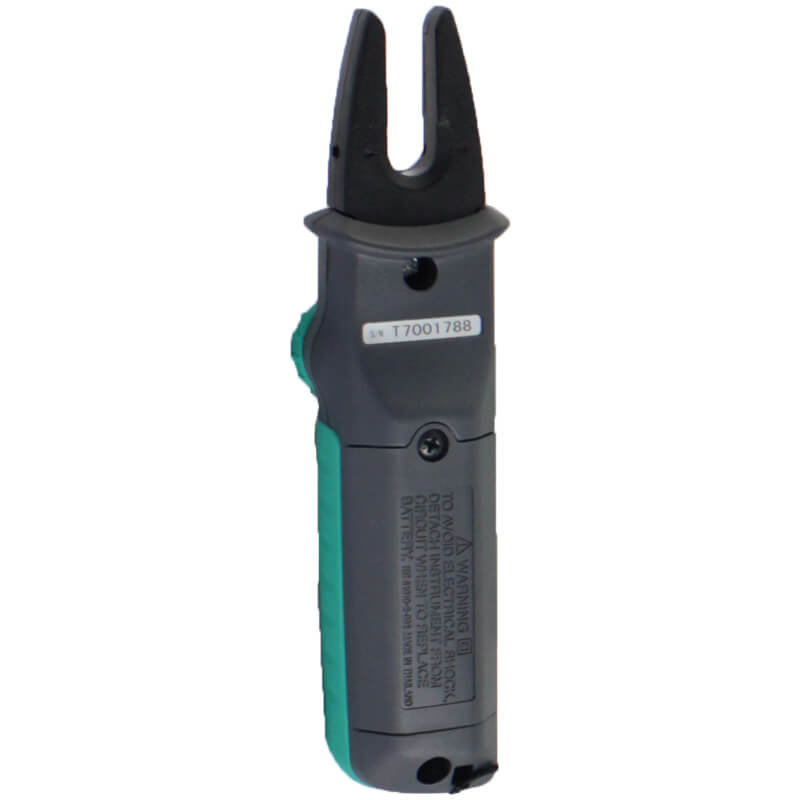

The K2300R is a CAT III 300V, 1049 count True RMS 100A AC/DC digital clamp meter, with a clamp jaw opening of 10mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. The meter has a Non-Contact Voltage detection, diode and is housed in a rugged design for heavy duty use.

Specifications:

Function	Range	Resolution	Accuracy
DC Current	0.1A - 100A	0.1A	± (2.0% + 5 Digits)
AC Current	0.1A - 100A	0.1A	± (2.0% + 5 Digits)
Frequency Response	50Hz / 60Hz (AC Bandwidth)
Crest Factor	2.5 CF
Digital Display	1049
Non-Contact Voltage (NCV)	Yes
Overrange indication	Yes
Jaw size	10mm Open Jaw
Data Hold	Yes
Enclosure	Double moulded case
Low battery indication	Yes
Power source	2 x R03
Weight	110g
Safety Specs	IEC61010-1 CatIII 300V
