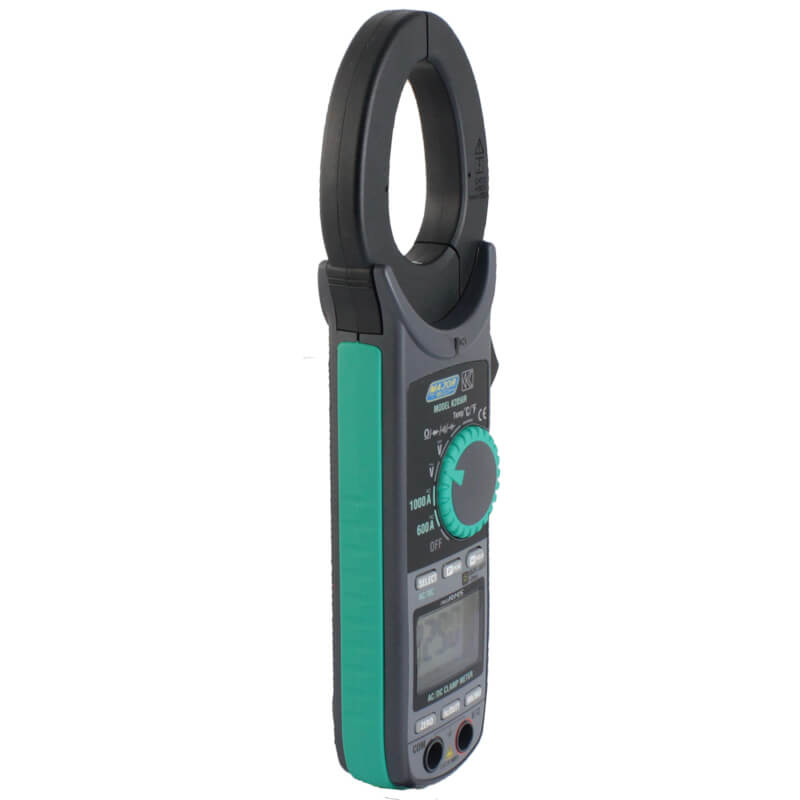

1000A Professional AC/DC True RMS Clamp Meter

SKU: K2056R

  • 6039 count backlit LCD display with 61 segment bargraph
  • Ø40mm Cable Clamp size
  • Measurement of AC/DC Current up to 1000A
  • Measurement of AC/DC voltage up to 600V
  • Temperature Measurement -50°C to 700°C
  • Capacitance to 4mF
  • Resistance to 60MΩ
  • Frequency Measurement to 10kHz
  • Continuity Buzzer and Diode Test
  • Peak Hold and Data Hold
  • Relative Mode, MIN/MAX recording mode
  • Double Moulded housing provides comfortable palm grip

R 6 275.00 ex. VAT R 7 216.25 in. VAT
Add to Cart

Details

The K2056R is a 1000A AC/DC True RMS Clamp Meter, one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V and meets the demands for measuring voltage and current spikes. As electrical distribution systems become more complex, the chances of voltage spikes are always increasing, and these spikes are superimposed to normal mains voltage waveform. The instrument is not purposely designed to withstand these high voltage spikes, it will blow and a potential arc blast can create a life threatening situation for the end user. The K2056R is a digital clamp meter with the capability to read current up to 1000A AC/DC. The K2056R model features the ability to utilize True RMS measurements, providing greater accuracy on non-sinusoidal waveforms, thus useful for power distribution companies, power utilities and maintenance fields.



Specifications:

Function Range Resolution Accuracy
DC Current 600A - 1000A 0.1A ± (1.5% + 5 Digits)
AC Current 600A - 1000A 0.1A ± (2.0% + 5 Digits)
DC Voltage 600mV - 600V 0.1mV ± (1.0% + 3 Digits)
AC Voltage 6V - 600V 0.1V ± (1.5% + 4 Digits)
Resistance 600Ω - 60MΩ 0.1Ω ± (1.5% + 5 Digits)
Frequency 1Hz - 10kHz 0.1Hz ± (0.5% + 5 Digits)
Capacitance 40nF - 4000μF 0.01μF ± (2.5% + 20 Digits)
Temperature -50 to 700°C 1°C ± (5.0°C + 3 Digits)
Duty Cycle 0.1 TO 99.9% 0,001 ± (2.5% + 5 Digits)
AC Bandwidth  40Hz to 400Hz
Digital Display 6039
Bargraph Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Continuity Yes
Diode test Yes
Jaw size 40mm
Input impedance >10MΩ DCV & >10MΩ VAC
Min Max Yes
Peak hold Yes
Data Hold Yes
Back Light Yes
Enclosure Double moulded case
Low battery indication Yes
Power source 2 x R03
Weight  310g
Safety Specs IEC61010-1 CatIV600V

Safety Rating

Accessories:

  • Carrying Case
  • AA Batteries
  • Test Leads
  • Instruction Manual
  • COC
