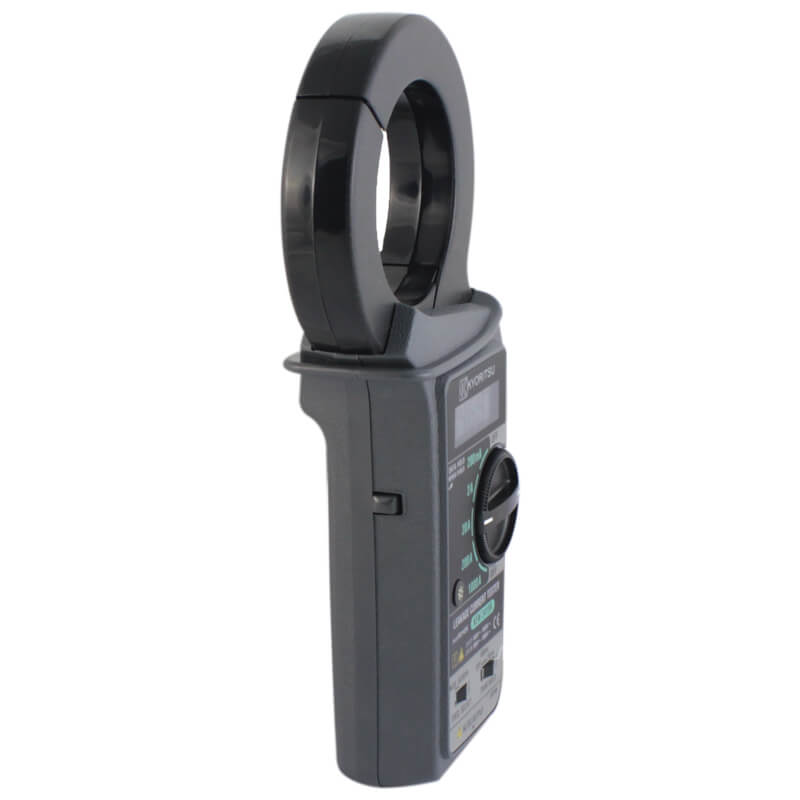

1000A AC True RMS Leakage Clamp Meter

SKU: K2413R

  • True RMS
  • Ø68mm Cable
  • Measures AC current up to 1000 Amps
  • 0.1mA Resolution
  • Extra wide transformer jaws for clamping on all wires
  • AC output terminal for waveform viewing on oscilloscopes
  • Output terminal for recording current input
  • Dual frequency response of fundamental 50/60Hz or from 20Hz to 1kHz
  • Shielded transformer jaws minimize the effect of external or stray magnetic fields
  • Auto Power Off
  • Peak Hold response time selectable from approx. 10mS and 100mS, where half of the peak current is displayed

R 13 435.00 ex. VAT R 15 450.25 in. VAT

Details

The K2413R is a versatile and innovative digital clamp meter designed for both very low and high current measurements, making it an ideal tool for a wide range of industrial and commercial applications. With its unique features, the K2413R allows accurate measurement of leakage currents, from as low as 0.1 mA to as high as 1000A AC. Its shielded transformer jaws reduce the effect of external stray magnetic fields, ensuring reliable and precise measurements, even in electrically noisy environments. This clamp meter provides a high-frequency response of over 1 kHz on all measurement ranges, allowing it to accurately capture dynamic signals, including those from modern electronic devices like inverters. The integrated low-pass filter, controlled via a frequency selector switch, enables users to focus measurements on the fundamental frequency (50/60Hz) or across a wide frequency spectrum, depending on the requirements of the application.



Specifications:

Function Range Resolution Accuracy
AC Current 0.1mA - 1000A 0.1mA ± (2.8% + 10 Digits)
True RMS Measurements ACA
AC Bandwidth  20Hz to 1KHz
Digital Display 2000
Data logging AC/DC Output Terminal
Overrange indication Yes
Jaw size 68mm
Data Hold Yes
Back Light Yes
Enclosure Moulded case
Low battery indication Yes
Power source 6F22
Weight  600g
Dimensions 250 x 130 x 50mm
Safety Specs IEC61010-1 CatIII 300V

Safety Rating

Warranty

Accessories:

  • Carrying Case
  • 9V Battery
  • Instruction Manual
  • Output Jack
  • COC
