Non-Contact Tachometer
R2,495.50
Features :
- Fast and accurate non-contact RPM and TOT measurements of rotating objects
- RPM Non-contact range 2 – 100 000RPM
- TOT count mode range from 1 – 100 000RPM
- Detecting distance 50 – 500mm
- 5 Digit backlit LCD
- Auto Range
- Data Hold
- 40 Reading memories
- Min / Max
- Resolution 0.1RPM
- Built-in laser spot
Description
The MT950 is a Non-Contact Tachometer that provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ±0.05% and a fast sampling time of 0.5 seconds. The MT950 has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.
Accessories:

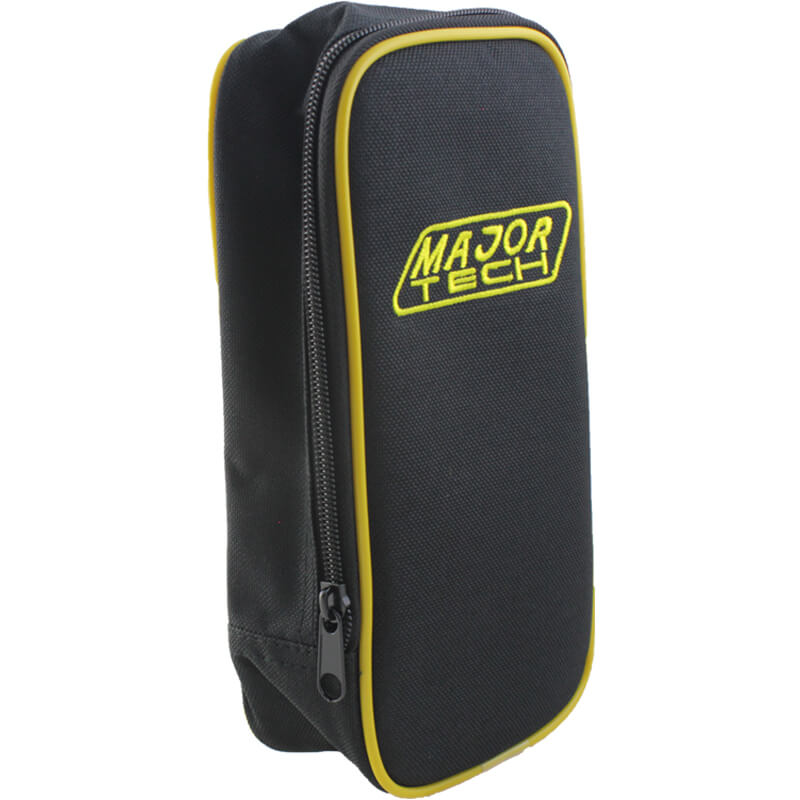

Carrying Case
3x MT905 – Reflective Tape

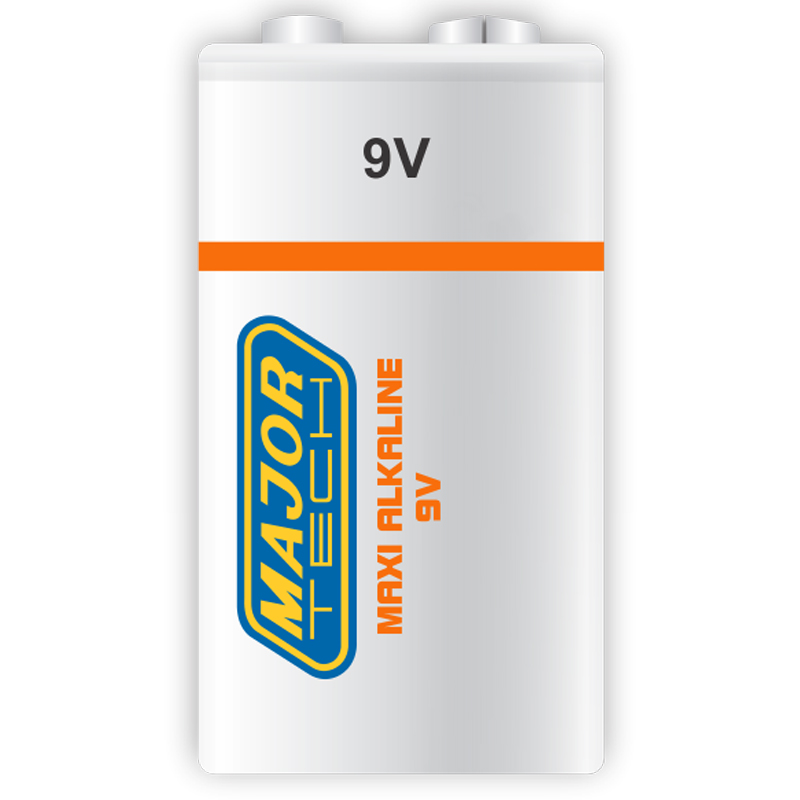

9V Battery
Instruction Manual
Additional information
Non contact test range | 2 – 100 000 RPM |
---|---|
Non contact resolution | 0.1RPM |
Non contact accuracy | ±(0.05% +1) |
Count range | 1 to 99 999 REV |
Sampling time | 0.5 seconds (over 120RPM) |
Detection distance | 50mm to 500mm |
Time base | Quartz crystal |
Digital Display | 5 Digit LCD |
Over-range indication | Yes |
Min Max | Yes |
Data Hold | Yes |
Back Light | Yes |
Enclosure | Over mould |
Low battery indication | Yes |
Power source | 9V Battery |
Weight | 160g |
Dimensions | 160 x 60 x 42mm |
