Intrinsically Safe RCD Tester K5410

SKU: K5410IS

  • Intrinsically Safe K5410
  • Microprocessor controlled
  • Operating voltage 80V – 450V L-E
  • Auto Ramp
  • 0° or 180° Phase angle selection
  • Rated current 10mA – 500mA
  • Automatically measures trip current
  • Remote testing
  • IP54 – Dust & Drip Proof

R 18 100.00 ex. VAT R 20 815.00 in. VAT
Request a Quote

Details

The K5410IS is an Intrinsically Safe Industrial Digital RCD/ELCB Tester that is Microprocessor controlled designed to operate on 550V, 380V and 220V systems, or circuits with a maximum of 450V AC (L-E). The K5410 measures trip current by varying the current automatically. A great feature is remote testing which enables the user to hold the test leads with both hands by locking the test button; measurement will automatically start when the main voltage is detected. The K5410IS detects the voltage to Earth electrodes or Protective conductors during RCD test, when applying test currents, at measurement using Earth in order to prevent electrical shocks cause by the damaged earth. Measurement will cease at 50V AC or more. Ideally suited for Mining and Industrial use.

Specifications:

Function Range Resolution Accuracy
Voltage measurement 80V to 450V   ± (2% + 4 Digits)
Measuring range  200ms, 2000ms   ± (1% + 3 Digits)
Test current 15/30/50/100/200/500mA
Frequency response 50/60Hz
Phase angle selection 0° to 180°
Power source 8 x R6P
Weight 965g
Back light Yes
Enclosure Moulded case IP54
Low battery indication Yes
Display 1999 count
Dimensions 167 x 186 x 89mm
Safety Specs IEC61010-1 CatIII 300V

Safety Rating

Accessories:

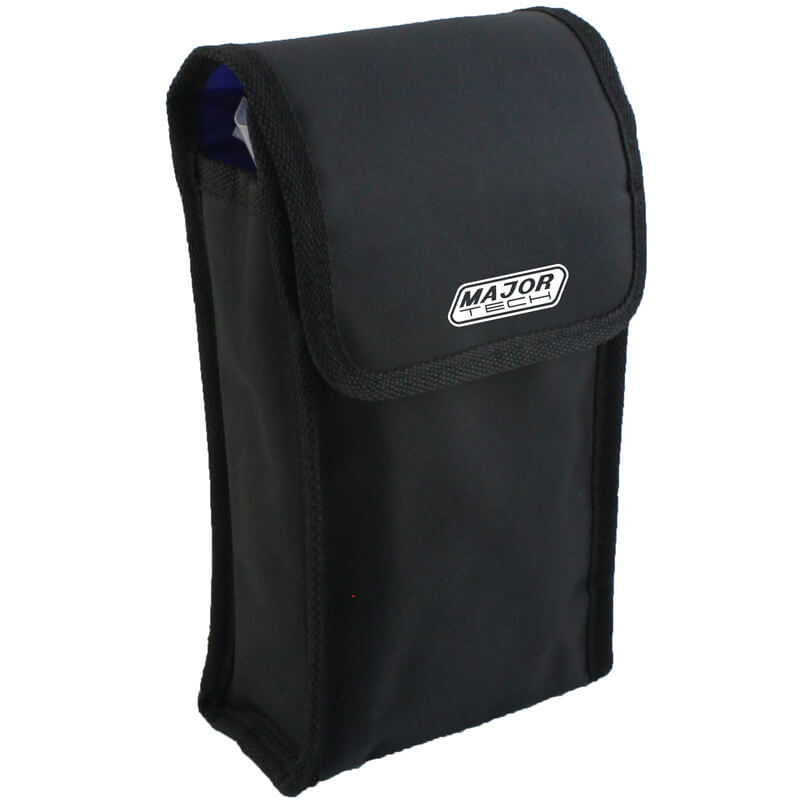

  • Pouch for leads
  • AA Batteries
  • 1 x Test Leads
  • Instruction Manual
  • Strap Belt
  • 1 x (red & Black cords)

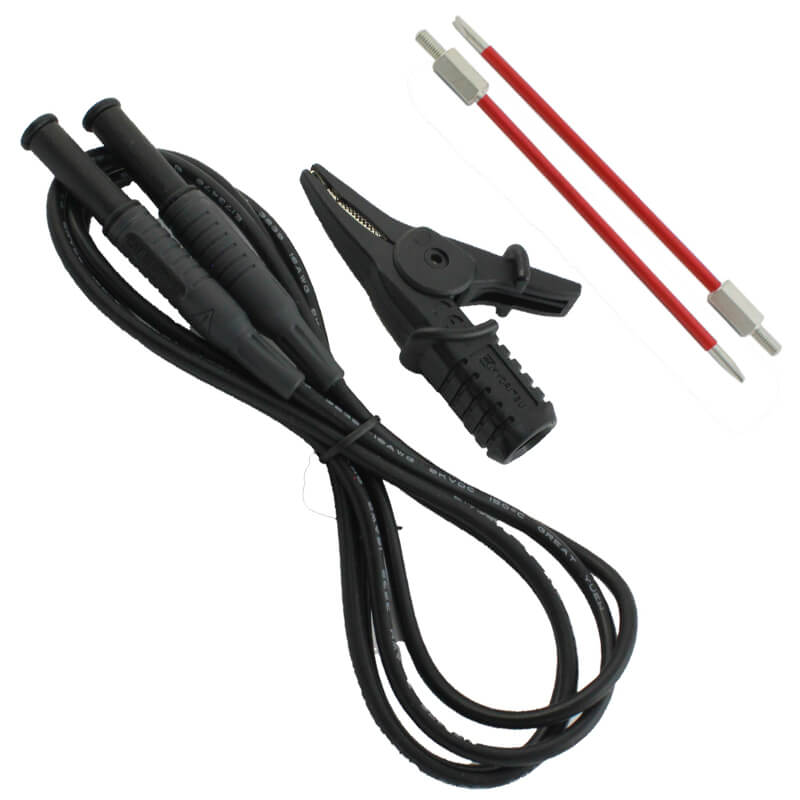

  • 1 x Test Lead with Alligator clips
