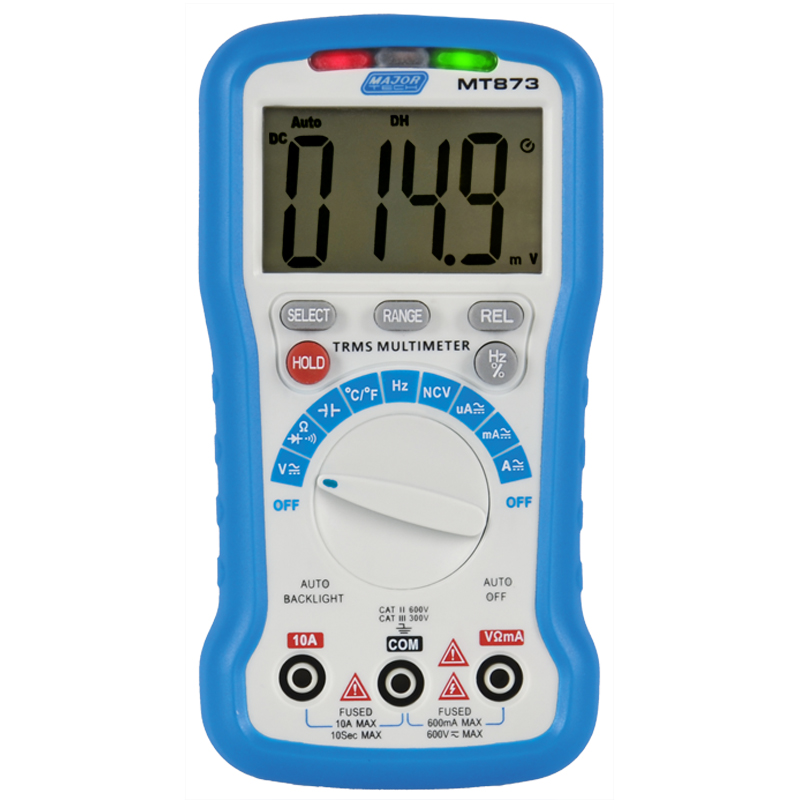

Digital Multimeter

SKU: MT873

Large 6000 count LCD display
Measures AC and DC voltage up to 600V
Measures AC and DC current up to 10A
Capacitance and Frequency Measurements
Temperature measurement from -20°C to 1000°C
NCV – Non-Contact Voltage Detector
Continuity Buzzer & Diode Test
Min, Max and Data Hold Function
Relative Mode
Auto Power Off
Auto back light

Quantity

R 995.00 ex. VAT R 1 144.25 in. VAT

Add to Cart

Add to wishlist

Details

The MT873 is a True RMS multimeter and can be used to measure AC/DC voltage, AC/DC current,resistance, capacitor, frequency, duty cycle, Non Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features a data hold & relative mode function. This multimeter is a slim sized, portable, robust, drop proof digital multimeter. It has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centred on large scale IC A/D converters in conjunction with an over-load protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.

Specifications:

Function	Range	Resolution	Accuracy
DC Voltage	0.1mV – 600V	0.1mV	±(0.5% + 2 Digits)
AC Voltage	1mV – 600V	1mV	±(1.0% + 3 Digits)
DC Current	0.1μA – 10A	0.1μA	±(1.2% + 2 Digits)
AC Current	0.1μA – 10A	0.1μA	±(1.5% + 3 Digits)
Duty Cycle	0.1 to 99.9%	0.001	±(2% + 2 Digits)
Resistance	0.1Ω – 60MΩ	0.1Ω	±(1.0% + 2 Digits)
Frequency	0.001Hz – 9.999MHz	0.001Hz	±(0.1% + 5 Digits)
Capacitance	1pF – 99.99mF	1pF	±(2.5% + 5 Digits)
Temperature	-20°C to 1000°C	1°C	±(3.0% + 2°C Digits)
True RMS Measurements	Yes
AC Bandwidth	40Hz to 400Hz
Digital Display	6000
Continuity	Yes
Diode Test	Yes
Non-Contact Voltage (NCV)	Yes
Overrange Indication	Yes
Input Impedance	10MΩ VDC & 10MΩ VAC
Data Hold	Yes
Enclosure	Rubber holster
Low Battery Indication	Yes

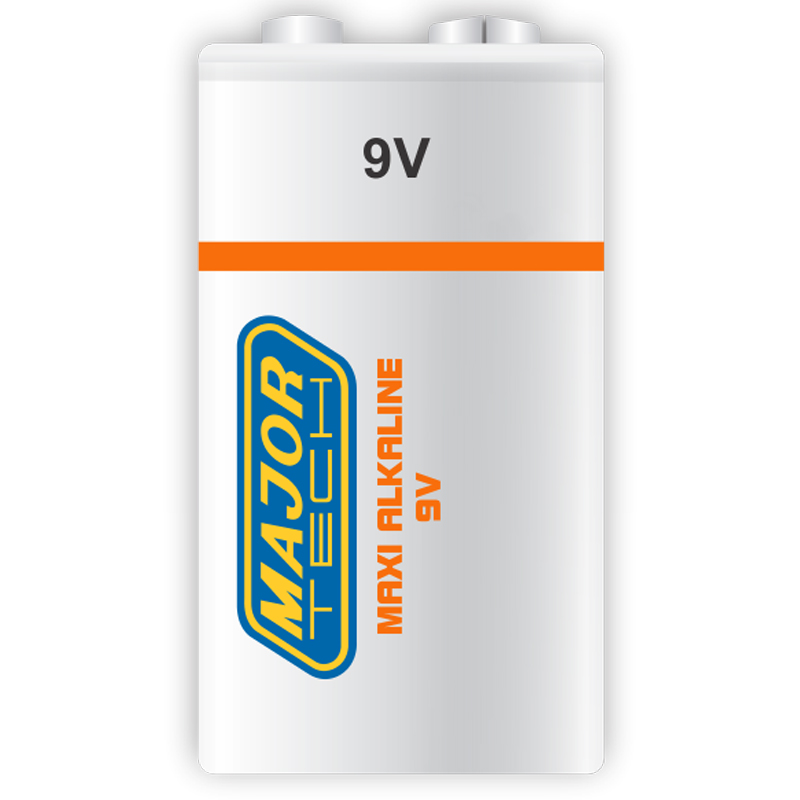

Battery	9V
Dimensions	150 x 100 x 36mm
Safety Specs	IEC61010-1 CAT II 600V
