Digital Milliohm Meter

SKU: MT985

  • 4 Terminal Kelvin measurements
  • High resolution 0.1mΩ
  • Test current of 200mA
  • AC 750V / DC 1000V
  • AC / DC 400mA
  • Capacitance 1pF to 40mF
  • MIN / MAX
  • Relative mode
  • Data Hold
  • Continuity
  • Diode
  • 4000 Count LCD
  • Bargraph and backlight
  • Low battery indication
  • Overload protection

R 4 675.00 ex. VAT R 5 376.25 in. VAT
Add to Cart

Details

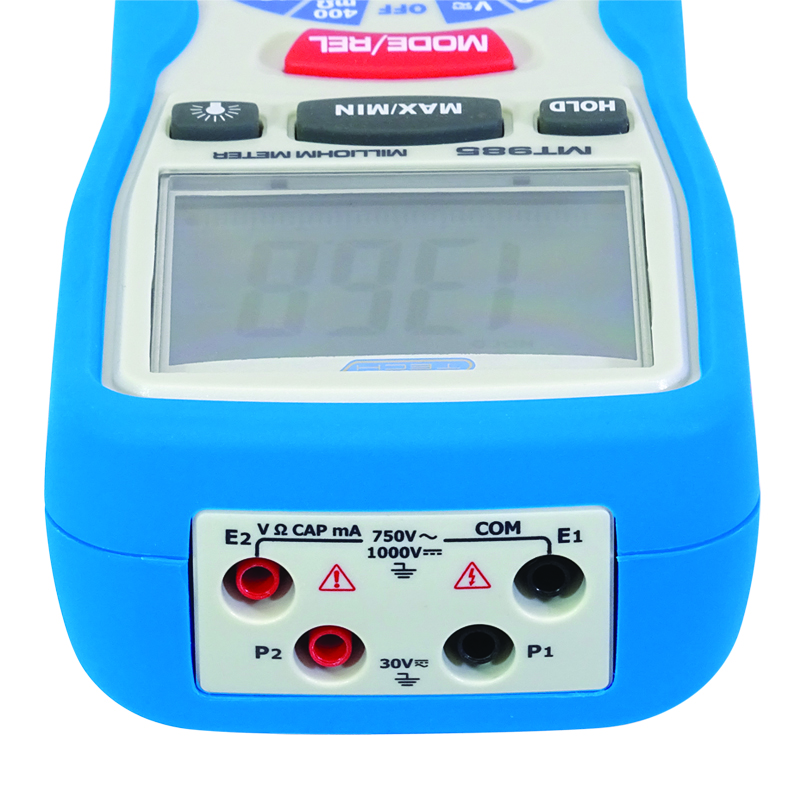

The MT985 is a handheld Digital Milliohm Meter combination that measures low resistance from 400mΩ to 40Ω with a resolution of 0.1mΩ and a test current of 200mA. With a two times per second sampling rate, this unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and back light. The Multimeter function measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and includes a diode test offering excellent performance and is ideal for any industry

Specifications:

Function Range Resolution Accuracy
Low Resistance 400mΩ – 40Ω 0.1mΩ ±(1% + 10 Digits)
DC Voltage 400mV – 1000V 0.1mV ±(1% + 5 Digits)
AC Voltage 400mV – 750V 0.1mV ±(1.2% + 10 Digits)
DC Current 400μA – 400mA 0.1μA ±(1.0% + 2 Digits)
AC Current 400μA – 400mA 0.1μA ±(1.5% + 5 Digits)
Resistance 400Ω – 40MΩ 0.1Ω ±(1.0% + 4 Digits)
Capacitance 4nF – 40mF 1pF ±(5.0% + 20 Digits)
Output Current 220mA – 2mA
Digital Display Large LCD Display
Continuity Yes
Diode Test Yes
Bargraph Yes
Overrange Indication Yes
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Double moulded case
Low Battery Indication Yes
Batteries 6 x AA
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CAT III 1000V

Safety Rating

Accessories:

  • Kelvin Clip Test Leads

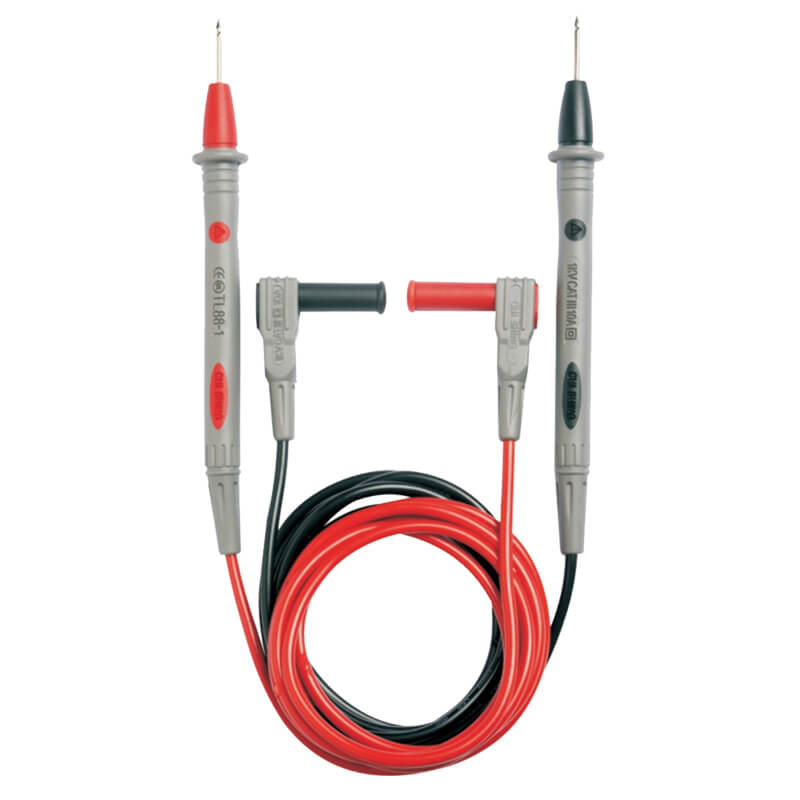

  • Test Leads

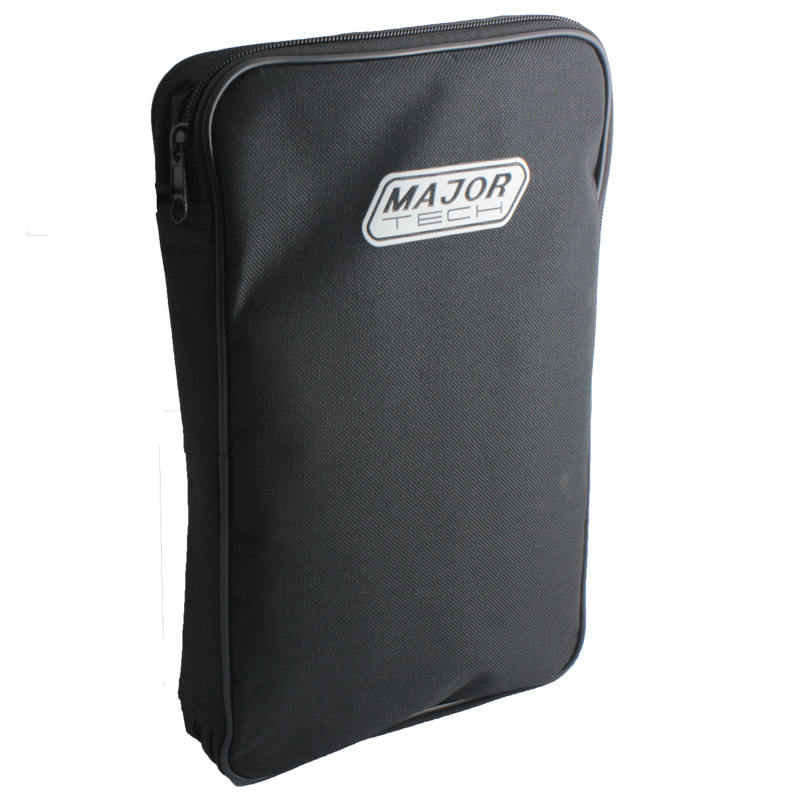

  • Carrying Case

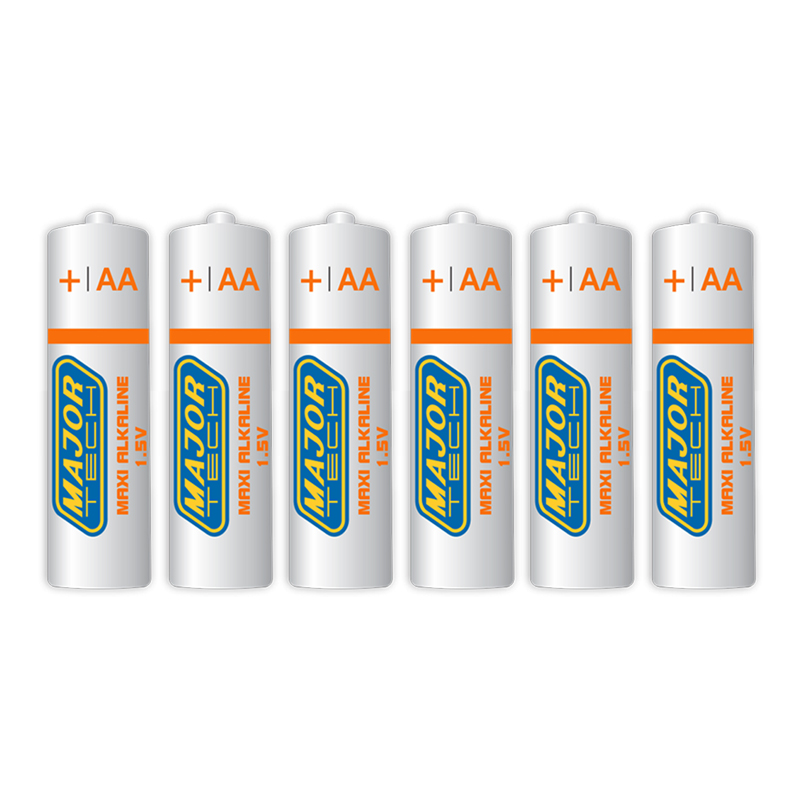

  • 6x AA Batteries
  • Instruction Manual
