DC Milliamp Process Clamp Meter

SKU: K2500

  • Measures DC current in milliamps up to 200mA
  • 0.1mA resolution for accurate readings
  • One-handed operation with a compact design
  • Measures both DC voltage and resistance
  • Data hold function for easy readings
  • Auto power off to conserve battery life
  • Includes a carrying case for easy transport and storage

R 10 495.00 ex. VAT R 12 069.25 in. VAT
Add to Cart

Details

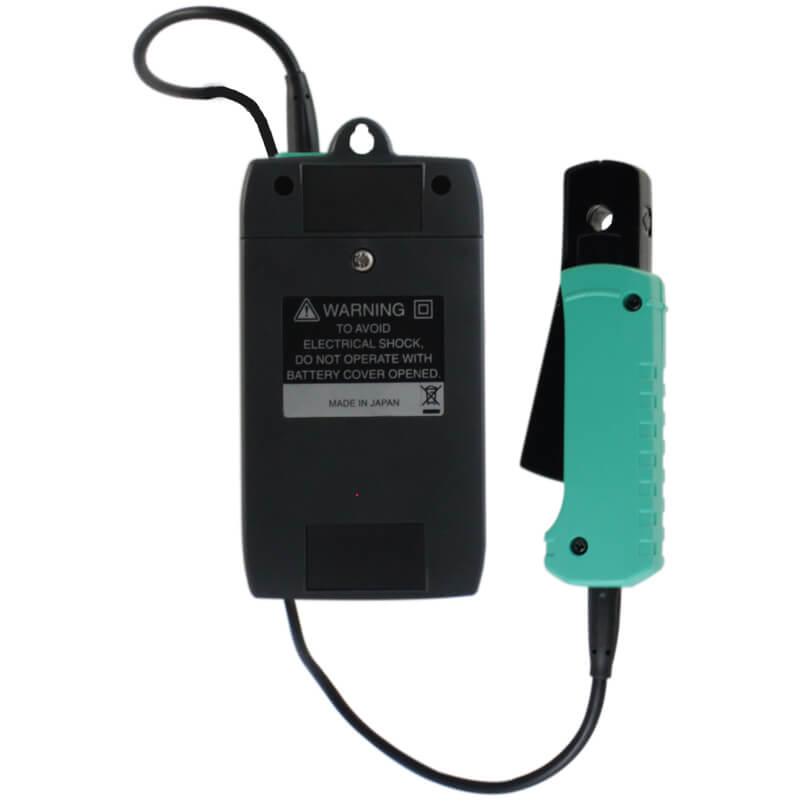

The K2500 Process Current clamp measures 4-20mA process current used for instrumentation with its compact Ø6mm jaw without breaking the loop. It is easy to handle and is equipped with a LED torch and backlit display for use in dark environments. The K2500 also comes with an analogue output which allows the user to connect to a multimeter or recorder for logging. The large display accurately displays % value and mA measured.

Specifications:

Function Range Resolution Accuracy
DC Current 20mA - 120mA 0.01mA ± (0.2% + 5 Digits)
4-20mA% Yes
Jaw size Ø6mm
Digital Display Dual display mA/%
Data logging Output terminal
Data Hold Yes
Back Light Yes
Enclosure Double moulded case
Low battery indication Yes
Power source 4 x LR6
Weight  290g
Dimensions 111 x 61 x 40mm
Safety Specs IEC61010-1 CatII 300V

Warranty

Accessories:

  • Carrying Case
  • AA Batteries
  • Instruction Manual
  • COC
