Analogue Insulation Tester

SKU: MT500

  • Three test ranges 250V-500V-1000V
  • 600V AC voltage range
  • Live Circuit warning and buzzer
  • Data Hold function
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Automatic discharge after test
  • Front panel zero adjustment for test lead resistance
  • Lock down Test Button for continuous use
  • Hands free strap and magnet supplied as standard accessories
  • Rubber overmould housing
  • Illuminated display

R 3 995.00 ex. VAT R 4 594.25 in. VAT

Details

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.

Specifications:

Function Range Resolution Accuracy
AC voltage 1V – 600V 20V ± (3.0%)
Resistance 0.05Ω–500Ω 0.05Ω ± (3.0%)
Insulation resistance 250V 250V 0 – 100M? ± (5.0%)
Insulation resistance 500V 500V 0 – 200M? ± (5.0%)
Insulation resistance 1000V 1000V 0 – 400M? ± (5.0%)
Short circuit current 1.3mA
Current measurement Range [email protected]
Overrange indication Yes
AC Bandwidth 40Hz – 400Hz
Digital Display Analogue Display
Continuity Yes
Auto discharge Yes
Input impedance  >1.2M? VAC
Data Hold Yes
Back Light Yes
Enclosure Double moulded
Low battery indication Yes
Power source 6 x R6
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Warranty

Accessories:

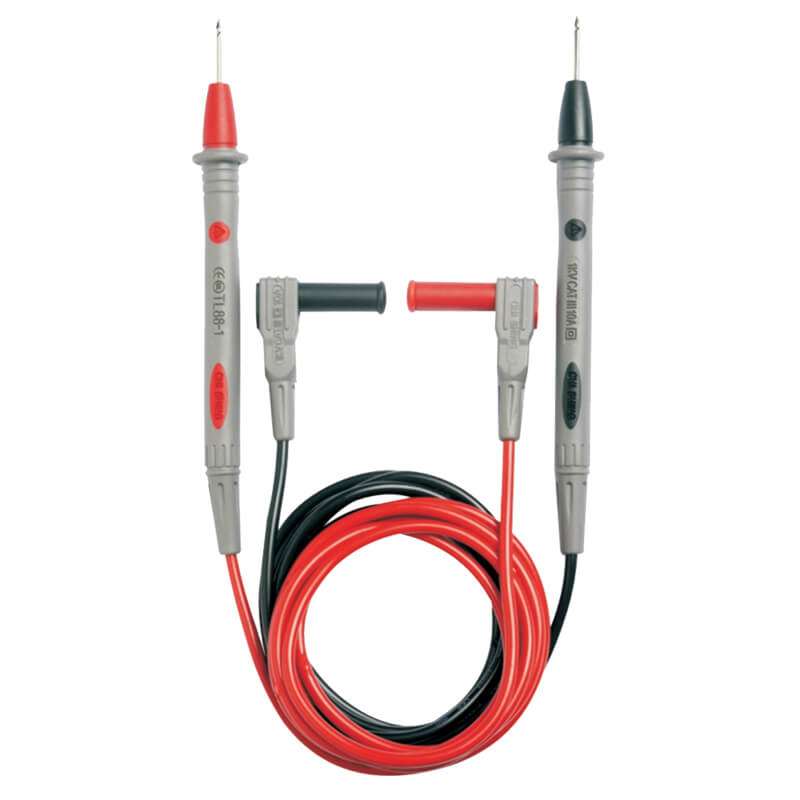

  • Test Leads

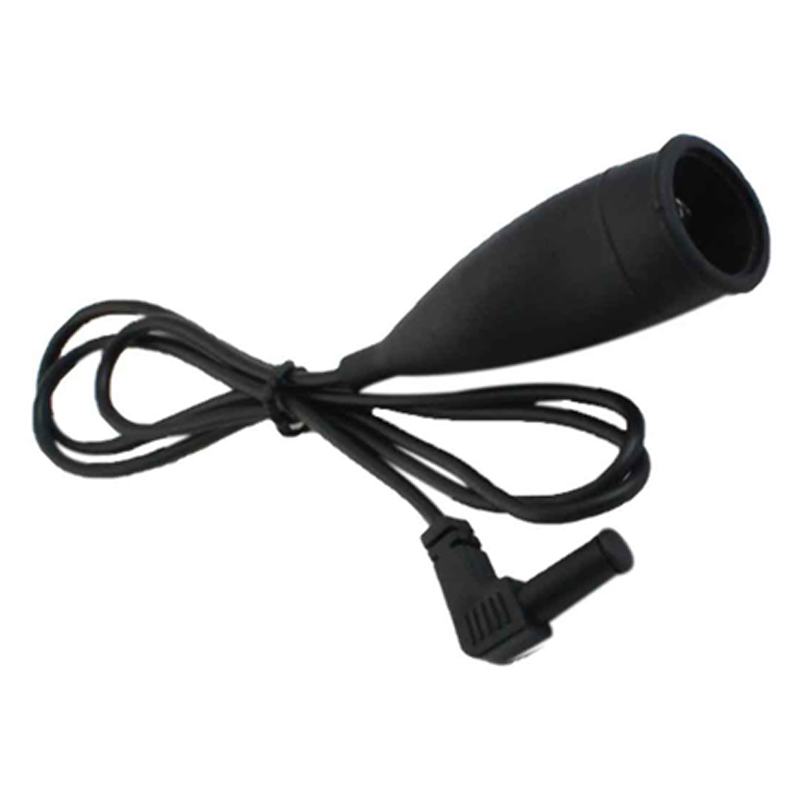

  • Black Crock Lead

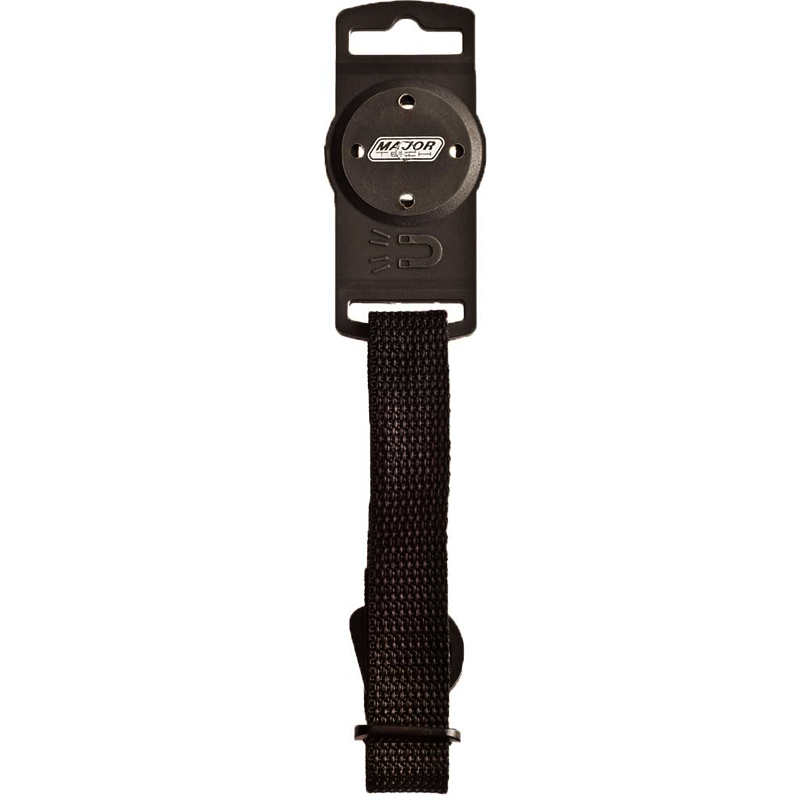

  • Magnetic Strip
  • Carrying Case
  • Adjustable shoulder strap

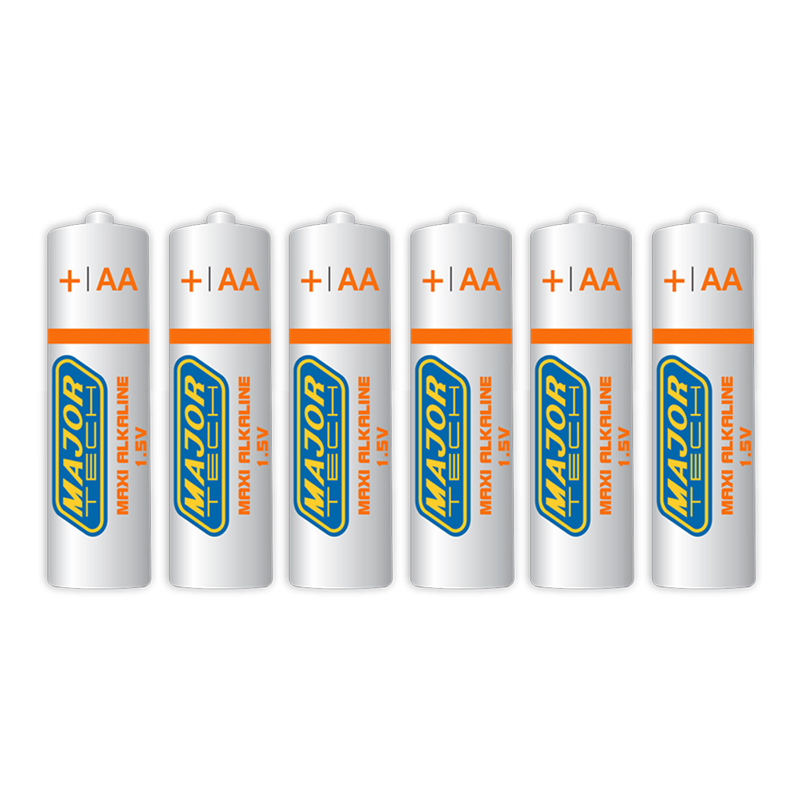

  • 6 x AA Batteries
  • Instruction Manual
