600A AC TRMS Clamp Meter

SKU: MT730

  • 6000 count backlit LCD display
  • Ø33mm Cable Clamp size
  • Measurement of DC voltage and AC voltage up to 1000V
  • Capacitance to 100mF
  • Temperature measurement from -20⁰C to 1000⁰C
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value
  • NCV – Non-Contact Voltage Detector

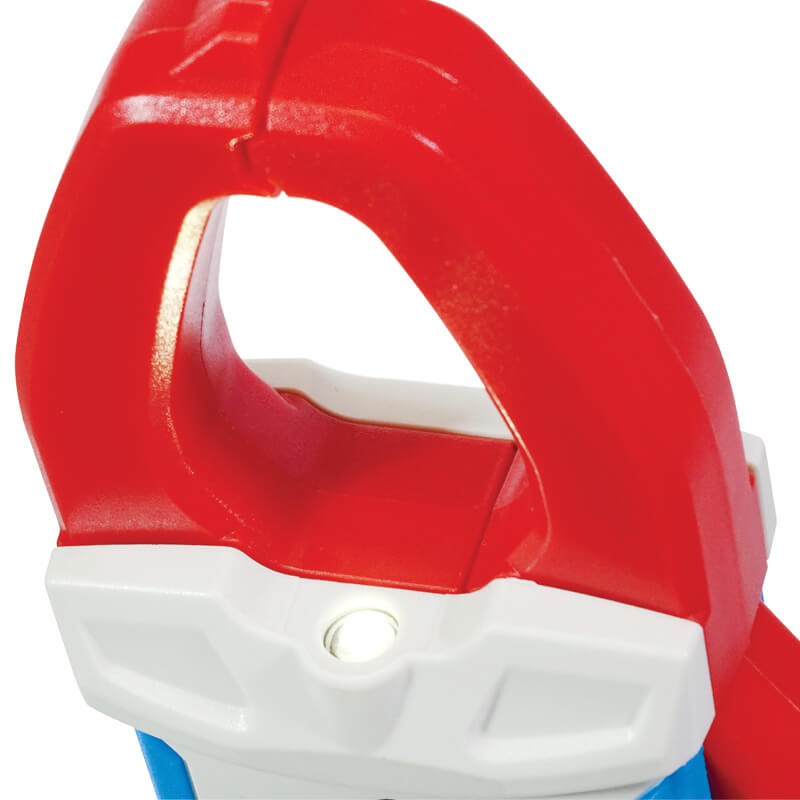

  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Peak Mode and Data Hold function
  • Auto Power Off

R 2 155.00 ex. VAT R 2 478.25 in. VAT

Details

The MT730 is a 600A AC TRMS Clamp Meter, with indication on a large 6000 count backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Specifications:

Function Range Resolution Accuracy
AC Current 0.01A – 600.0A 10mA ±(2.0% + 8 Digits)
DC Voltage 1mV – 1000V 1mV ±(0.9% + 3 Digits)
AC Voltage 1mV – 1000V 1mV ±(1% + 5 Digits)
Resistance 0.1Ω – 60.00MΩ 0.1Ω ±(1.5% + 2 Digits)
Frequency 10Hz – 100kHz 1HZ ±(1.0% + 5 Digits)
Capacitance 0.1nF – 99.99mF 0.01nF ±(3.0% + 5 Digits)
Temperature -20 to 1000°C 0.1°C ±(3% + 3.0°C Digits)
Duty Cycle 20.0% to 80.0% 0.001 ±(1.2% + 10 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 50 – 1000Hz
Digital Display 6000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 33mm
Input Impedance >10MΩ DCV & >10M? VAC
Min Max Yes
Peak Hold Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low Battery Indication Yes
Batteries 3 x AAA
Weight 318g
Dimensions 239 x 72 x 40mm
Safety Specs IEC61010-1 CAT III 600V

Safety Rating

Accessories:

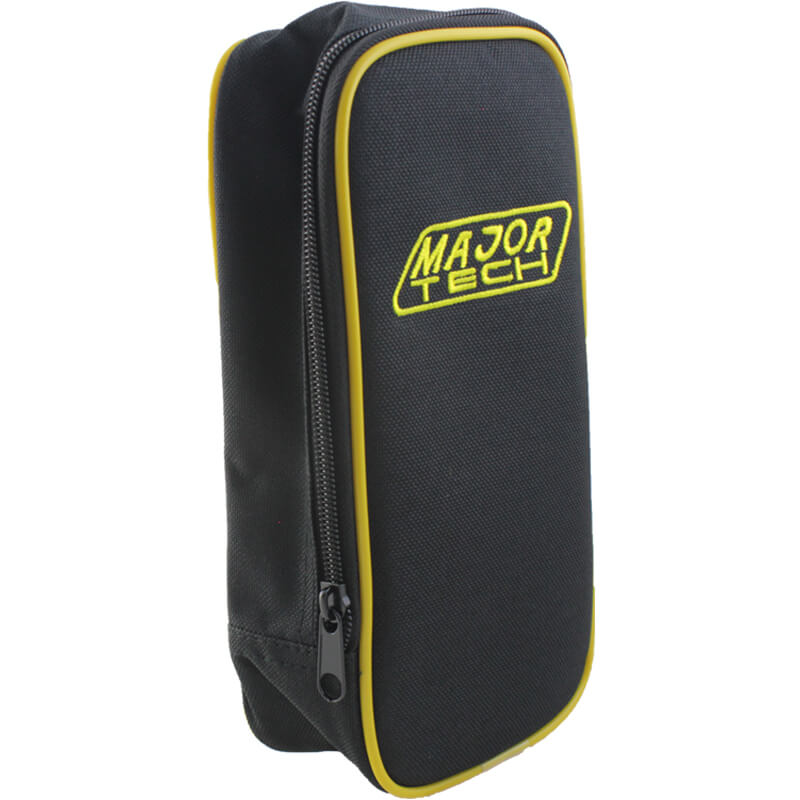

  • Soft Carrying Case

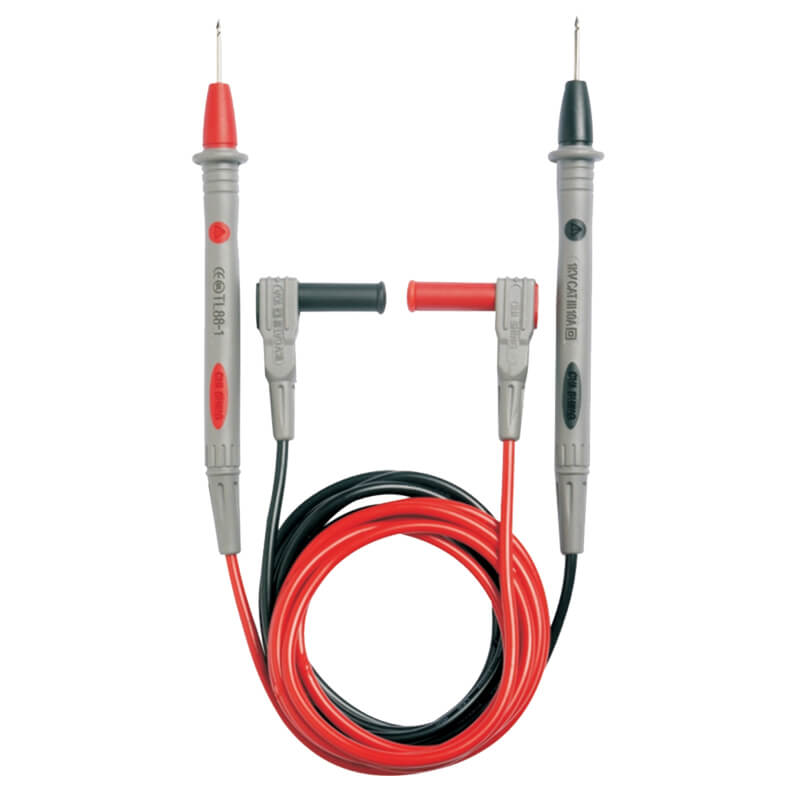

  • HDT1282 Comfigrip Test Set

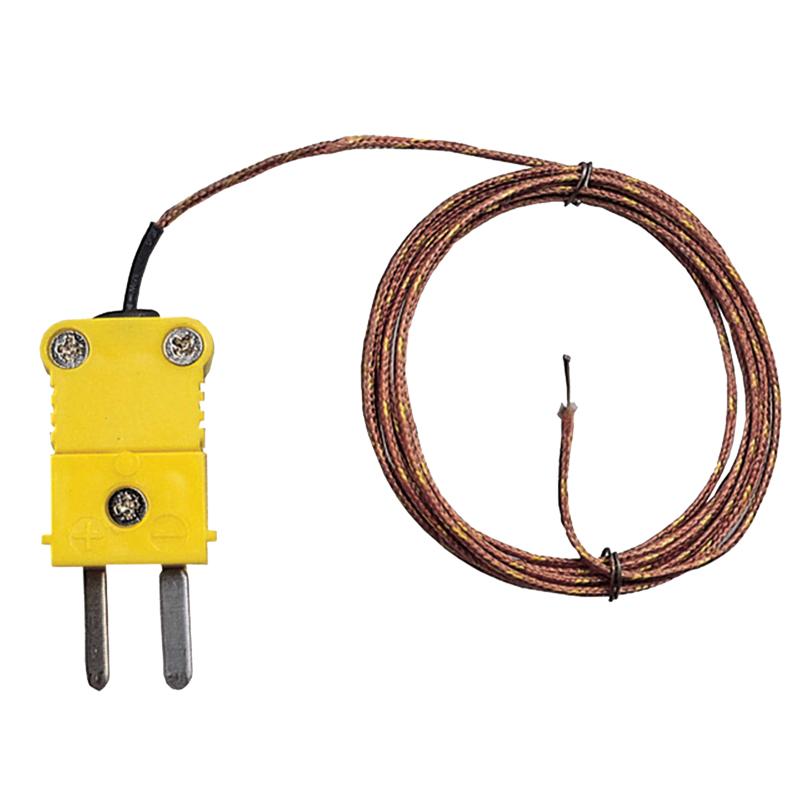

  • MT660 Wire Probe (-20° to 250°C)

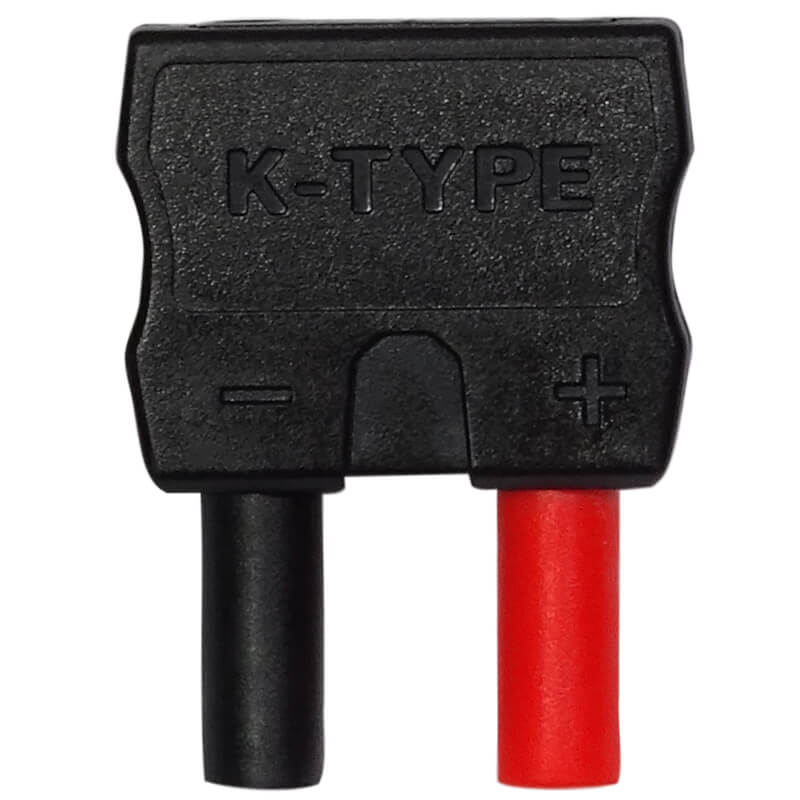

  • MT802 K-Type Adaptor

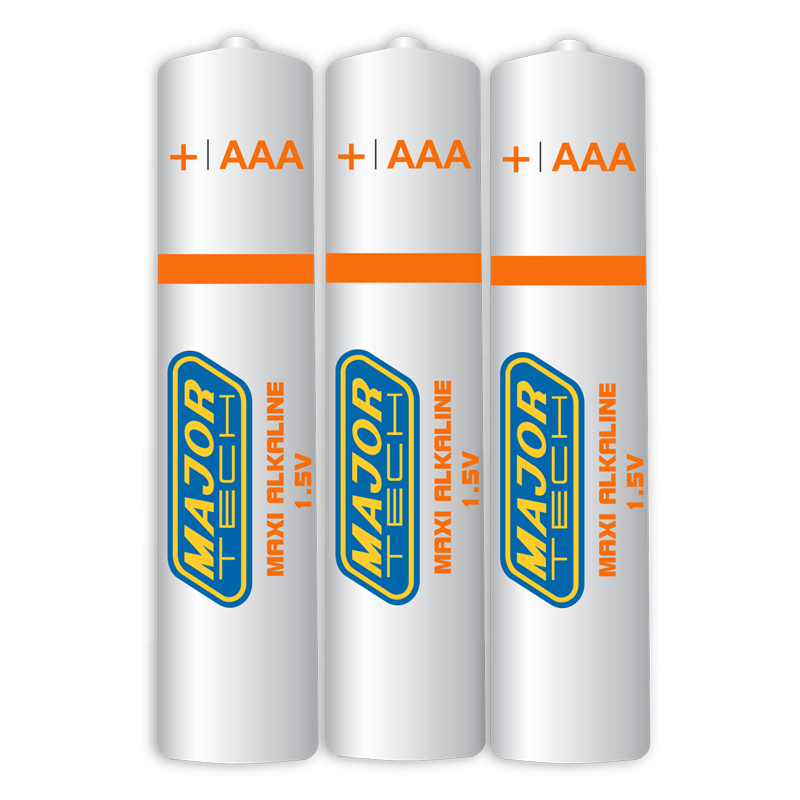

  • 1.5V AAA Batteries
  • Instruction Manual
