1000V AC/DC Compact Multimeter
R1,880.25
Features :
- Measures AC and DC Voltage to 1000V
- MIN/MAX Recordings
- Auto Range with Manual Override
- Frequency measurement to 10MHz
- Capacitance to 4000μF
- Temperature from -20°C to 760°C
- Data Hold
- Duty Cycle
- 6000 Count LCD with bargraph
- Auto Power Off
- Overmould rubber housing
- Integrated Test Lead Holder
- Backlight for dimly lit areas
Description

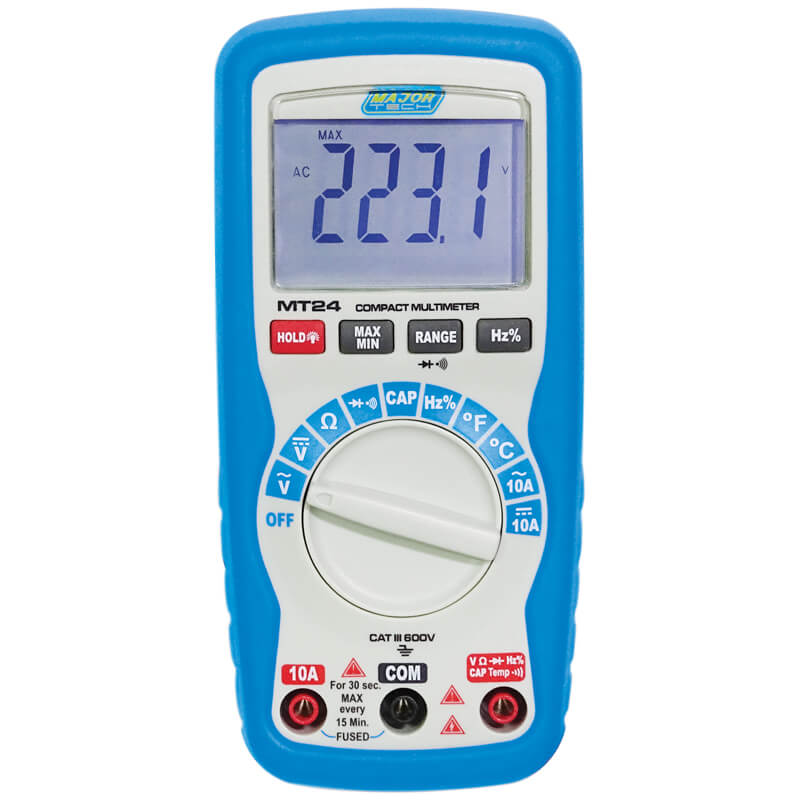

The MT24 is a 1000V AC/DC Compact Multimeter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an auto ranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.
Accessories:

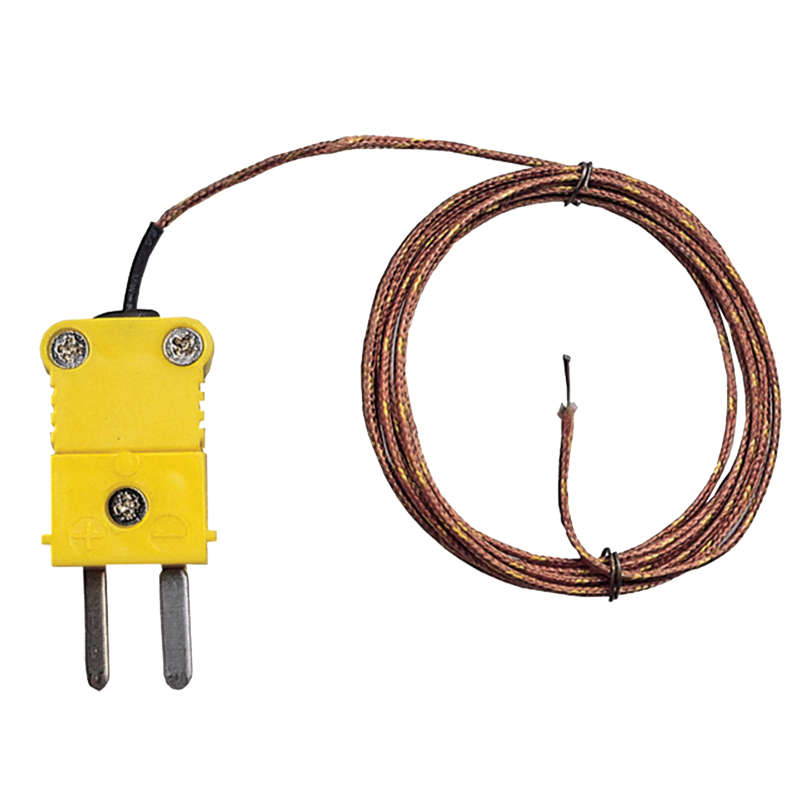

- Type-K Temperature Probe

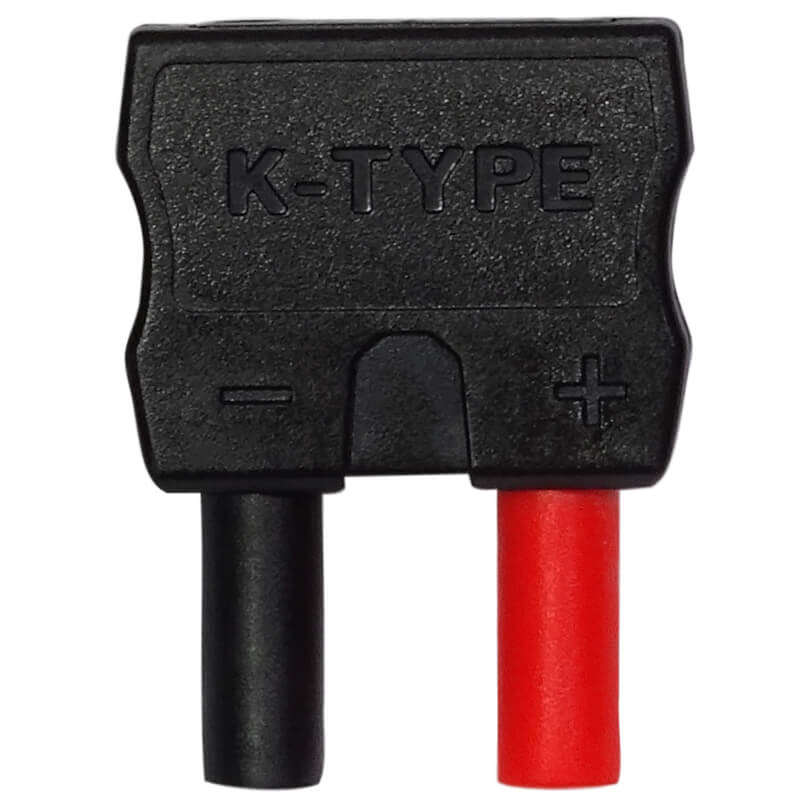

- Type-K Adaptor
- 9V Battery
- Instruction Manual

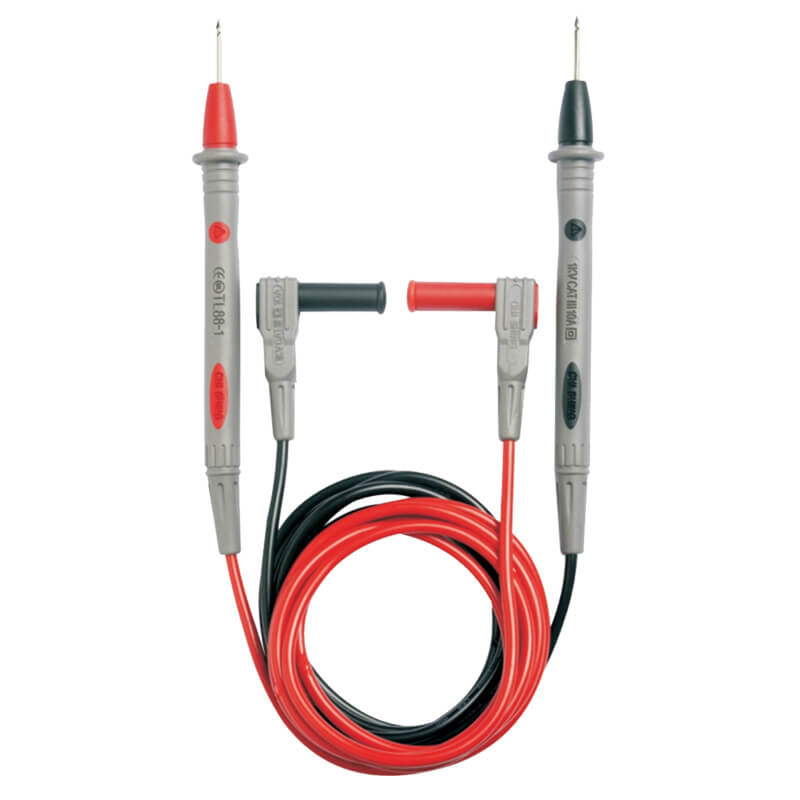

- Test Leads
Additional information
DC Voltage | 600.0mV – 1000V |
---|---|
DC Voltage resolution | 0.1mV |
DC Voltage accuracy | ±(1.2% +2) |
AC Voltage | 6.000V – 1000V |
AC Voltage resolution | 0.1mV |
AC voltage accuracy | ±(1.5% +3) |
DC Current | 6A – 10A |
DC Current resolution | 1mA |
DC Current accuracy | ±(2.5% +5) |
AC Current | 6A – 10A |
AC current resolution | 1mA |
AC Current accuracy | ±(3.0% +5) |
Duty Cycle | 0.1 to 99.9% |
Duty Cycle resolution | 0.001 |
Duty Cycle accuracy | ±(1.2% +2) |
Resistance | 600.0Ω – 60.00MΩ |
Resistance resolution | 0.1Ω |
Resistance accuracy | ±(2.0% +2) |
Frequency | 9.999Hz – 10MHz |
Frequency resolution | 0.001Hz |
Frequency accuracy | ±(1.2% +3) |
Capacitance | 40.00nF – 4000μF |
Capacitance resolution | 10pF |
Capacitance accuracy | ±(3% +5) |
Temperature | -20 to 760°C |
Temperature resolution | 1°C |
Temperature accuracy | ±(3.0%+5) |
Continuity | Yes |
Diode Test | Yes |
AC Bandwidth | 50Hz to 60Hz |
Digital Display | 6000 |
Over-range indication | Yes |
Input Impedance | 7.8MΩ VDC & 7.8MΩ VAC |
Data Hold | Yes |
Back Light | Yes |
Low battery indication | Yes |
Enclosure | Double moulded |
Power source | 9V Battery |
Weight | 255g |
Dimensions | 150 x 70 x 48mm |
