1000A Professional AC/DC Clamp Meter
1000A Professional AC/DC Clamp Meter
1000A Professional AC/DC Clamp Meter
1000A Professional AC/DC Clamp Meter
1000A Professional AC/DC Clamp Meter
1000A Professional AC/DC Clamp Meter

1000A Professional AC/DC Clamp Meter

R4,715.00

Features :

  • Measures AC and DC Voltage to 600V
  • Continuity Buzzer and Diode Test
  • Relative Mode
  • Data Hold
  • MIN/MAX recording mode
  • 6039 Count LCD with 61 segment bargraph
  • Conductor size Ø40mm
  • 600V Input protection
  • Auto Power Off
  • Overmould rubber housing
  • Backlight for dimly lit areas
  • Double Moulded housing provides comfortable palm grip
  • CAT IV 600V and CAT III 1000V
Add to Quote list
SKU: K2055 Category:

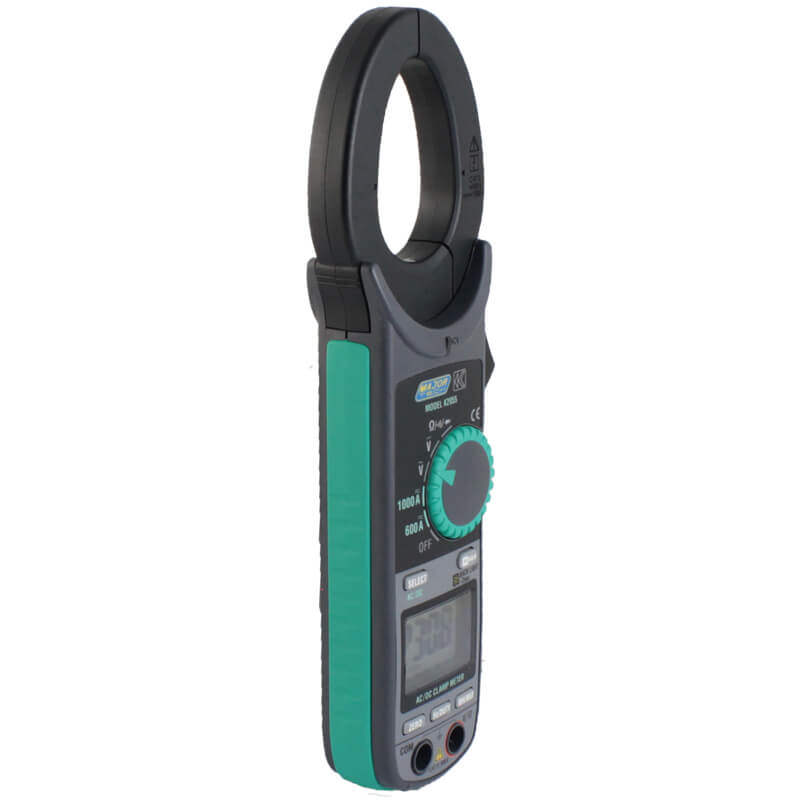

The K2055 is a CAT IV rated clamp meter with 40mm jaw size that can measure voltage and current in both low and high-powered circuits and has the ability to read up to 1000A AC/DC and 600V AC/DC. Included is a Non-Contact voltage detector giving the user warning of the presence of AC Voltage. Part of the K2056R family, this meter is one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes.

Accessories:
Carrying Case
AA Batteries
Test Leads
Instruction Manual
COC

Downloads

Technical Datasheet
Instructional Manual

Additional information

Jaw size

40mm

DC Current

1000A

DC Current resolution

0.1A

DC Current accuracy

±(1.5% +5)

AC Current

1000A

AC current resolution

0.1A

AC Current accuracy

±(2.0% +5)

DC Voltage

600V

DC Voltage resolution

0.1mV

DC Voltage accuracy

±(1.0% +3)

AC Voltage

600V

AC Voltage resolution

0.1V

AC voltage accuracy

±(1.3% +4)

Resistance

60MΩ

Resistance resolution

0.1Ω

Resistance accuracy

±(1.0% +5)

Frequency

10kHz

Frequency resolution

0.1Hz

Frequency accuracy

±(0.5% +5)

Duty Cycle resolution

0.10%

Duty Cycle accuracy

±(2.5% +5)

Continuity

Yes

Diode Test

Yes

AC Bandwidth

40Hz – 400Hz

Digital Display

6039

Bargraph

Yes

Non-Contact Voltage (NCV)

Yes

Over-range indication

Yes

Input Impedance

˃10MΩ DCV & ˃10MΩ VAC

Min Max

Yes

Data Hold

Yes

Back Light

Yes

Enclosure

Double moulded case

Low battery indication

Yes

Power source

2 x R03

Dimensions

254 x 82 x 36mm

Weight

310g
