Power Quality Analyser Set

SKU: K6315-03

  • The perfect tool for energy saving and power quality control
  • Simultaneous Power & Power quality measurements Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
  • Helpful support functions - Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
  • Measurement with high accuracy Guaranteed accuracy: ±0.3%rdg (energy), ±0.2%rdg (voltage/
    current)
  • Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
  • Remote monitoring on PC and Android device
  • Remote checking of measurement in real-time is possible via Bluetooth communication.
  • Recorded data can be saved in the supplied SD card.
  • EN50160 report can be generated after survey by PC software.
  • Various Clamp Current Sensors - Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements
  • Energy consumption check on site - Trend and demand graphs for easy recognition. TFT color display with high resolution.
  • IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

R 122 350.00 ex. VAT R 140 702.50 in. VAT
Request a Quote

Details

Easy-to-use settings that simultaneous record of power & power quality measurements in one survey. Major Tech’s Power Quality Analyser are the perfect tools for measuring energy and power control. The K6315-03 measures Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cosꝊ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance calculation for PF correction unit, Flicker.

K6315-03 is supplied as a set complete with the K8130 Flexible Load Current Clamp Sensors

Specifications:

Function Range Resolution Accuracy Allowable Input  Display Range  Crest Factor
Voltage (RMS) 600.0/1000V 0.1V ±(0.2% ±0.2%)f.s.(sine wave,40-70Hz) 1-120% of each range (rms). 200% of each range (peak) 0.15-130% of each range 3 or less
Current (RMS) 100mA-3000A depending on CT selection 100mA ±(0.2% ±0.2%)f.s. +accuracy of clamp sensor (sine wave,40-70Hz) 1-120% of each range (rms). 200% of each range (peak) 0.15-130% of each range 3 or less
Frequency Range 40-70Hz
Wiring connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements and Parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cos?), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance caluculation for PF correction unit, Flicker.
Other functions Digital Output function, external communication function, scaling function
Sampling Speed 2.4μs
Power source AC AC100-240V/ 50/60Hz/ 7VA max
Power source DC 6 x LR6 or Ni-Mh, Batt Life ±3hrs
Internal Memory Flash Memory (4MB)
PC Card Interface SD Card (2GB)
PC Communication USB Ver2.0, Bluetooth Ver 2.1 EDR Class2
Display Range 0.15-130% of each range
Display update period 1 second
Enclosure Rubber Overmold casing
Weight  900g
Dimensions 175 x 120 x 68mm
Safety Specs IEC 61010-1 Cat IV 300V
Included Accessories 7141B (Voltage test lead), 7170 (power cord), 7219(USB Cable), 8326-02 (SD Card 2GB), 9135 (Carry Case), Input terminal plates x 6, Kew windows, Calibration cert, quick manual 6 x LR6 batteries

Warranty

Accessories:

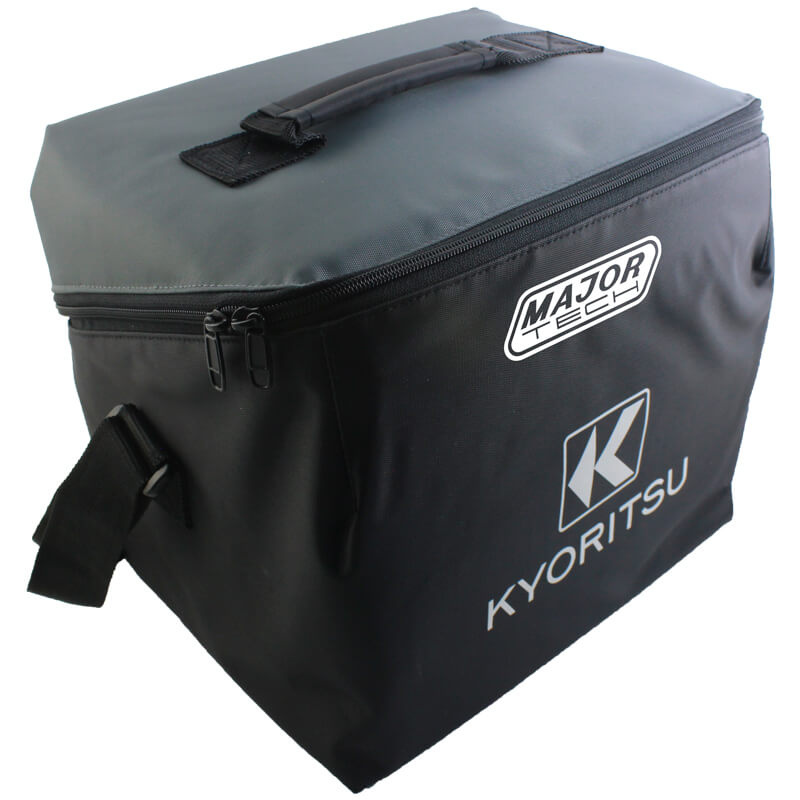

  • Carrying case
  • AA Batteries
  • Test leads
  • Instruction manual
  • Charger
  • Software
  • USB Cable
  • 2GB SD Card
  • COC
