360° Microwave Motion Sensor - IP20

SKU: MS360

  • Detects even the slightest motion
  • 3 – 2000 LUX (Adjustable)
  • 360° Detection Area
  • 16m Detection Distance
  • Automatically turns on lights when motion and body heat is detected
  • Time-delay and ambient light adjustment
  • Identify day and night automatically
  • Rated Load
    • 2000W (Incandescent Lamps)
    • 1000W (LED / CFL)
  • IP20 Rating - Indoor Installations

R 409.00 ex. VAT R 470.35 in. VAT

Details

The MS360 automatically turns on lights or any electrical device within the sensors rated load. With a detection range adjustable from 2m to 16m this sensor can detect movement through obstacles like doors, glass panels, and thin walls, this 360° sensor includes adjustable settings for time, Lux level and sensitivity. The MS360 can simply be installed on ceilings and easily integrated into new or existing installations, it excels in detecting subtle movements over large areas compared to PIR sensors. Its IP20 rating is suitable for indoor installation. Installation must be done by a qualified electrician.

Application:

  • Ideal for home use and in educational and commercial properties
  • Detects through doors, glass panes or thin walls

Specifications:

Function

Range

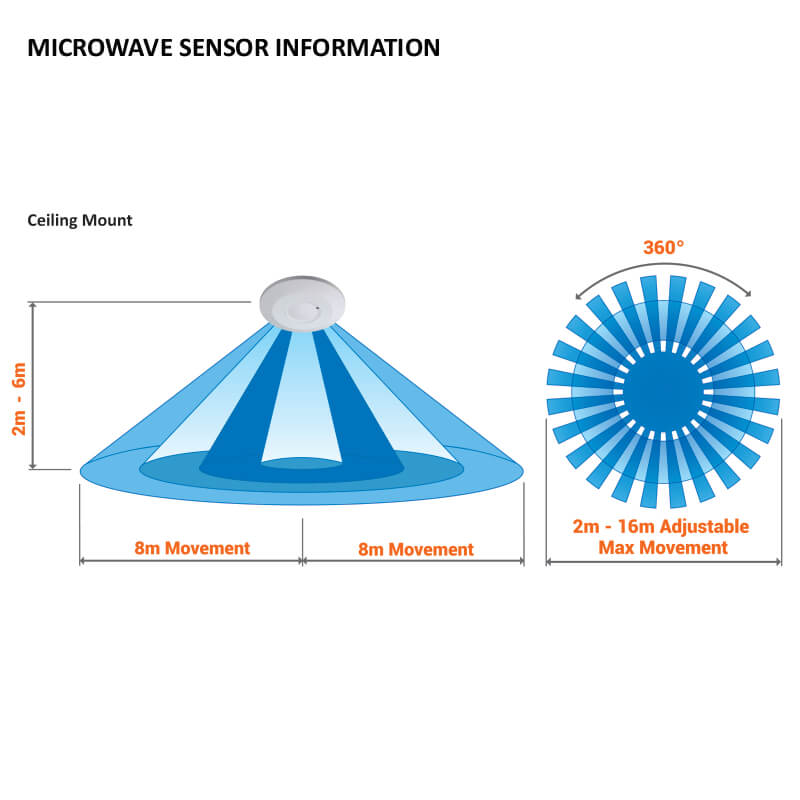

Detection Area

360°

Detection Distance

2m - 16m (Adjustable) <24°C

Detection Motion Speed

0.6 to 1.5m/s

HF System

5.8GHz CW Radar, ISM Band

Ambient Light

<3 to 2000 Lux (Adjustable)

Installation Height

2m – 6m

Voltage

220 to 240V AC

Power Frequency

50/60Hz

Rated Load

Incandescent

LED / CFL



2000W

1000W

Time Delay

10 sec (±3 sec) to 12 min (±1 min)

Power Consumption

<0.9W

Mounting

Ceiling Mount

Working Temperature

-20°C to 40°C

Working Humidity

<93% RH

IP Rating

IP20 (Indoor installation)

Standards

IEC 60669-1 / 60669-2-1

AS/NZS 60669.1 / 60669.2.1

Safety Rating

Warranty

Accessories:

  • Screws
  • Instruction Manual
