Compact Digital Multimeter

SKU: MT25

  • 41 Segment Bargraph
  • Measures AC and DC voltage up to 600V
  • Temperature measurement from -20°C to 760°C
  • 4 000 Count LCD display
  • LED Flashlight
  • IP67 Dust & Waterproof
  • Capacitance to 4000μF
  • LCD Back Light
  • Min, MAx & Data Hold
  • Auto Power Off
  • Auto Range and Manual Range Control
  • Duty Cycle

R 1 870.00 ex. VAT R 2 150.50 in. VAT
Add to Cart

Details

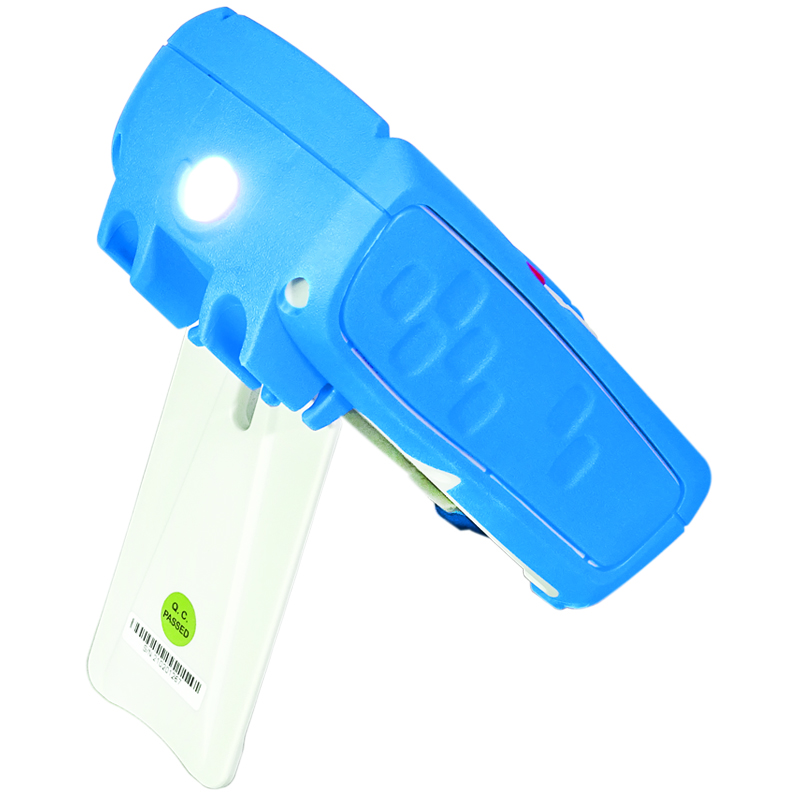

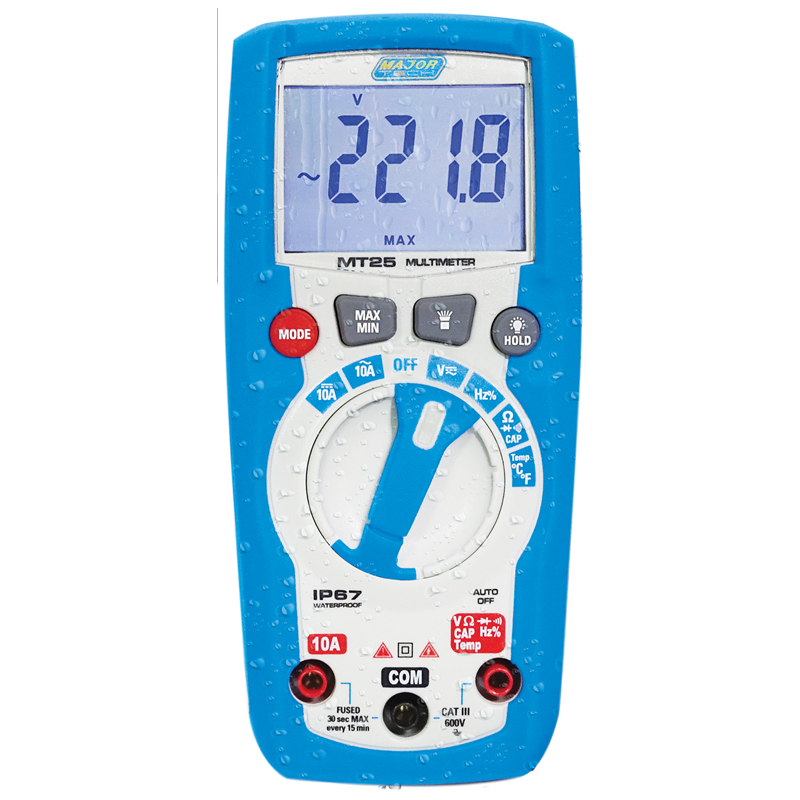

The MT25 600V AC/DC IP67 Compact Multimeter is a handheld tester that provides fast and accurate measurements, displayed on a large 4000 count backlit display with the added advantage of a 41 segment analogue bargraph. The MT25 has a double moulded rubber housing with IP67 waterproof and dustproof rating for safety and durability and has the IEC 61010-1 CAT III 600V safety rating. Multiple measuring functions include AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature and duty cycle, plus a continuity and diode test range. The MT25 also offers the added convenience of a built-in LED flashlight for dimly lit areas and a tilt stand.

Specifications:

Function Range Resolution Accuracy
DC voltage 1mV -600V 0.1mV ± (1.2% + 2 Digits)
AC voltage 1V – 600V 1mV ± (1.5% + 10 Digits)
DC Current 1mA – 10A 1mA ± (3.0% + 5 Digits)
AC Current 1mA – 10A 1mA ± (3.0% + 5 Digits)
Duty Cycle 0.1 to 99.90% 0,10% ± (1.2% + 2 Digits)
Resistance 0.1Ω – 40.00MΩ 0.1Ω ± (1.2% + 5 Digits)
Frequency 0.001Hz – 9.999MHz 0.001Hz% ± (1.2% + 3 Digits)
Capacitance 10pF – 4000μF 10pF ± (1.2% + 5 Digits)
Temperature -20 to 760°C 0.1°C ± (3.0% + 5°C)
AC Bandwidth 50Hz to 60Hz
Digital Display 4000
Bargraph Yes
Continuity Yes
Diode test Yes
Overrange indication Yes
Input impedance >7.8MΩ VDC & VAC
Data Hold Yes
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 3 x LR6
Weight 318g
Dimensions 147 x 68 x 50mm
Safety Specs IEC61010-1 CatIII 600V

Safety Rating

Accessories:

  • Soft Carrying Case
  • MT810 Test leads

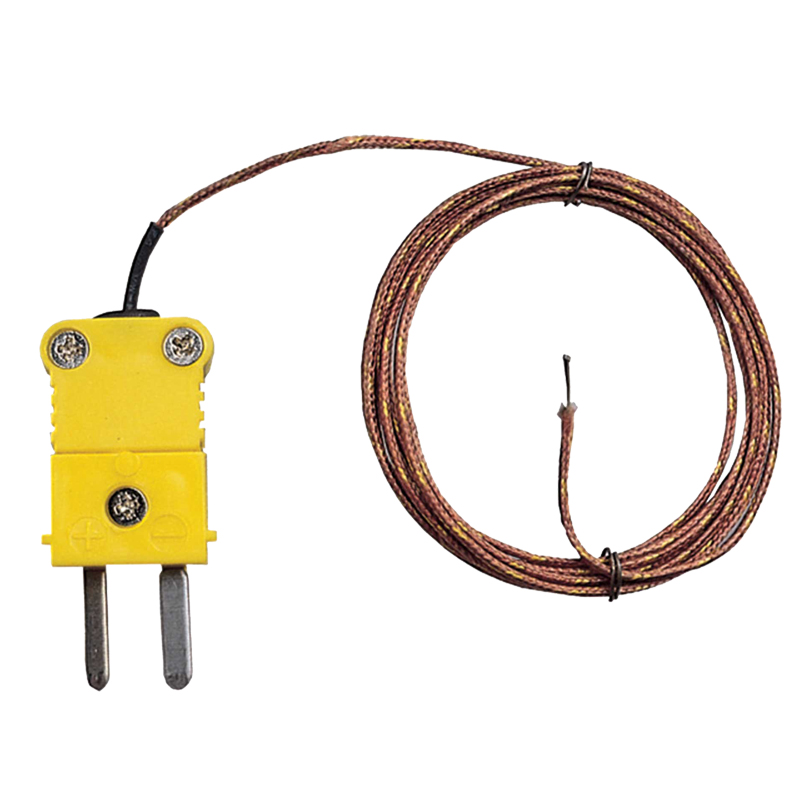

  • MT660 Temperature Probe
  • Instruction Manual

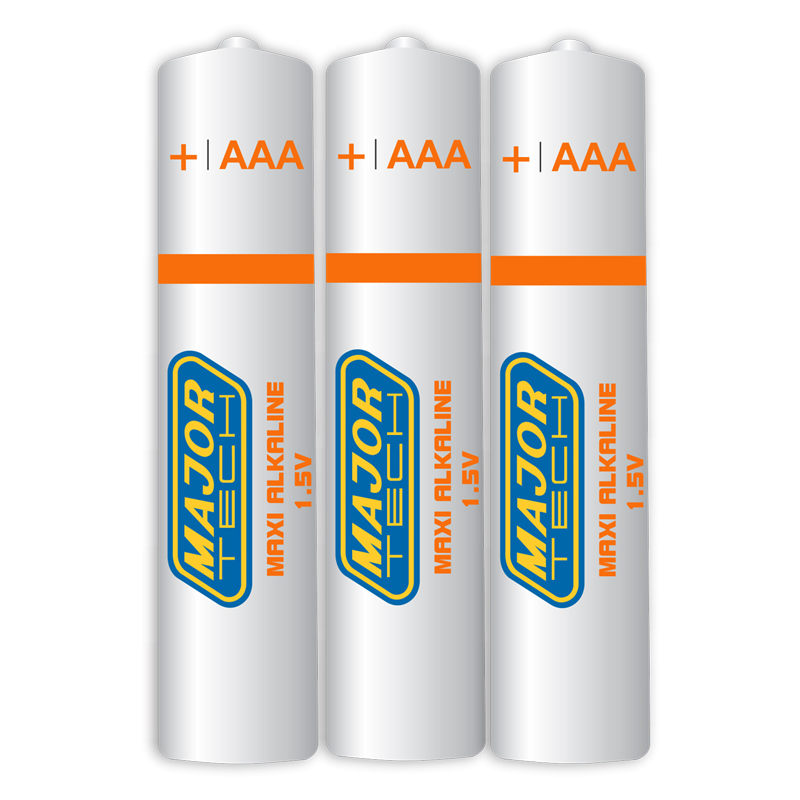

  • 3 x AAA 1.5V Batteries
