BT 600A AC/DC Thermometer Clamp Meter

SKU: MT767

  • Bluetooth
  • 6000 count negative LCD display
  • Ø33mm Cable Clamp size
  • Measurement of DC voltage and AC voltage up to 1000V
  • AC and DC Current measurement to 600A
  • Capacitance to 99.99mF
  • Resistance 60Mꭥ
  • Frequency 9.99kHz
  • K- Type Temperature measurement from -20⁰C to 1000⁰C
  • IR Temperature Spot Ratio 4:1 & measurement from -30⁰C to 350⁰C
  • Duty Cycle 20 – 80%
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value

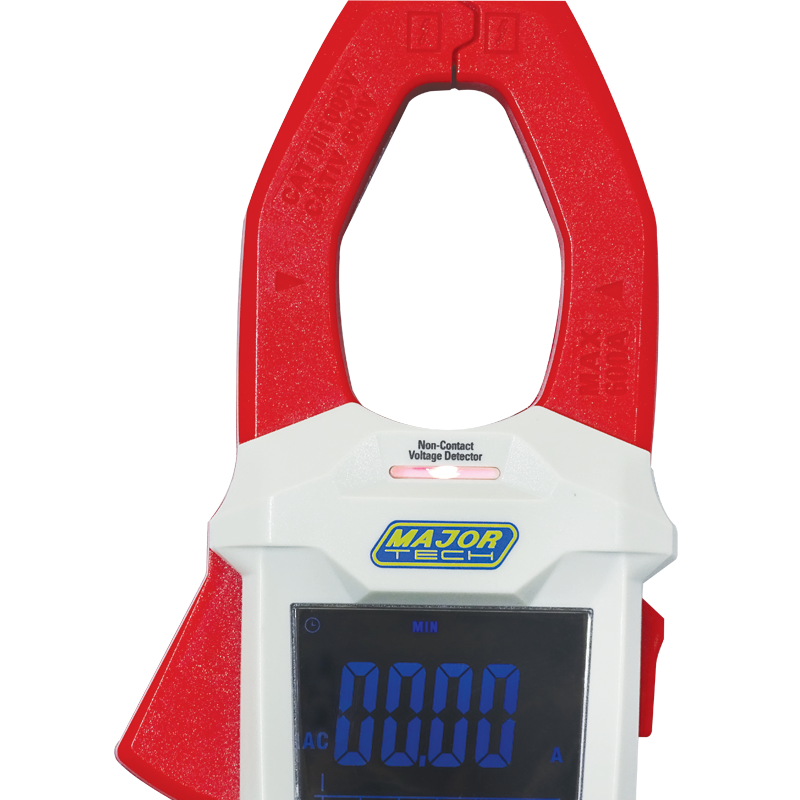

  • NCV – Non-Contact Voltage Detector
  • Continuity buzzer and Diode Test
  • Built-In Flashlight
  • Max/Min
  • Data Hold function
  • Auto Power Off

R 3 900.00 ex. VAT R 4 875.00 R 4 485.00 in. VAT

Details

The MT767 is a 600A AC/DC Thermometer Clamp Meter with bluetooth technology. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30⁰C to +350⁰C, plus there is a K-Type thermometer input for measurements up to 1000⁰C. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.

The added features or this 600A AC/DC Thermometer Clamp Meter include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.

Specifications:

Function Range Resolution Accuracy
DC Current 0.01A – 600.0A 10mA ± (2.8% + 5 Digits)
AC Current 0.001A – 600.0A 10mA ± (1.5% + 10 Digits)
DC Voltage 1mV – 1000V 1mV ± (0.8% + 4 Digits)
AC Voltage 0.001V – 1000V 1mV ± (1.5% + 5 Digits)
Resistance 0.1Ω – 60.00MΩ 0.1Ω ± (2.0% + 5 Digits)
Frequency 0.001Hz – 9.999kHz 1mHz ± (1.5% + 6 Digits)
Capacitance 0.1nF – 99.99mF 0.1nF ± (4% + 6 Digits)
Temperature K-Type Probe -20 to 1000°C 0.1°C ± (3°C + 3 Digits)
IR Temperature D:S 4:1 -30.0 to 350.0°C 0.1°C ± (2°C + 2 Digits)
Duty Cycle 20.0% to 80.0% 0,1% ± (1.2% + 5 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 50 – 1000Hz
Digital Display 6000
Bargraph Yes
Bluetooth Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Continuity Yes
Diode test Yes
Jaw size 33mm
Input impedance >10MΩ DCV & >10MΩ VAC
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low battery indication Yes
Power source 3 x LR03
Weight 350g
Dimensions 239 x 66 x 44mm

Safety Rating

Accessories:

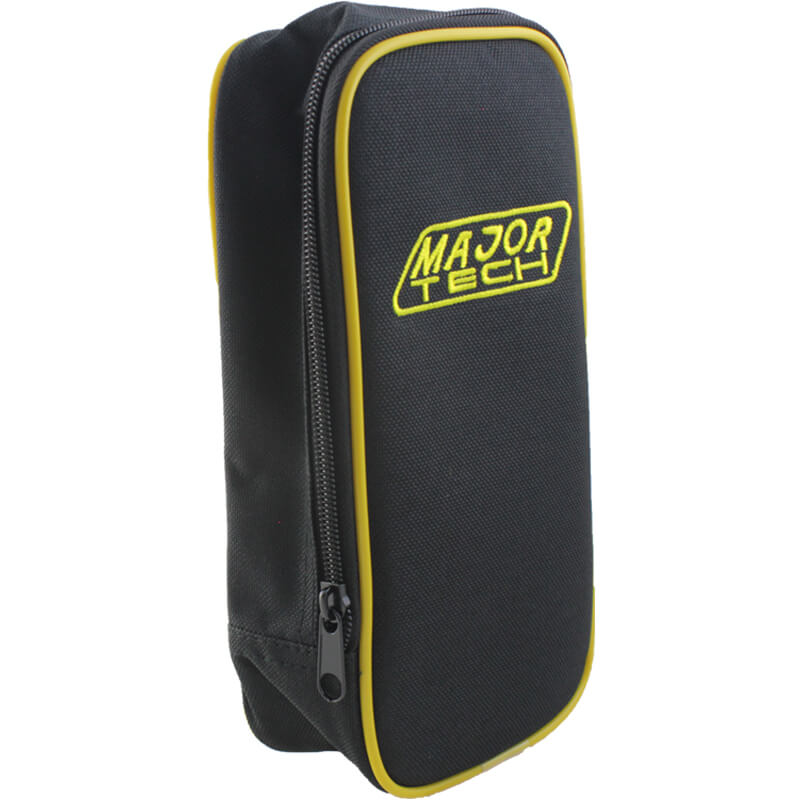

  • Carrying Case

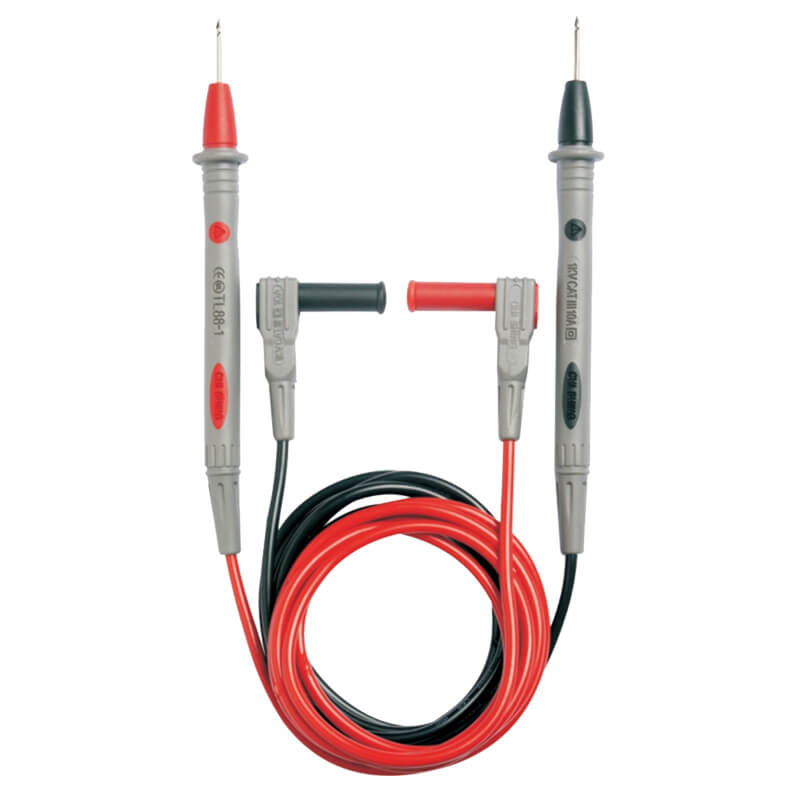

  • ComfiGrip Test Leads

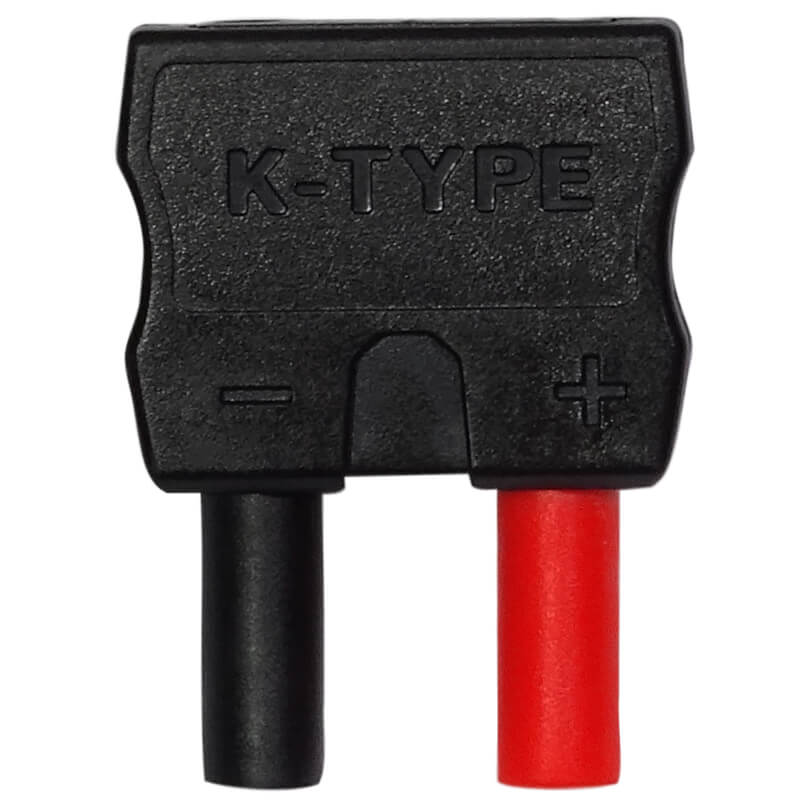

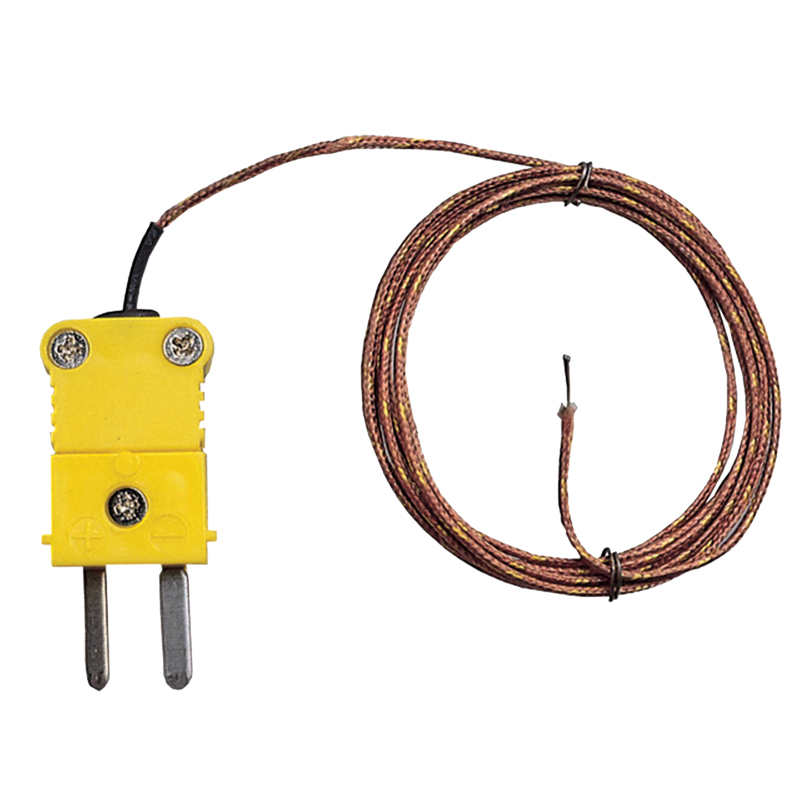

  • K-type Probe

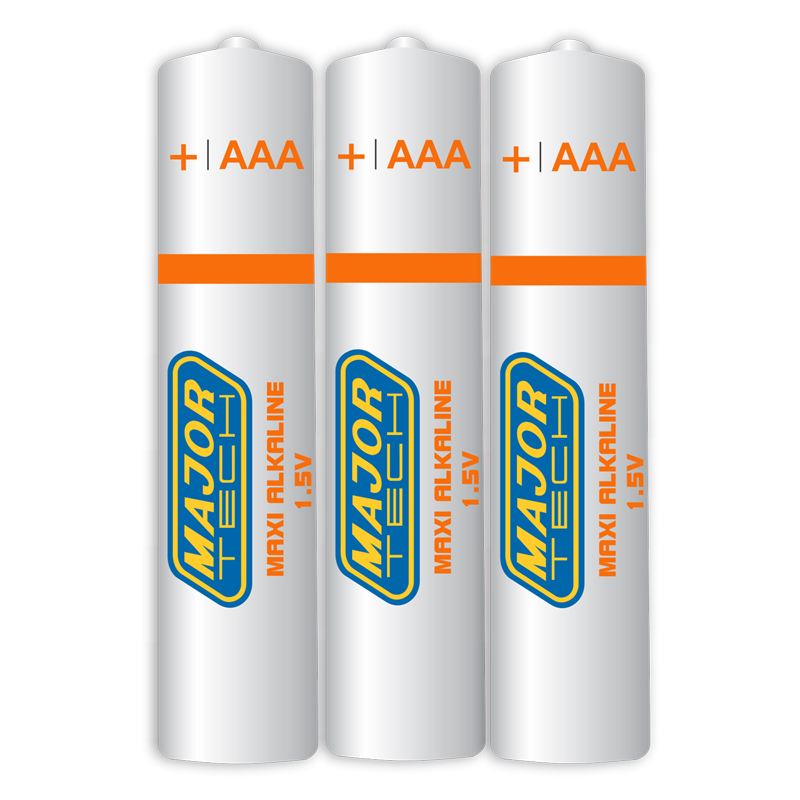

  • 3 x AAA Batteries
  • Instruction Manual
