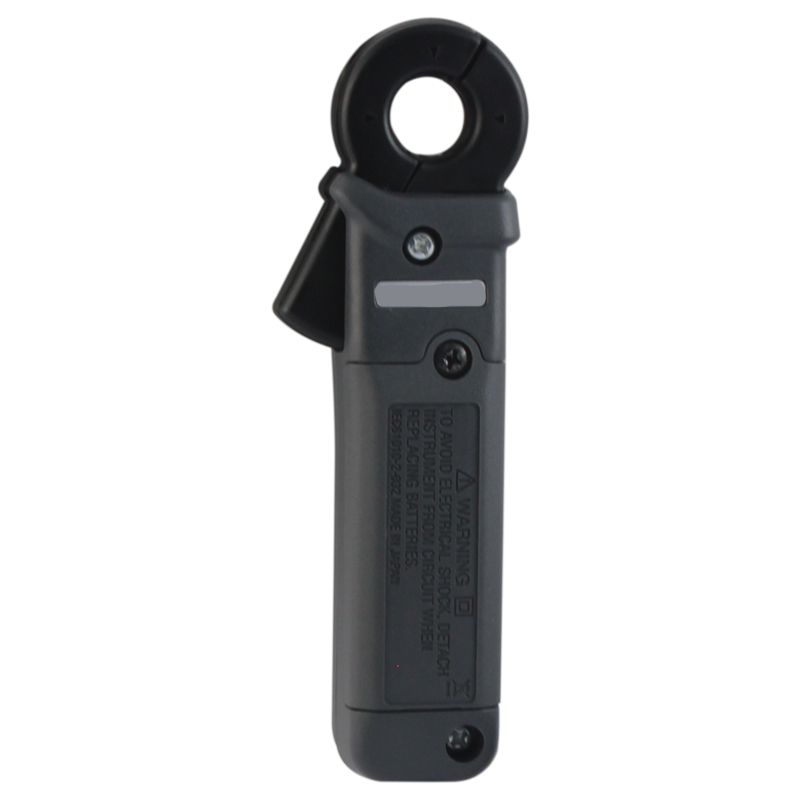

AC/DC Mini Clamp Adaptor

SKU: K8115

  • Jaw Ø12mm
  • 130A AC RMS
  • 180A DC
  • Permits extension of AC/DC current ranges of almost any Digital Multimeter without breaking the circuit under test
  • 4mm Banana Plugs

R 5 610.00 ex. VAT R 6 451.50 in. VAT
Add to Cart

Details

The K8115 permits extension of the AC and DC current ranges of almost any Digital Multimeter without breaking the circuit under test.

Specifications:

Function Range Resolution Accuracy
DC Current 1A - 180A 1A ±(1.2% + 4mV)
AC Current 0.1A - 130A 0.1A ±(1.2% + 4mV)
AC Bandwidth  50Hz to 60Hz
Jaw size 12mm
Enclosure Moulded case
Low battery indication Yes
Power source 2 x LR03
Weight  140g
Dimensions 147 x 42 x 22mm
Safety Specs IEC61010-1 CatIII 300V

Warranty

Accessories:

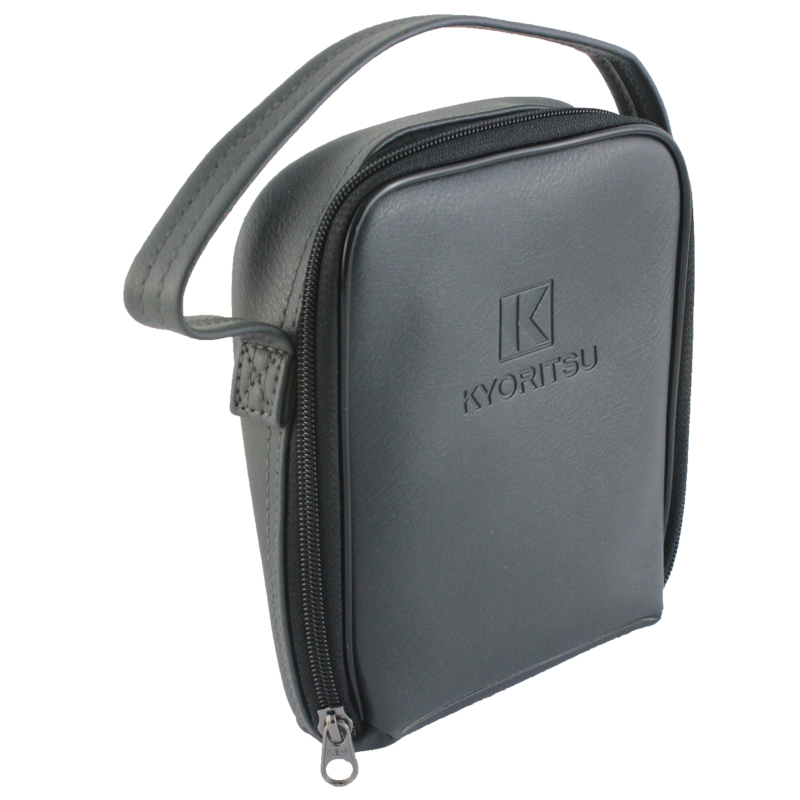

  • Carrying Case
  • AAA Batteries
  • Instruction Manual
  • COC
