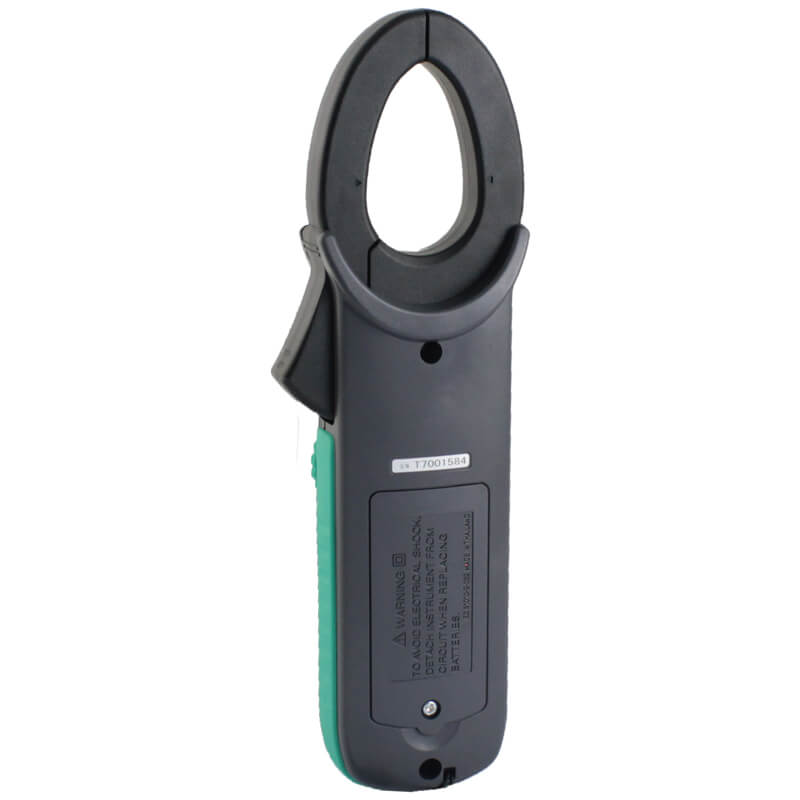

600A Professional AC/DC True RMS Clamp Meter

SKU: K2046R

  • 6039 count backlit LCD display with 61 segment bargraph
  • Ø33mm Cable Clamp size
  • Measurement of AC/DC Current up to 600A
  • Measurement of AC/DC voltage up to 600V
  • Temperature Measurement -50°C to 700°C
  • Capacitance to 4mF
  • Resistance to 60MΩ
  • Frequency Measurement to 10kHz
  • Continuity Buzzer and Diode Test
  • Peak Hold and Data Hold
  • Relative Mode, MIN/MAX recording mode
  • Double Moulded housing provides comfortable palm grip

R 6 235.00 ex. VAT R 7 170.25 in. VAT
Add to Cart

Details

The K2046R digital clamp-meter is a True RMS sensing, auto-ranging multimeter for measuring current, voltage, capacitance, frequency, and resistance in electrical testing applications. It has a clamp that measures ACA and DCA to 600A. The Red LED indicates the presence of AC voltage, this NCV is a safety function for the user. This meter is of the same family as the K2056R being one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes. Ideally suited for power distribution companies, power utilities and maintenance fields.

Specifications:

Function Range Resolution Accuracy
DC Current 0.1A - 600A 0.1A ±(1.5% +5)
AC Current 0.1A - 600A 0.1A ±(2.0% +5)
DC Voltage 0.1mV - 600V 0.1mV ±(1.0% +3)
AC Voltage 0.1V - 600V 0.1V ±(1.5% +4)
Resistance 0.1Ω - 60MΩ 0.1Ω ±(1.5% +5)
Frequency 0.1Hz - 10kHz 0.1Hz ±(0.5% +5)
Capacitance 0.01μF - 4000μF 0.01μF ±(2.5% +20)
Temperature -50 to 700°C 1°C ±(5.0°C +3)
Duty Cycle 0.1 TO 99.9% 0,001 ±(2.5% +5)
AC Bandwidth  40Hz to 400Hz
Digital Display  6039
Bargraph Yes
Non Contact Voltage (NCV) Yes
Overrange indication Yes
Continuity Yes
Diode test Yes
Jaw size 33mm
Input impedance >10MΩ DCV & >10MΩ VAC
Min Max Yes
Peak hold Yes
Data Hold Yes
Back Light Yes
Enclosure  Double moulded case
Low battery indication Yes
Power source 2 x R03
Weight  300g
Safety Specs IEC61010-1 CatIV 600V

Warranty

Accessories:

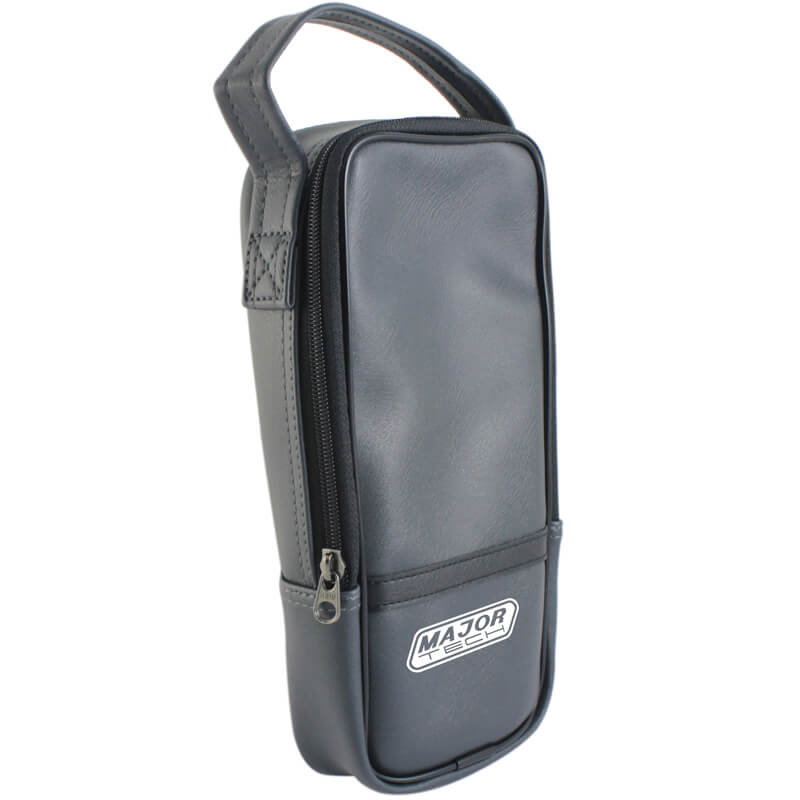

  • Carrying Case
  • Temperature Probe
  • AA Batteries
  • Test Leads
  • Instruction Manual
  • COC
