360 Infrared Motion Sensor

SKU: PIR46

  • 3 – 2000 lux

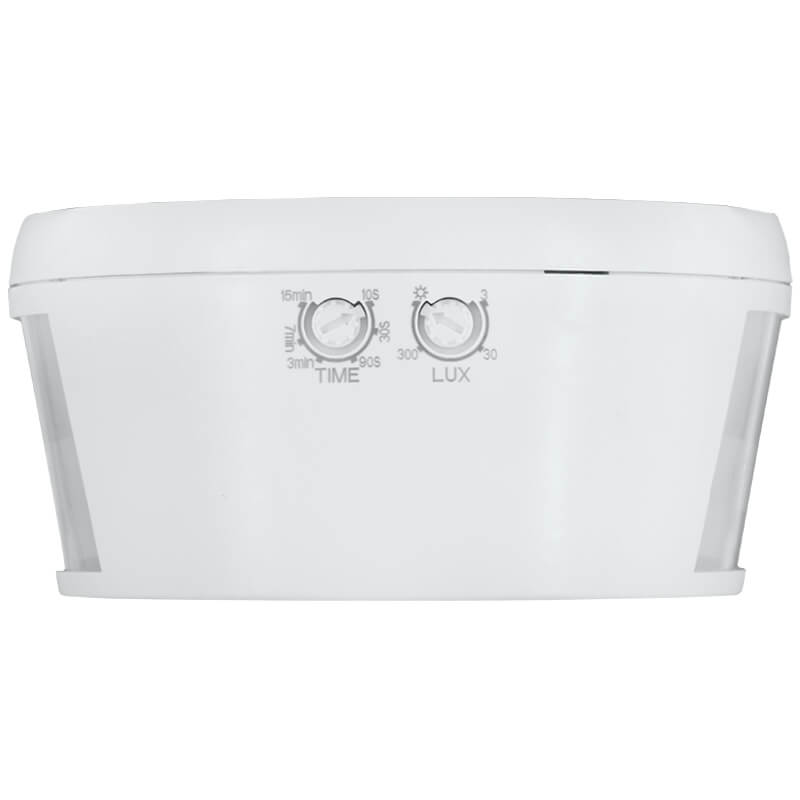

  • Adjustable time & lux
  • 360° detection range

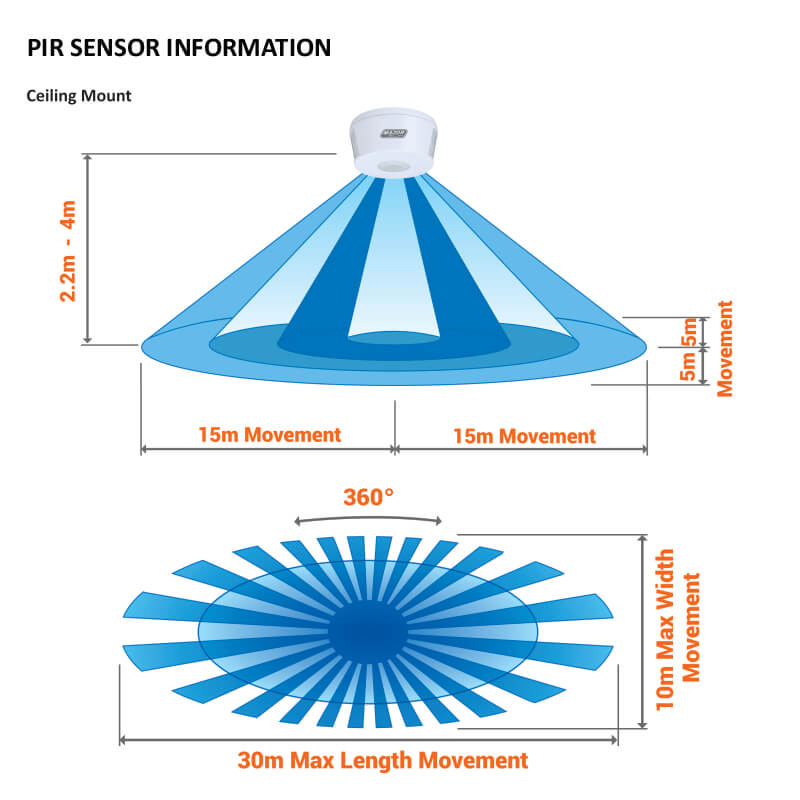

  • Total Detection 30m (15m from centre in all directions)
  • 0.6m/s to 1.5m/s motion speed detection
  • Automatically turns on lights when motion and body heat is detected
  • Installation height 2.2 – 4m
  • Identify day and night automatically
  • Long range & high sensitivity
  • Time-delay and ambient light adjustment
  • Power consumption 0.5W
  • 220 – 240V
  • 50/60Hz Frequency
  • Rated Load
    • 2000W (Incandescent)
    • 1000W (LED / CFL)

R 560.00 ex. VAT R 644.00 in. VAT
Add to Cart

Details

The PIR46 is a 360° Infrared Motion Sensor that includes a sensitivity detector and an integrated circuit to save energy and offer practical functions. The sensor has a 30m wide detection range and is designed to automatically turn lights on when motion and body heat is detected. The sensor uses infrared energy from humans as a control-signal source. The load is activated as soon as one enters the detection field. It includes a day/night sensor to easily identify between day and night, and is easy to install.

Application:

  • Major Tech PIR Sensor is ideal for homes, offices and hotels
  • The main applications include corridors, pathways, bathrooms and lobbies

Specifications:

Fucntion Range
Lux  3 - 2000 Lux
Detection Range  360°
Total Detection 30 meter (15m from centre in all directions)
Motion Speed Detection 0.6mS to 1.5mS
Installation Height 2.2m - 4m
Power Consumption 0.5W
Working Voltage  220V - 240V AC
Frequency  50 - 60Hz
Rated Load

2000W - Incandescent

1000W - LED/CFL

Safety Rating

Warranty
