19 000lm/100W High Lumen Efficiency High Bay

SKU: HHB10NW

  • Standards: IEC 60598-1, IEC 60598-2-1, AS/NZS 60598-1,AS/NZS 60598-2-1
  • Approvals: C-Tick, SAA, RCM, LOA
  • Ingress Protection: IP65
  • Voltage: 85 to 277V AC
  • Surge Protection: 6kV
  • Material: Heavy Duty Die- Cast Aluminum Housing + Polycarbonate Lens
  • High quality SMD 3030 LED Chips
  • Beam Angle: 90°

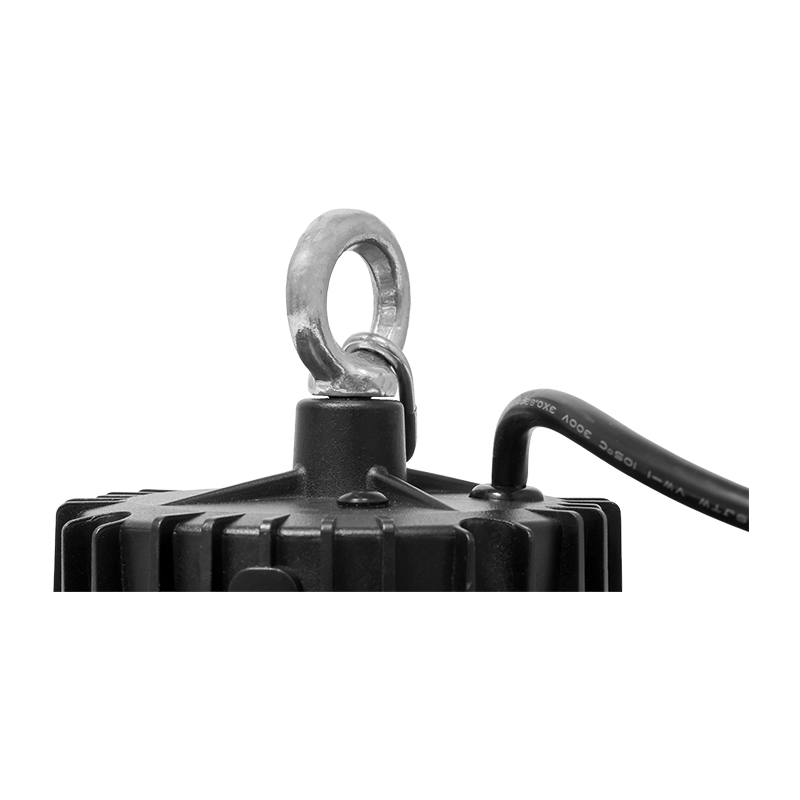

  • Secure Hook and Chain for Safe Ceiling Suspension
  • Power Factor >0.95
  • CRI: >70Ra
  • Colour Temperature: 5000K Neutral White
  • Optional Microwave Sensor Available (HMS360)

R 1 556.00 ex. VAT R 1 945.00 R 1 789.40 in. VAT

Details

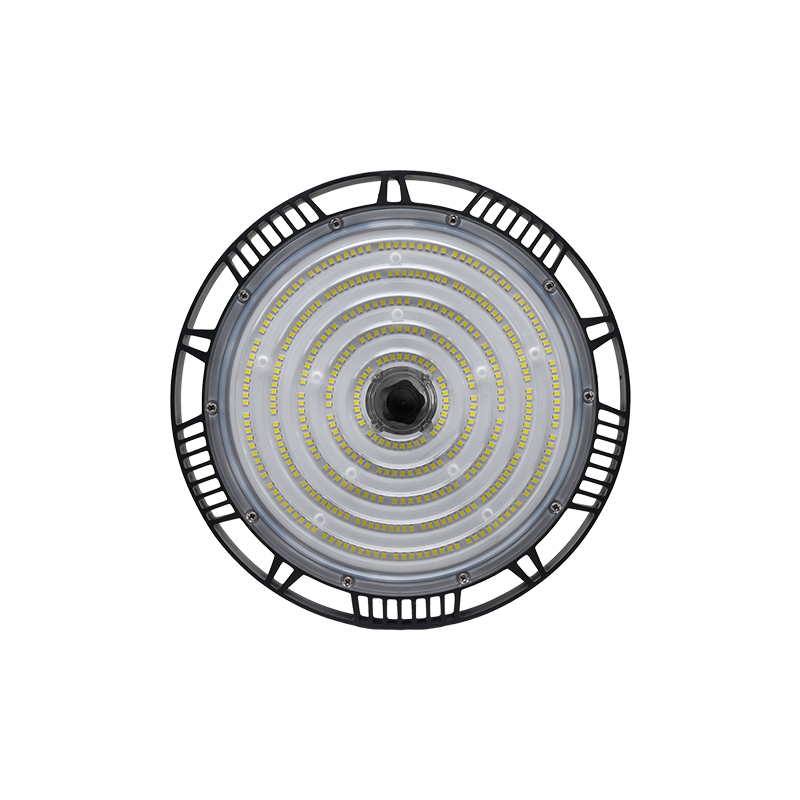

The HHB Series is a range of high-performance, professional-grade UFO LED High Bays engineered for demanding industrial and commercial environments. Featuring a modern design with an isolated driver and constructed from high-quality materials, these luminaires deliver outstanding efficiency and reliability. Each model in the range is equipped with high-intensity SMD 3030 LEDs, delivering an exceptional luminous efficacy of 190lm/W. With luminous outputs of up to 57 000 lumens and a consistent 5000K neutral white colour temperature, the HHB Series provides bright, clear illumination with a wide 90° beam angle for uniform light distribution across large areas. Built for durability, the HHB Series features an IP65-rated enclosure for protection against dust and water ingress, making it ideal for warehouses, factories, workshops, and other harsh environments. The fixtures support a wide input voltage range of 85 to 277V AC and include a secure suspension hook for safe and easy ceiling installation. Designed for long-term performance, the HHB Series is supported by a 5-year warranty, offering both reliability and peace of mind.

Specifications:

Function

Range

LED Power

100W

Lumen Output

19 000lm

Lumen Efficiency

190lm/W

LED Chip Type

SMD3030

Colour Temperature

5000K – Neutral White

Beam Angle

90°

Rated Voltage

220 – 240V

Voltage Range

85 – 277V

Frequency

50/60Hz

Power Factor

>0.9

Driver Type

DOB (Driver on Board)

CRI

>70

IP Rating

IP65

Material

Body: Die-Cast Aluminium

Lens: PC

Mounting Method

Suspension Hook and 30cm Chain (Included)

Integrated Cable Length

Africa: 50cm

Australasia: 150cm & Plug Top

Surge Protection

6kV

Installation Height

4m – 5m

Dimensions

Ø302 x 34mm

Weight

Africa: 1.35kg

Australasia: 1.85kg

Safety Rating

Warranty

Accessories:

  • Suspension Chain
