180 PIR Sensor (Outdoor)

SKU: PIR44

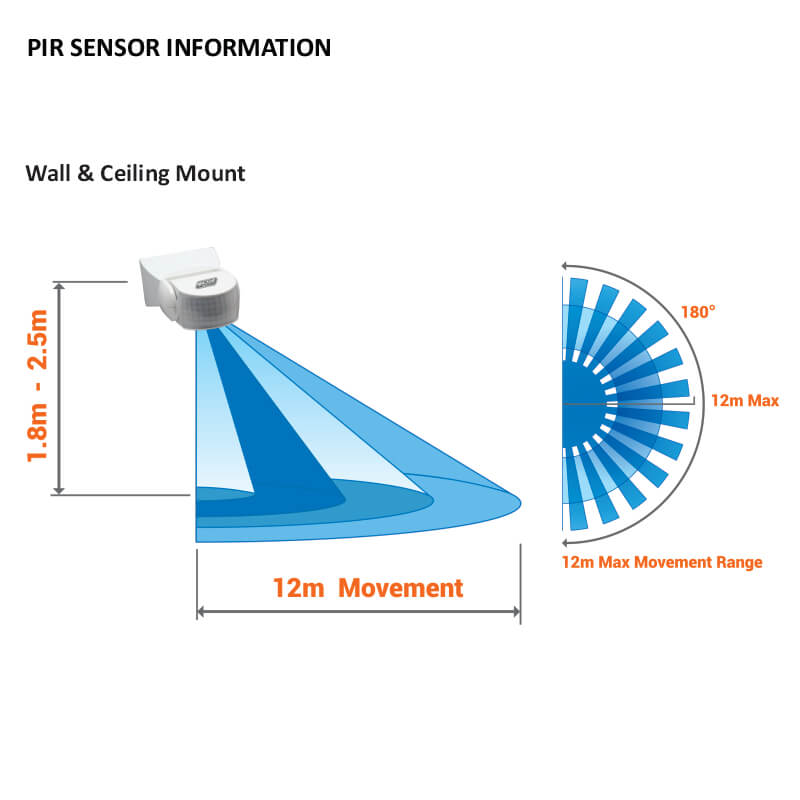

  • 180° Detection Field
  • Automatically turns on lights when motion and body heat is detected
  • 3 – 2000 LUX (Adjustable)
  • Installation height 1.8 – 2.5m
  • Identify day and night automatically
  • Time-delay is added continually
  • Detection distance 12m (max)
  • Power consumption 0.5W
  • Detection moving speed 0.6 – 1.5m/s

R 329.00 ex. VAT R 378.35 in. VAT
Out of Stock
Contact Us

Details

The PIR44 includes a sensitivity detector and an integrated circuit to save energy and offer practical functions. The PIR44 is designed to automatically turn lights on when motion and body heat is detected. The sensor uses the infrared energy from humans as a control-signal source; the load is activated as soon as one enters the detection field. It includes a day/night sensor to easily identify between day and night, and it is easy to install.

Application:
Major Tech PIR Sensor is ideal for homes, offices and hotels
The main applications include corridors, pathways, bathrooms and lobbies

Specifications:

Function Range
Detection Angle  180°
Detection Range  12 Meters
Detection Type PIR
Installation Height 1.8m - 2.5m
No. PIR Detectors  1 Detector
Protection Grade q IP65
Rated Load Energy Save  300W
Rated Load Incandescent 1200W
Time Delay  10 Seconds - 7 Minutes
Working Voltage  220 - 240V AC



Safety Rating

Warranty
