Compact 10A Day/Night Sensor

SKU: DNS11

  • Switches lights ON at dusk and OFF at dawn
  • Compatible with LED, incandescent, fluorescent, quartz and halogen lighting
  • 5 – 50 LUX (Adjustable)
  • 10A Rated Current
  • 220 – 240V AC
  • Compact Size
  • IP54 (Outdoor Installation)

R 195.00 ex. VAT R 224.25 in. VAT
Add to Cart

Details

The DNS11 Day-Night sensor automatically turns on or off lighting at dusk and dawn based on set ambient light levels of the sensor. It features adjustable lux settings and integrates easily into new or existing installations. Ideal for outdoor lighting, industrial, commercial, housing applications and security lighting, it enhances energy efficiency and security by activating lights on and off only when needed at night. Simple yet effective, the 10A rated current of the DNS11 enhances convenience and sustainability. Installation must be done by a qualified electrician.

Application:

  • Entrances
  • Gates
  • Offices
  • Warehouses

Specifications:

Function

Range

Ambient Light

5 to 50 Lux (Adjustable)

Voltage

220 to 240V AC

Power Frequency

50/60Hz

Rated Current

10A

Mounting

Walls and Poles

Working Temperature

-20°C to 40°C

Working Humidity

<93% RH

IP Rating

IP54 (Outdoor installation)

Standards

IEC 60669-1 / 60669-2-1

AS/NZS 60669.1 / 60669.2.1

Safety Rating

Warranty

Accessories:

  • Bracket
  • Screws
  • Cable Gland
  • Instruction Manual

Related

Products

10A Day/Night Control Switch
R 175.00 ex. VAT R 201.25 in. VAT

25A Day/Night Control Switch
R 219.00 ex. VAT R 251.85 in. VAT

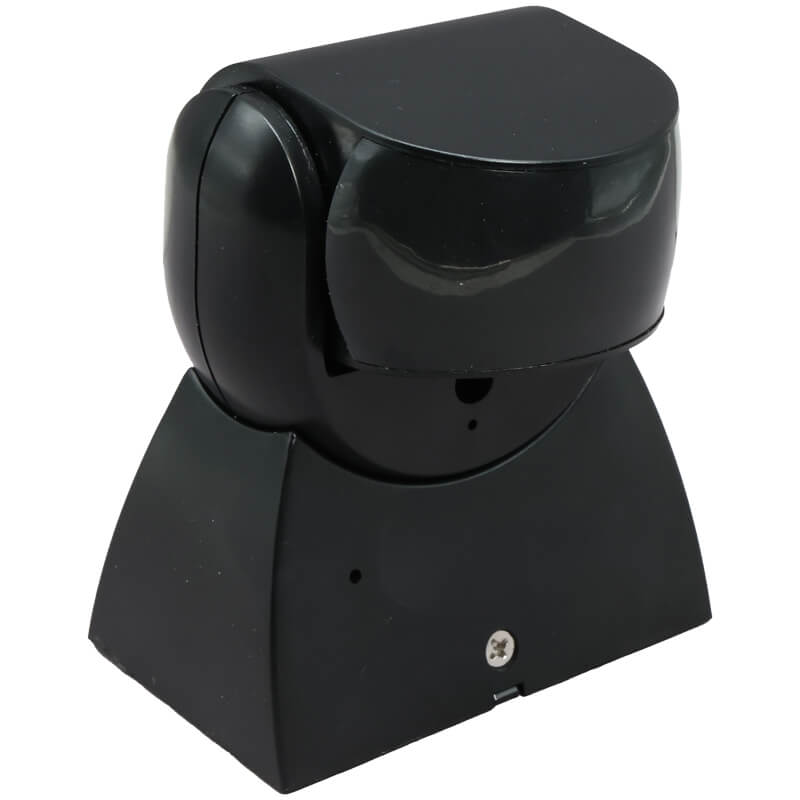

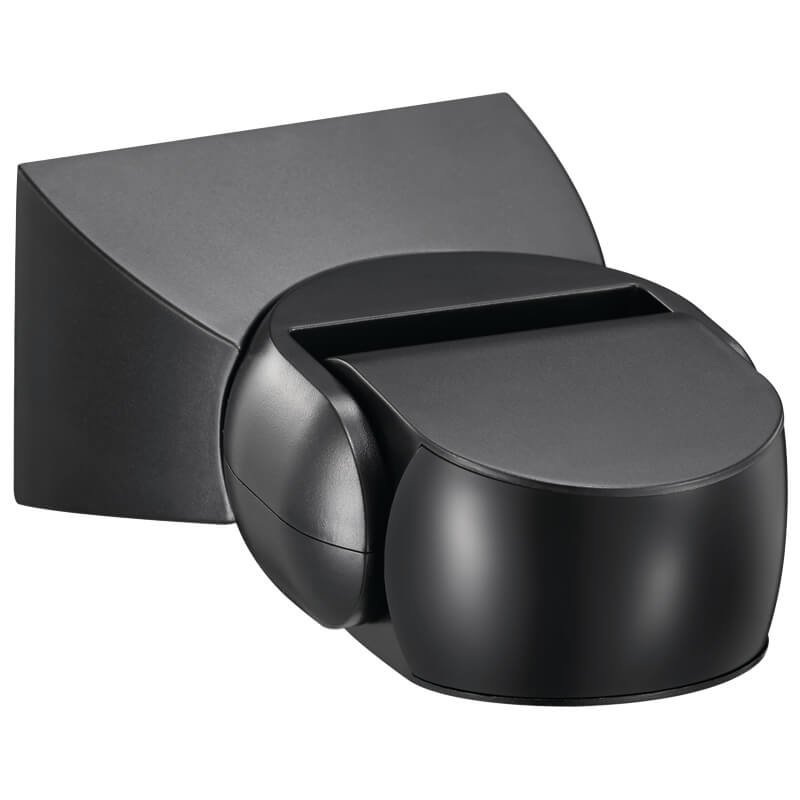

180° PIR Motion Sensor - IP65
R 329.00 ex. VAT R 378.35 in. VAT

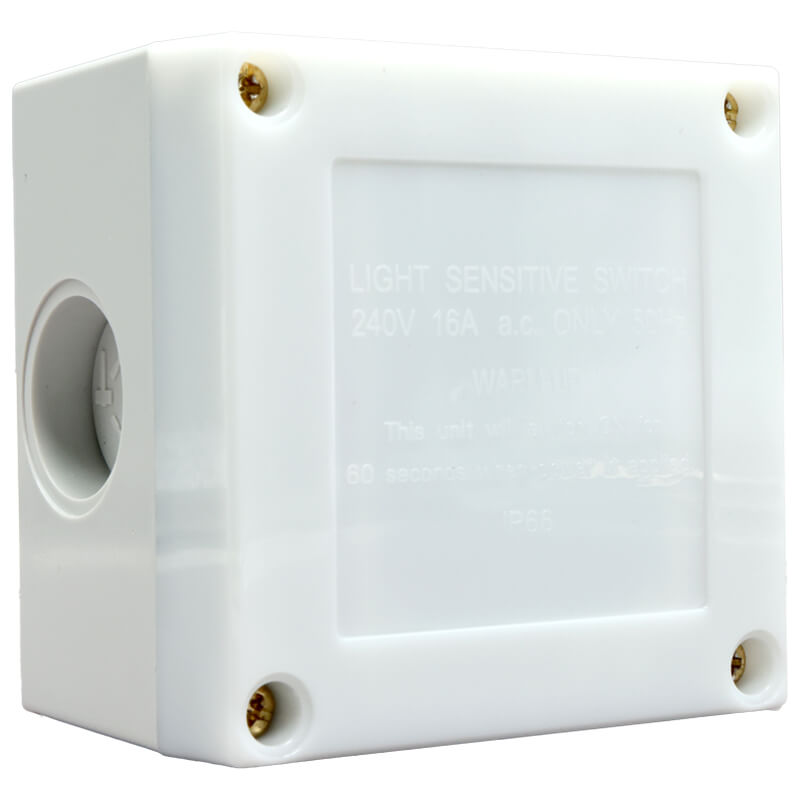

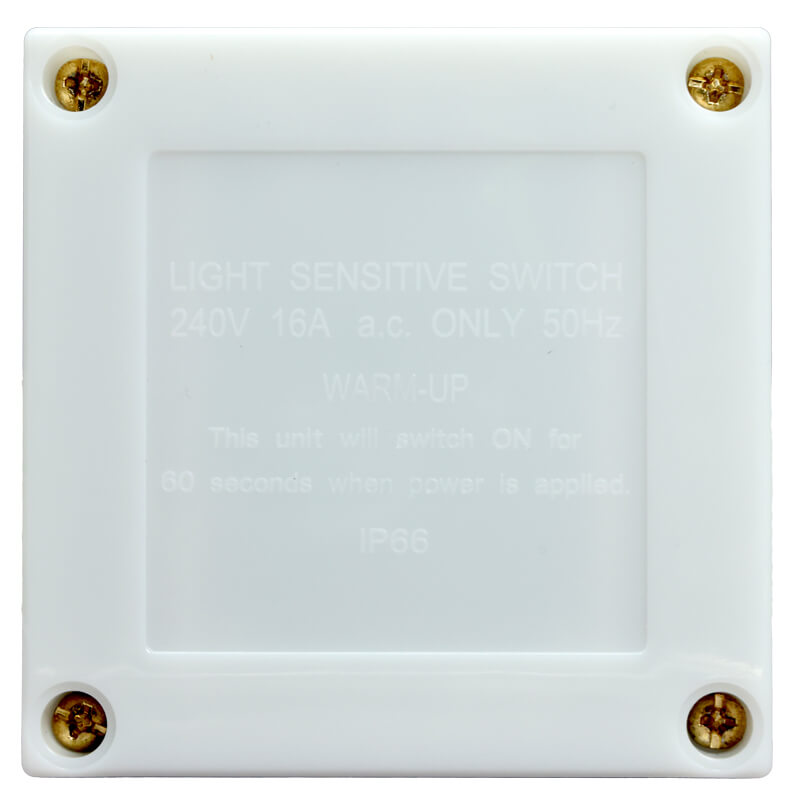

16A Day/Night Sensor with Timer
