100A AC/DC Clamp Meter
R1,891.75
Features :
- CAT III 300V and CAT II 600V
- Current measurement from 1mA
- Measures AC and DC current to 100 Amps
- Ø17mm Cable Clamp size
- 2000 count backlit LCD display
- Measurement of DC voltage and AC voltage up to 600V
- Capacitance to 20mF
- VFC – Variable Frequency Drive voltage value
- Microprocessor Zero adjustment
- NCV – Non-Contact Voltage Detector
- Continuity buzzer and Diode Test
- Data Hold function
- Auto Power Off

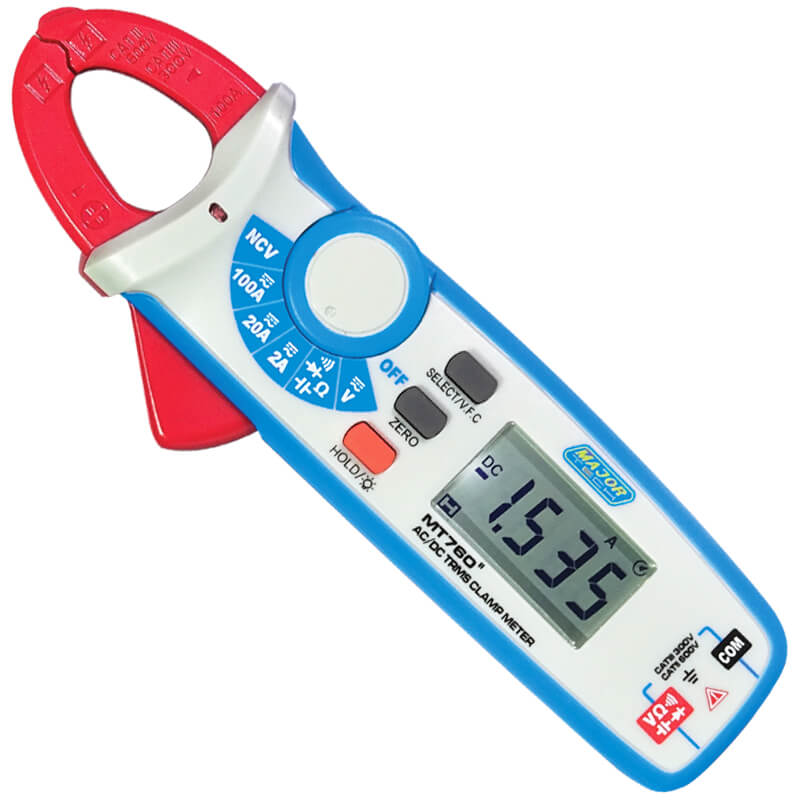

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non-Contact voltage detection. Housed in a modern double moulded rubber housing.
Accessories:

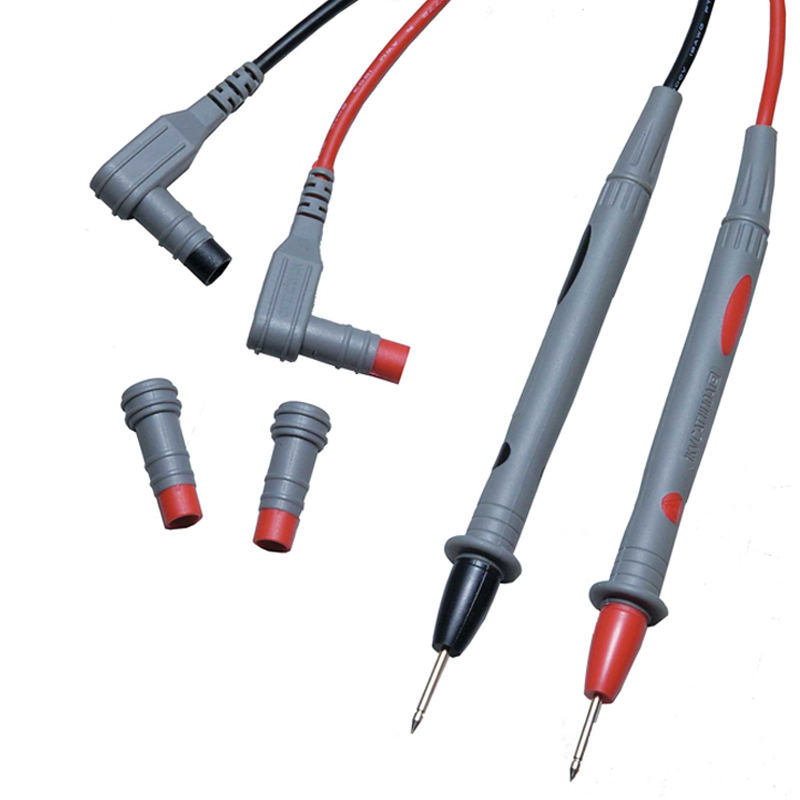

- Test Leads
- Carrying Case

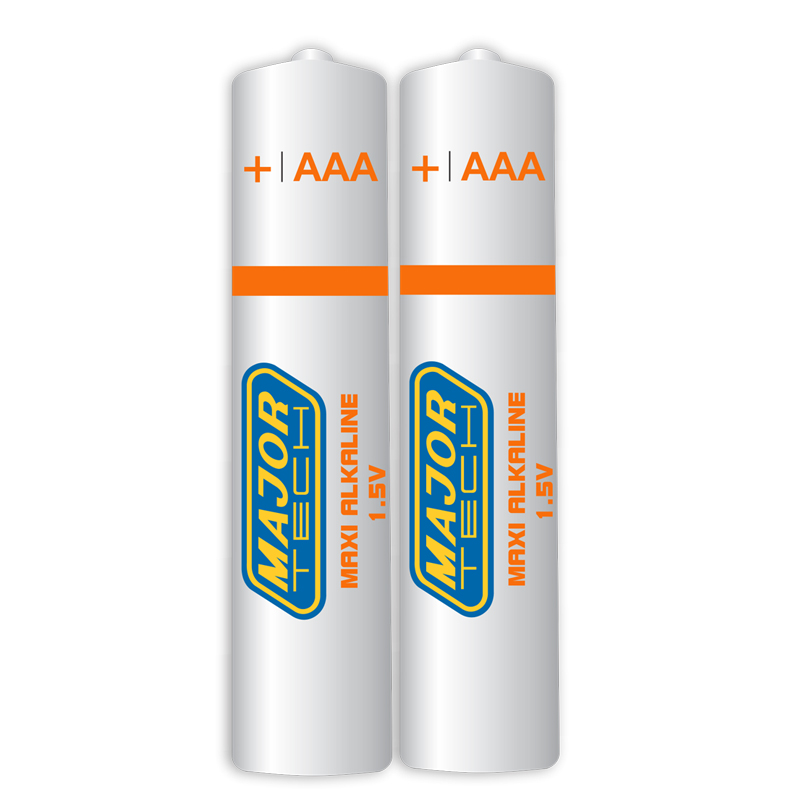

- 2 x AAA Batteries
- Instruction Manual
Downloads
Additional information
Jaw size | 17mm |
---|---|
DC Current | 2.000A – 100.0A |
DC Current resolution | 0.01mA |
DC Current accuracy | ±(2% + 8 Digits) |
AC Current | 2.000A – 100.0A |
AC current resolution | 1mA |
AC Current accuracy | ±(3% + 10 Digits) |
DC Voltage | 200.0mV – 600V |
DC Voltage resolution | 0.1mV |
DC Voltage accuracy | ±(0.7% + 5 Digits) |
AC Voltage | 2.000V – 600V |
AC Voltage resolution | 1mV |
AC voltage accuracy | ±(1% + 3 Digits) |
AC Voltage VFD | 200.0V – 600V |
AC Voltage VFD Resolution | 100mV |
AC Voltage VFD Accuracy | ±(4% + 3 Digits) |
Resistance | 200.0Ω – 20.00MΩ |
Resistance resolution | 0.1Ω |
Resistance accuracy | ±(1% + 2 Digits) |
True RMS Measurements | ACA, ACV |
AC Bandwidth | 50Hz to 400Hz |
Digital Display | 2000 |
Non-Contact Voltage (NCV) | Yes |
Over-range indication | Yes |
Input Impedance | >1MΩ DCV & >1MΩ VAC |
Min Max | Yes |
Data Hold | Yes |
Back Light | Yes |
Enclosure | Overmolded case |
Low battery indication | Yes |
Weight | 170g |
Dimensions | 175 x 60 x 33.5mm |
Safety Specs | IEC61010-1 CAT II 600V |
