360° / 180° Outdoor Microwave Sensor
R523.25
Features :
- 360° Detection Field
- 180° Detection Field
- Automatically turns on lights when motion and body heat is detected
- 3 – 2000 LUX (Adjustable)
- Installation height 1.5 – 3.5m (wall) / 2-10m (ceiling)
- Identify day and night automatically
- Time-delay and ambient light adjustment

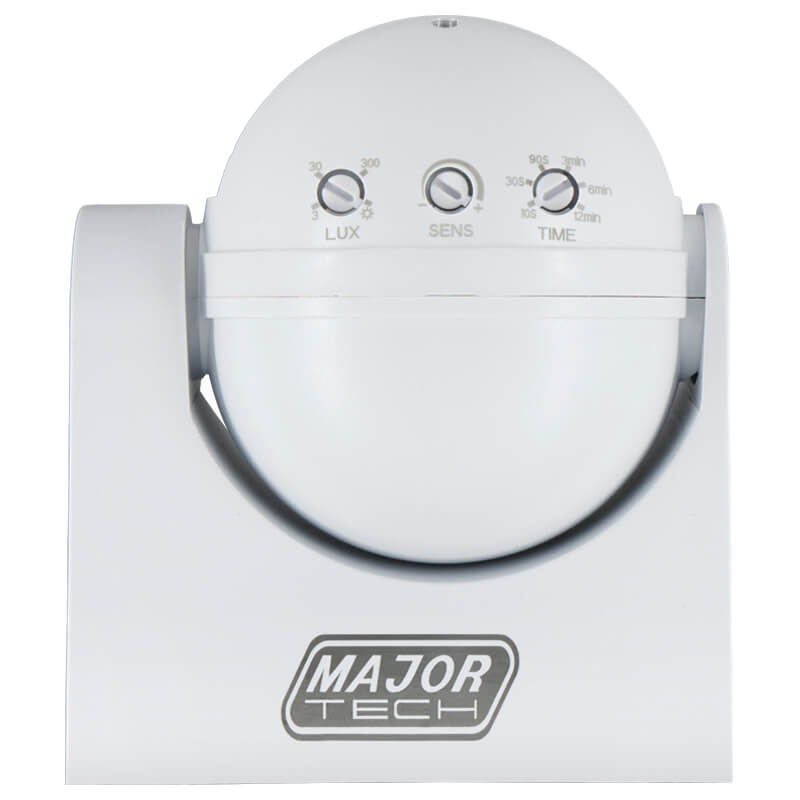

- SENS adjustable

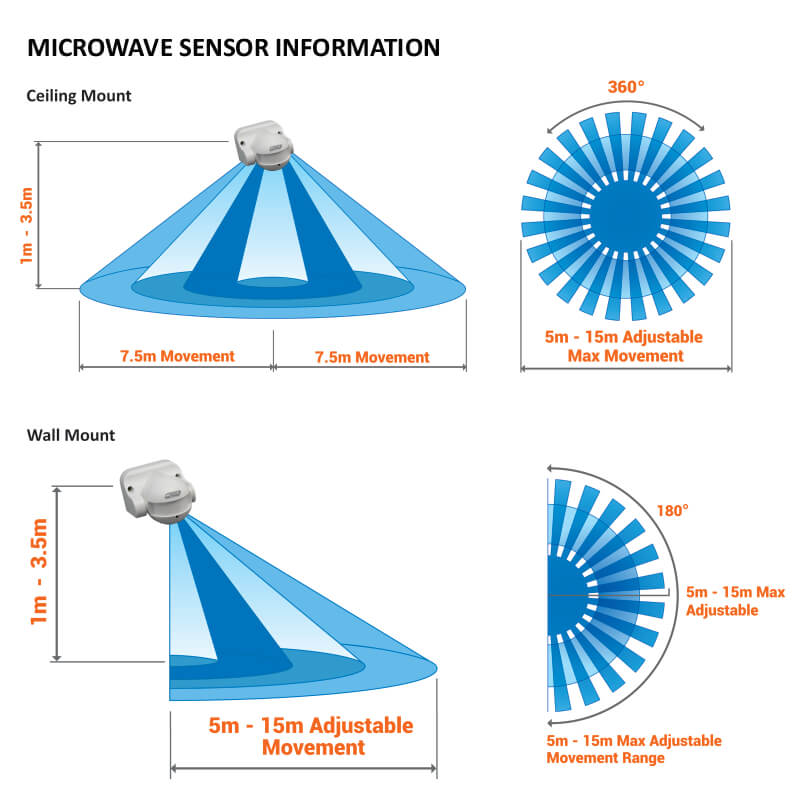

- Detection distance 5 – 15m (wall) (adjustable) / 2 -8m (ceiling) (radius / adjustable)
- Power consumption 0.9W
- Detection moving speed 0.6 – 1.5m/s
Description
The MS362 includes a sensitivity detector and an integrated circuit to save energy and offer practical functions. The MS362 is designed to automatically turn lights on when motion and body heat is detected. The sensor uses the infrared energy from humans as a control-signal source; the load is activated as soon as one enters the detection field. It includes a day/night sensor to easily identify between day and night, and it is easy to install. The MS362 is IP44 and can be used outdoor.
Application:
Ideal for home use and in educational and commercial properties
Detects through doors, glass panes or thin walls
Downloads
Additional information
Detection Range (180°) | 5m To 15m wall |
---|---|
Detection Range (360°) | 2m To 8m ceiling |
Detection Type | Microwave |
Installation Height (Ceiling) | 1.5m to 3.5m |
Installation Height (Wall) | 2m to 10m |
No. PIR Detectors | 5.8Ghz CW radar |

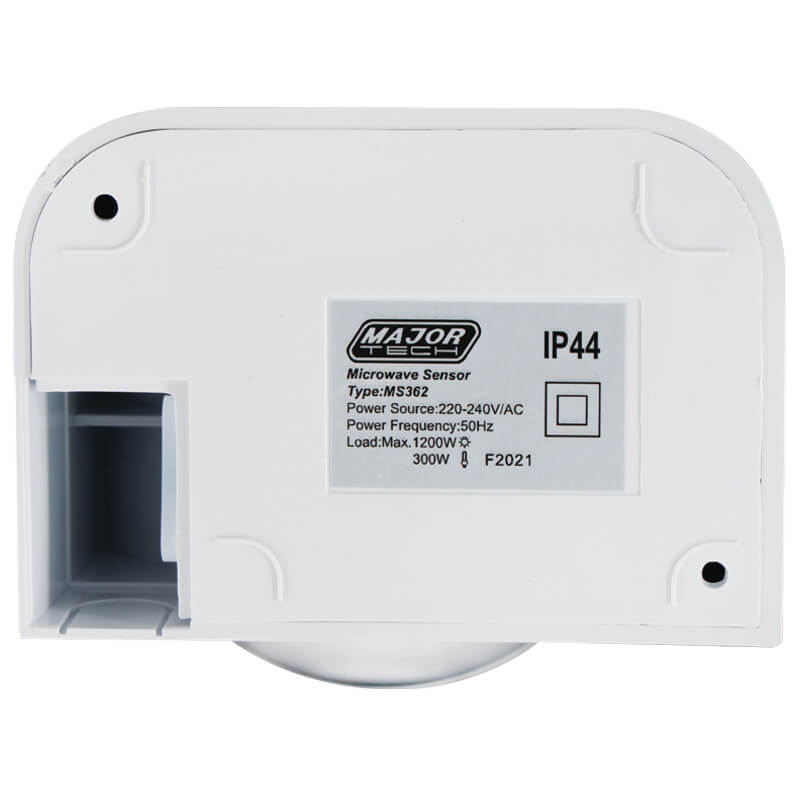

Protection Grade | IP44 |
Rated Load Energy Save | 300W |
Rated Load Incandescent | 1200W |
Time Delay | 10 seconds to 12 mintes |
Working Voltage | AC220 – 240V |
